Product Description:
The latest UVIS04 is a multifunctional 360 degree rotating 7" pipe inspection camera monitor system.
It is real 1080P full hd endoscopy camera. 7" hd color LCD screen.
Support up to 64GB SD card storage and replay;
One-button style sunshade and 5000mAh battery support 10hours working time make your outdoor working more easy and comfortable;
Besides,for high or low place,we prepared 2 kinds of camera, you can exchange conveniently according to your application.

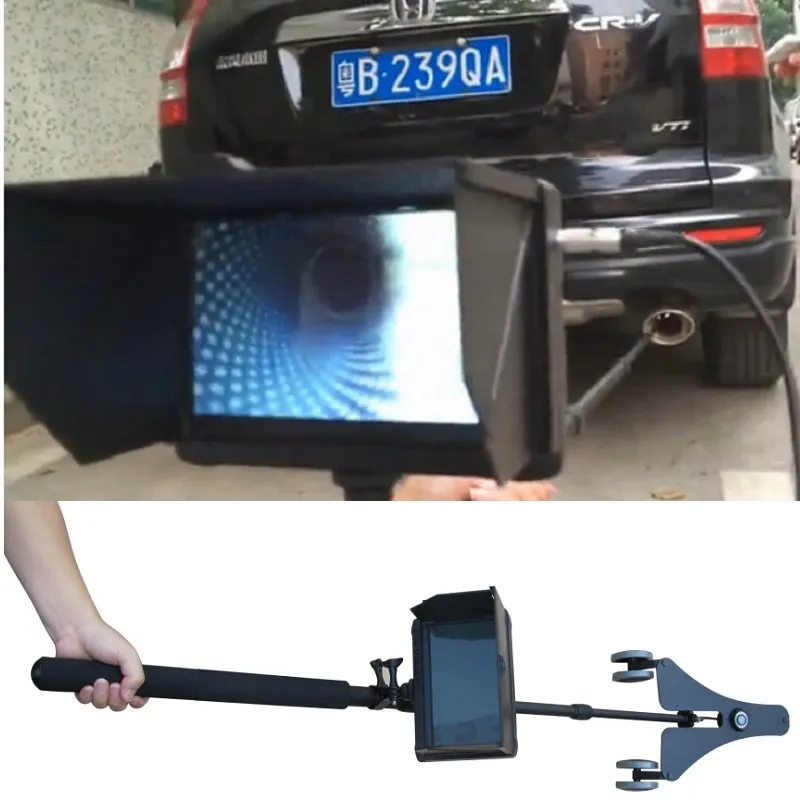

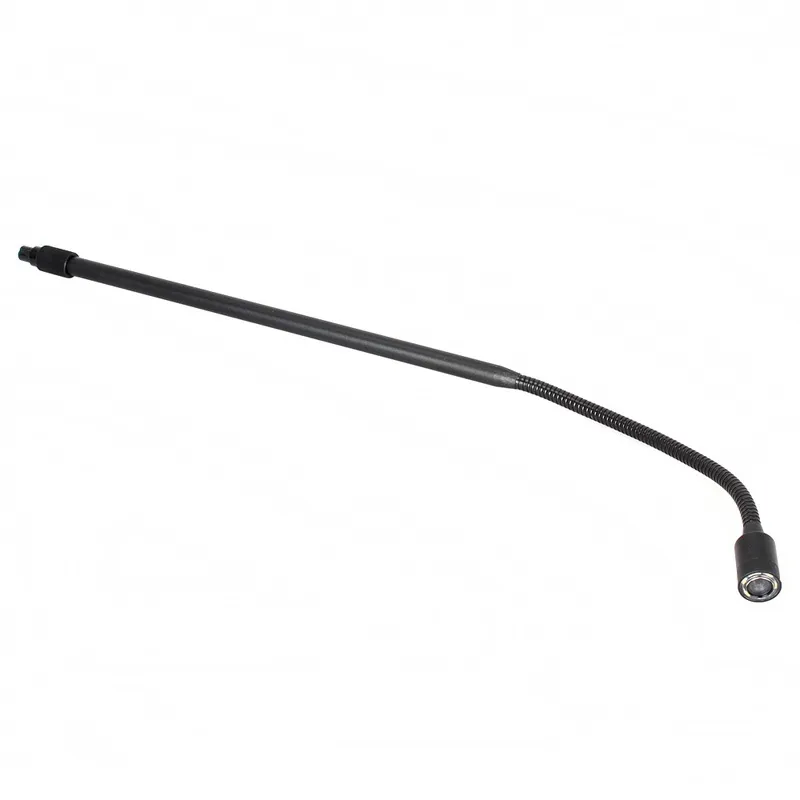

One camera comes with goose neck pipe, thus you can inspect Attic and loft, narrow pipe and so on;

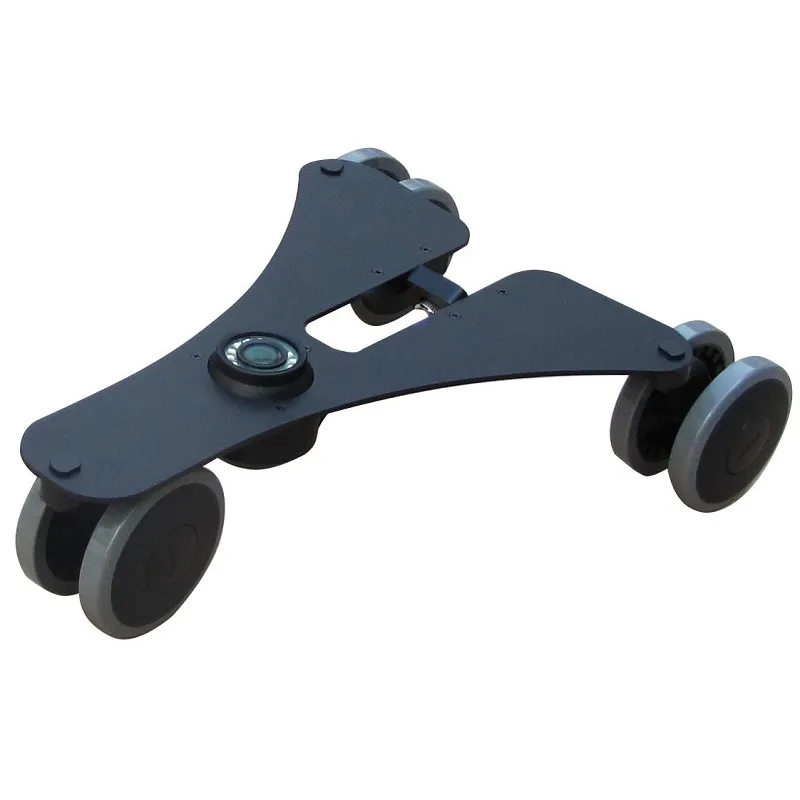

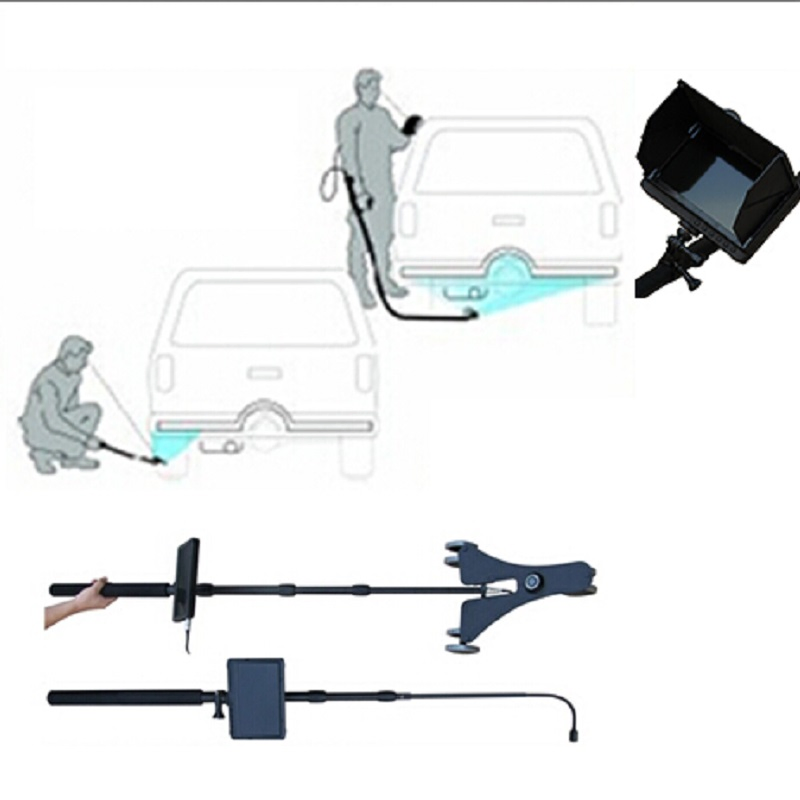

Another comes with 360 degree all Terrain wheels, thus you can easily probe under car, under boat and many other places...
Appication of UVIS04 1080P HD inspection Camera DVR System:
1) Industry machine gutter endoscopy camera: inspect Boiler, heat exchanger and inner parts;
2) Portable tube Imaging Systems for Petrochemical pipeline;
3) HD Gas pipeline inspection camera: to check out whether it is corrupted or rust.
4) 3.5Mega pixels digital full hd inspection camera for buildings and Bridges.
5) Home roof and pipe inspection camera dvr system.
Featurers of under vehicle inspection camera:
1080P HD mini under vehicle inspection camera DVR system

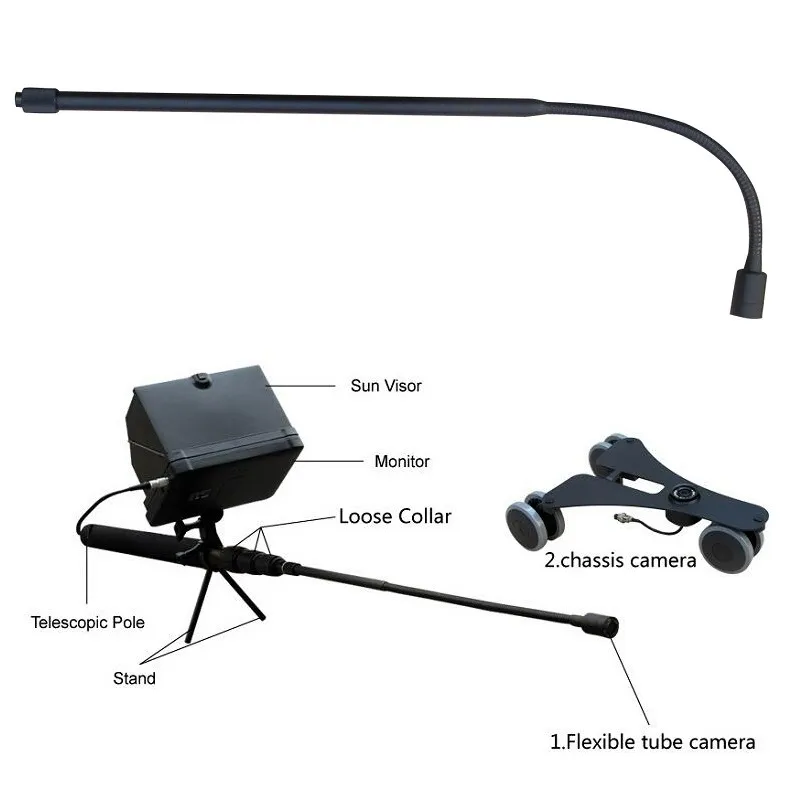

• Double HD digital camera for checking.

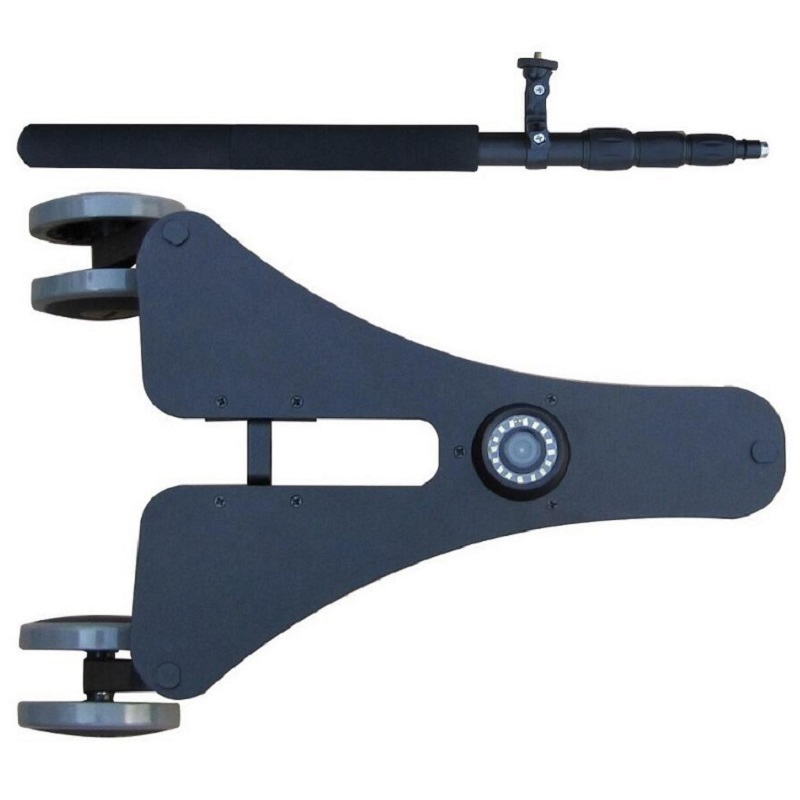

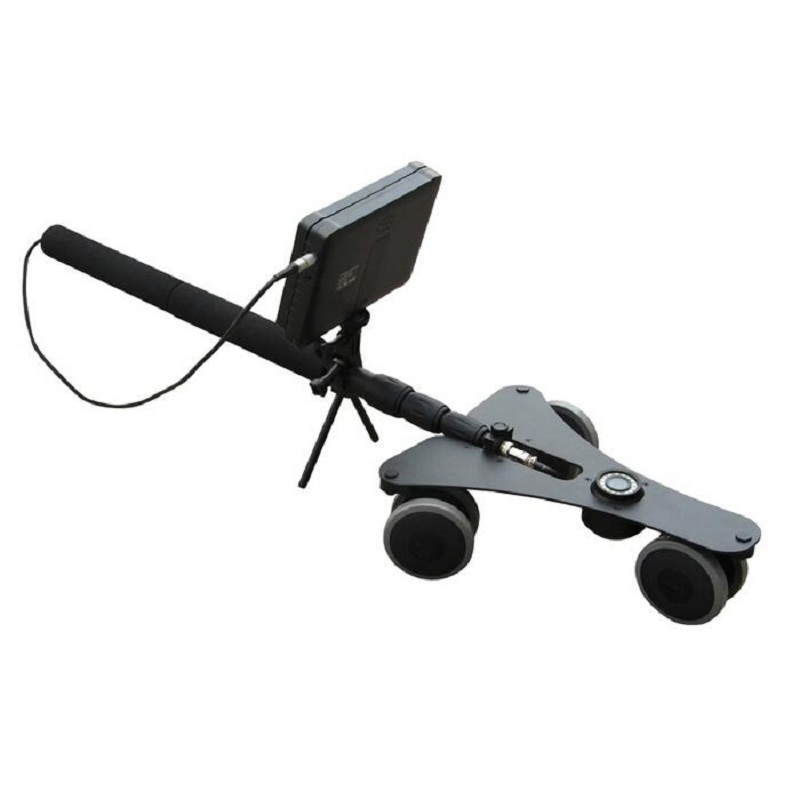

1st camera:5.0 Mega 16 LED camera with universal wheel .

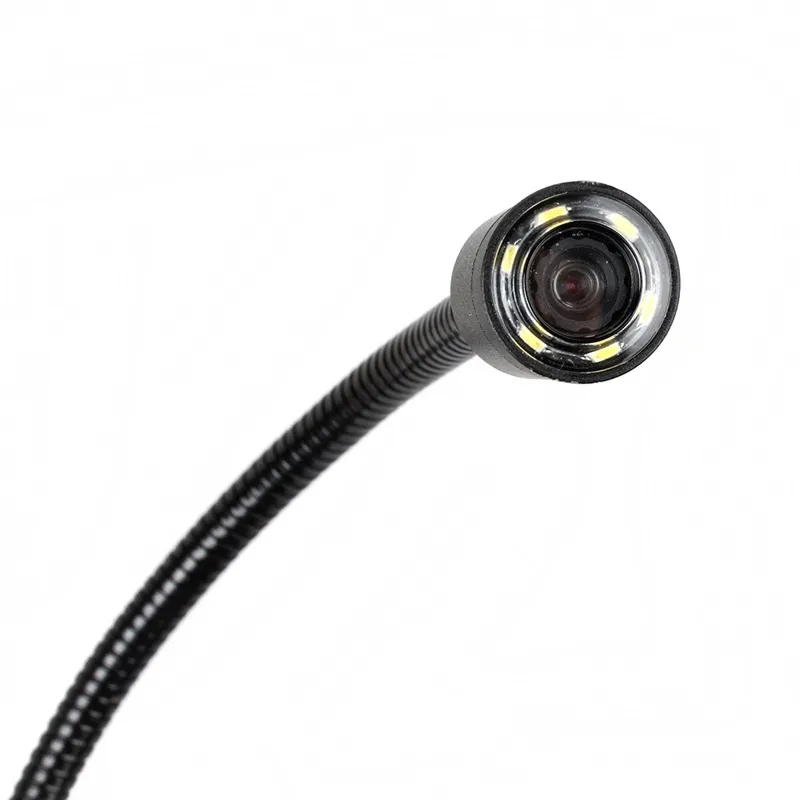

2nd camera:5.0 Mega 6 LED camera Φ18mm with 0.25m flexible pole.
• Universal wheel with wear-resisting tires.
• Reinforced design passed 10000 times crash testing.
• 7 inch monitor with sunshade.
• Support 64GB storage.
• Support HDMI video output.
• Support H.264 Video Compression Format.
• 5000mah li-battery, 8 hours working time.
• 2m Telescopic Survey Pole for all-purpose usage.
• Top grade aluminum allay case
• Excellent video and photo as iphone.
Specification of Camera:
Digital camera for wheels tray
Optical Element:1/2.5 CMOS Sensor SONY
Optical Total Pixels:5.0MP :3200(H)×1800(V)
CMOS Sensor Size:5.6mm(H)×3.14mm(V)
LED lamps:16 pcs LED lamps high luminance
Sensitivity:0.08Lux/F1.2
Lens & View angle:3.6mm F1.2 (H )120 °
HD Video Output Interface:FPD-LinkIII
Wheels on the tray:Omni-directional wheel
Dimension & Weight:37 x 46mm, 35g(only camera)
Cable(4 Cores High-Speed Line):Diameter:3.5mm Length:3 meters
Optical Element:1/3 CMOS Sensor
Optical Total Pixels:5.0 MP:3200(H)×1800(V)
CMOS Sensor Size:5.07mm(H)×3.38mm(V)
Specification of Monitor:
Telescopic Pole | Constriction Length:58cm | Unfolded Length:228cm |
| | HD Video Output | HDMI:1920* 1080;1280*720 |
| | Video Compression Format | H.264 |
| | Video Storage | AVI |
| | HD Digital Video Input Interface | FPD-LinkIII |
| | Audio Frequency Range | 20HZ-20KHz AAC |
| | Audio Compression Format | AAC |
| | Photo Format | JPG 5.0MP :3200(H)×1800(V) |
| | Storage External SD card | TF card 1GB-64GB(Optional) |
| | Operating System | Windows & Mac OS |
7" HD DVR Monitor | Port | USB 2.0 |
| | Language | Multiple |
| | Voltage | DC :7-24V USB DC:5V |
| | Current(Monitor mode) | 600 mA |
| | Current(Video mode) | 700 mA |
| | AC Adapter | DC 12V 1A |
| | Built-in Battery | Li-battery 5000mAh |
| | Record time | 8 hours |
| | Dimension: | 177mm x120mm x 20mm |
| | Sunshade | One-press open sunshade |

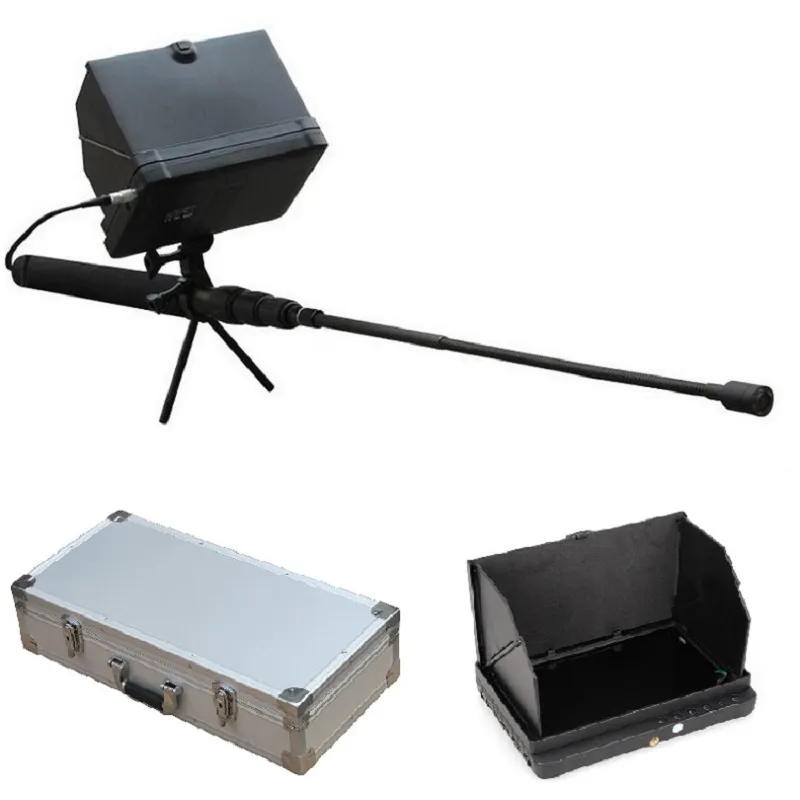

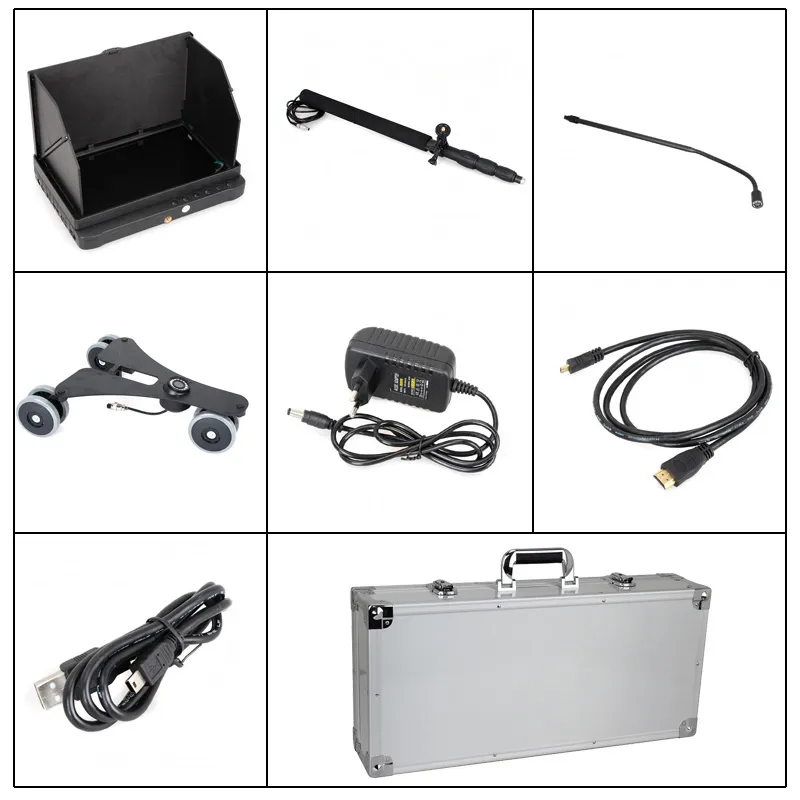

Packing List for UVIS04 under vehicle inspection camrea:
- 1080p hd camera with wheels x1
- Waterproof camera with goose neck pole x1
- 7" HD monitor x1
- 2m Pole x1
- AC adapter x1
- User manual x1
- Brushed aluminum case x1
