Vicam HD Waterproof 23mm Sewer Inspection Camera for Pipeline Inspection
23mm waterproof AHD sewer inspection camera 20mts portable industrial endoscope camera for sewer line detection with HD DVR Main Features:1. 23mm waterproof Analog HD waterproof camera head2. Camera diameter is 23mm X 53mm( spring part is about 70mm)3. 1/3 CMOS,1.3MP pixel AHD camera head 4. 10 i......
Send Inquiry
Product Description
23mm waterproof AHD sewer inspection camera 20mts portable industrial endoscope camera for sewer line detection with HD DVR
Main Features:
Packing List:
Specification for Sewer pipe camera
Part 1:
Part 2:
Part3:
Camera Skids :Diameter 40mm and 85mm
Different Camera head option
Main Features:
| 1. 23mm waterproof Analog HD waterproof camera head |
| 2. Camera diameter is 23mm X 53mm( spring part is about 70mm) |
| 3. 1/3 CMOS,1.3MP pixel AHD camera head |
| 4. 10 inch IPS lcd screen, 1280*720 resolution |
| 5. USB wireless keyboard to typewrite the words |
| 6. DVR control box with audio, video recording and photography function |
| 7. Digital meter counter function, error is less than 1% |
| 8. 16G flash disk storage device , easily transfer the video file to computer |
| 10. Camera video resolution is 720P ,AVI format |
| 11. Two size skid included(Dia.40mm and Dia.85mm) |
| 12. 1 year warranty for complete equipment |
Packing List:
| Item | Product | Quantity |
| 1 | Camera head | 1pcs |
| 2 | Cable reel | 1pcs |
| 3 | ABS engineer case with DVR recording function | 1pcs |
| 4 | Link cable | 2set |
| 5 | 8800mA li-ion battery pack | 1pcs |
| 6 | Charger adptor | 1pcs |
| 7 | 16G USD flash disk | 1pcs |
| 8 | Seal ring and fuse | 2pcs |
| 9 | Remote controller | 2pcs |
| 10 | Camera skid(Dia.40mm and Dia.85mm) | 1set |
| 11 | User manual | 1pcs |
Specification for Sewer pipe camera
Part 1:

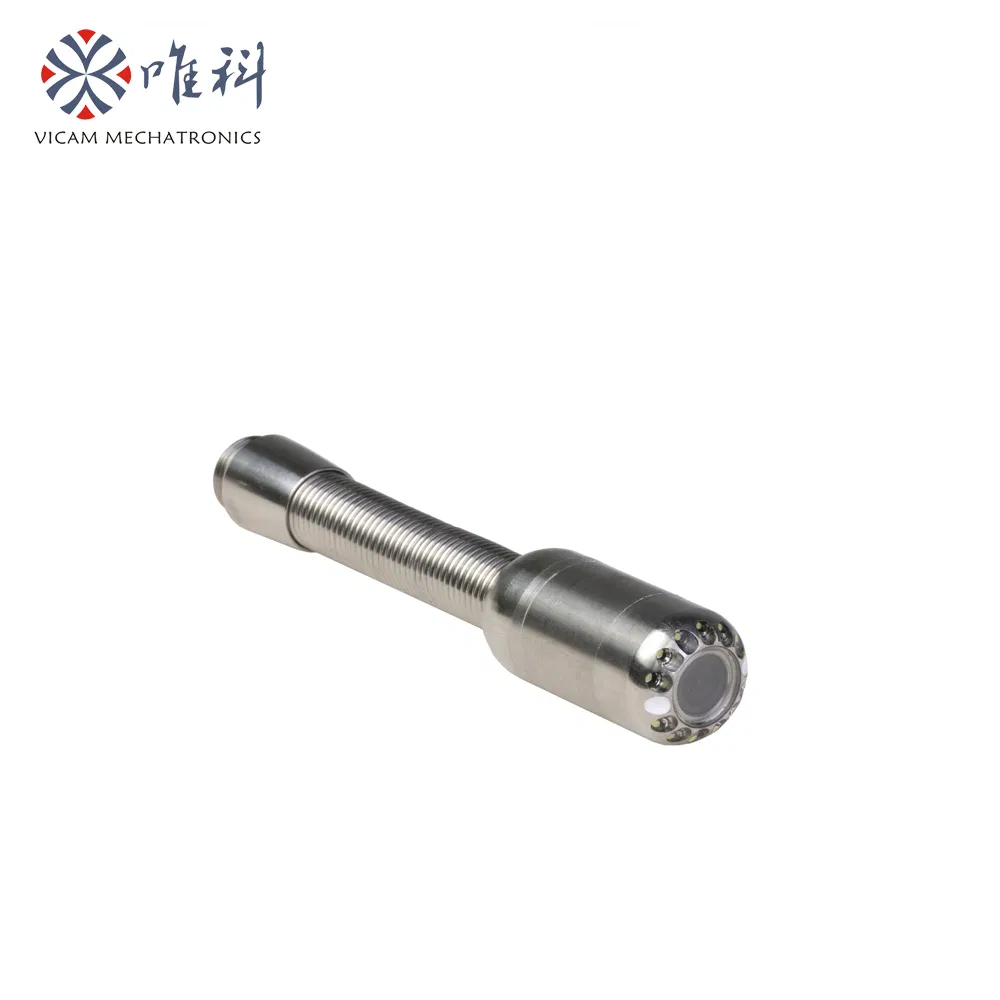

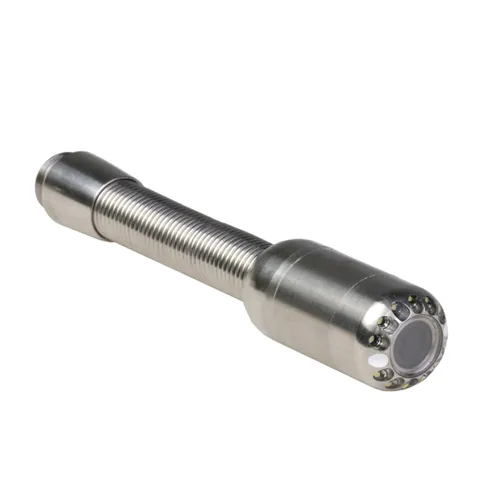

| 23mm waterproof AHD camera head |
| 1. Camera size Ø23mm x 53mm |
| 2. Waterproof IP68 |
| 3. View range 90 degree |
| 4. AHD module, sensor 1/3" CMOS ,1.3MP pixel |
| 5. Camera head casing material stainless steel |
| 6. Detachable with pins type connection to Cable Reel |
| 7. Lens window sapphire glass |
| 8. 12 pcs high intensity white LED |
| 9. Camera skid:Dia.40mm and 85mm |
Part 2:

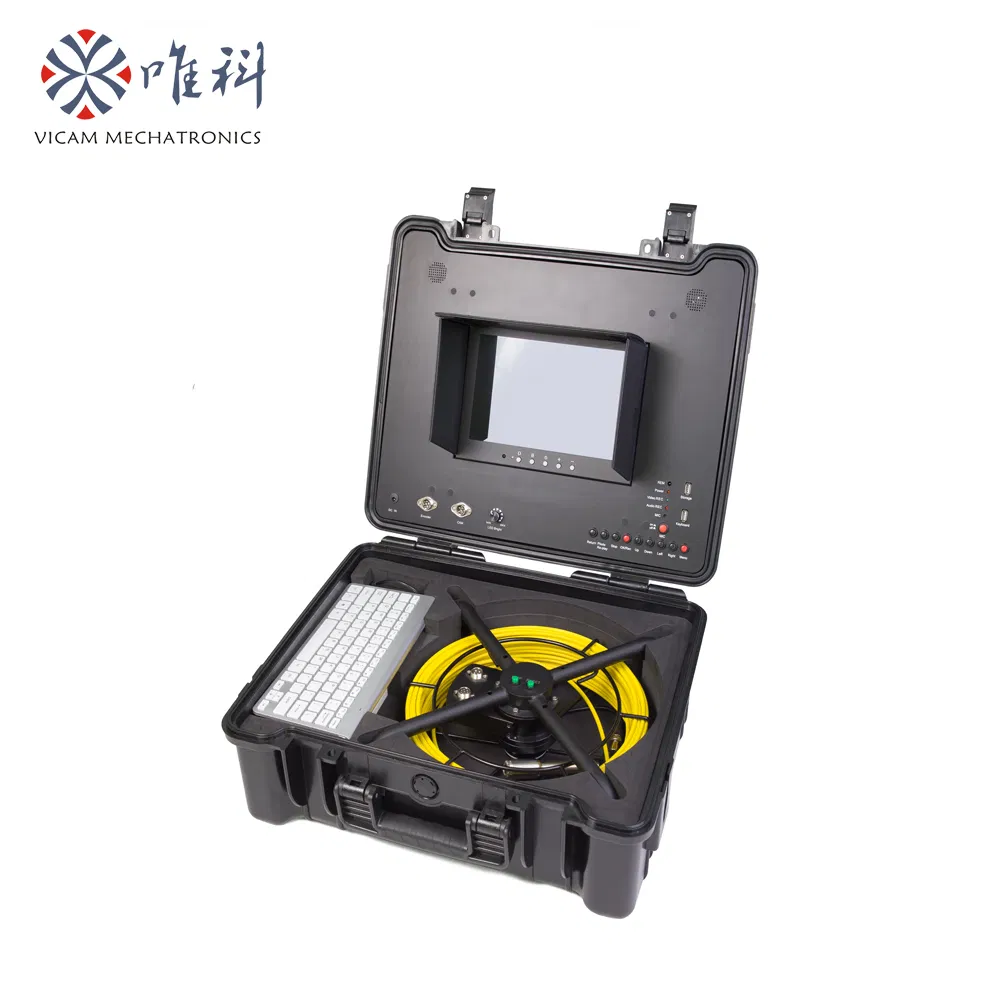

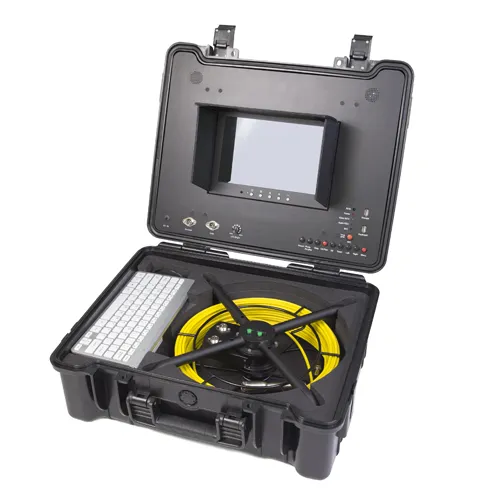

| ABS engineer case with DVR function |
| 1. There will be no control box, the control part will be on the monitor board |
| 2. Video input: AHD analog high-definition signal |
| 3. Video ,audio recording and taking photo function |
| 4. USB wireless keyboard real time typewriting |
| 5. USB port to connect storage device ( 16G USB flash disk) |
| 6. HD DVR SYSTEM with recording 720P video |
| 7. 8800mA rechargeable Li-ion Battery Pack |
| 8. Zoom function inclueded. (Up and down button) |
| 9. Case size is 52x43x20cm |

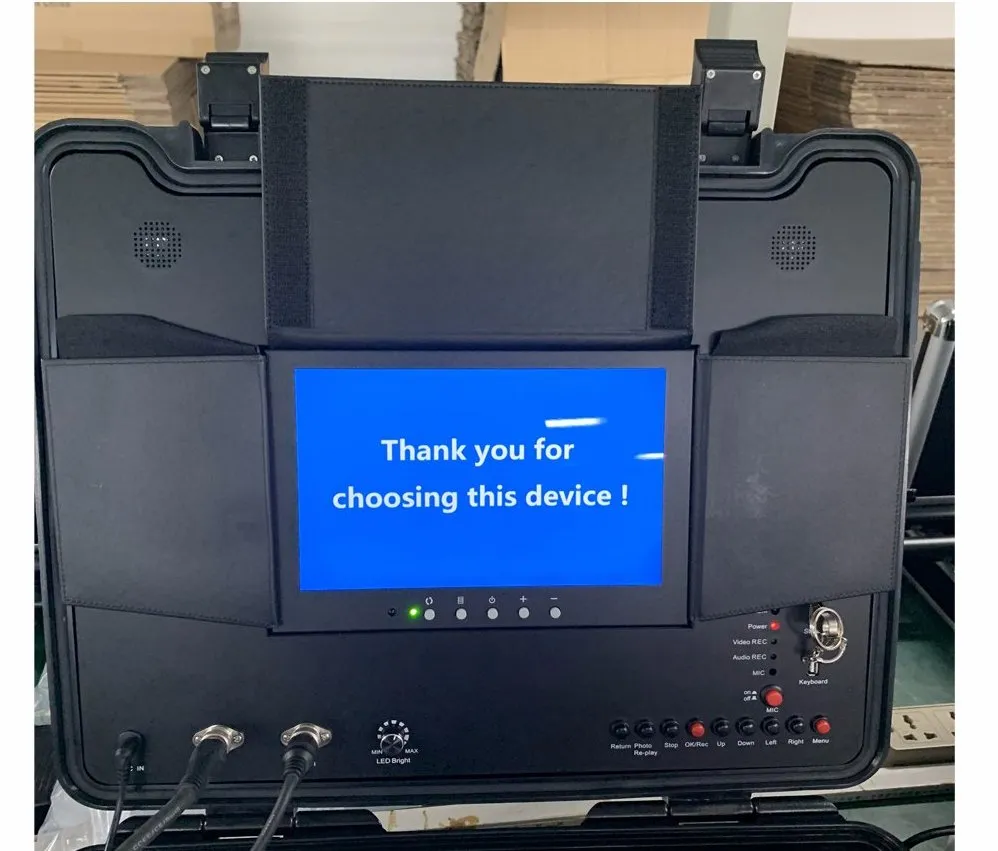

| 10 inch LCD IPS screen |
| 1. Brightness:400cd/m2 |
| 2. 16:9 display model |
| 3. Resolution:1280*720 |
| 4. Sun shield and remote control included |
Part3:

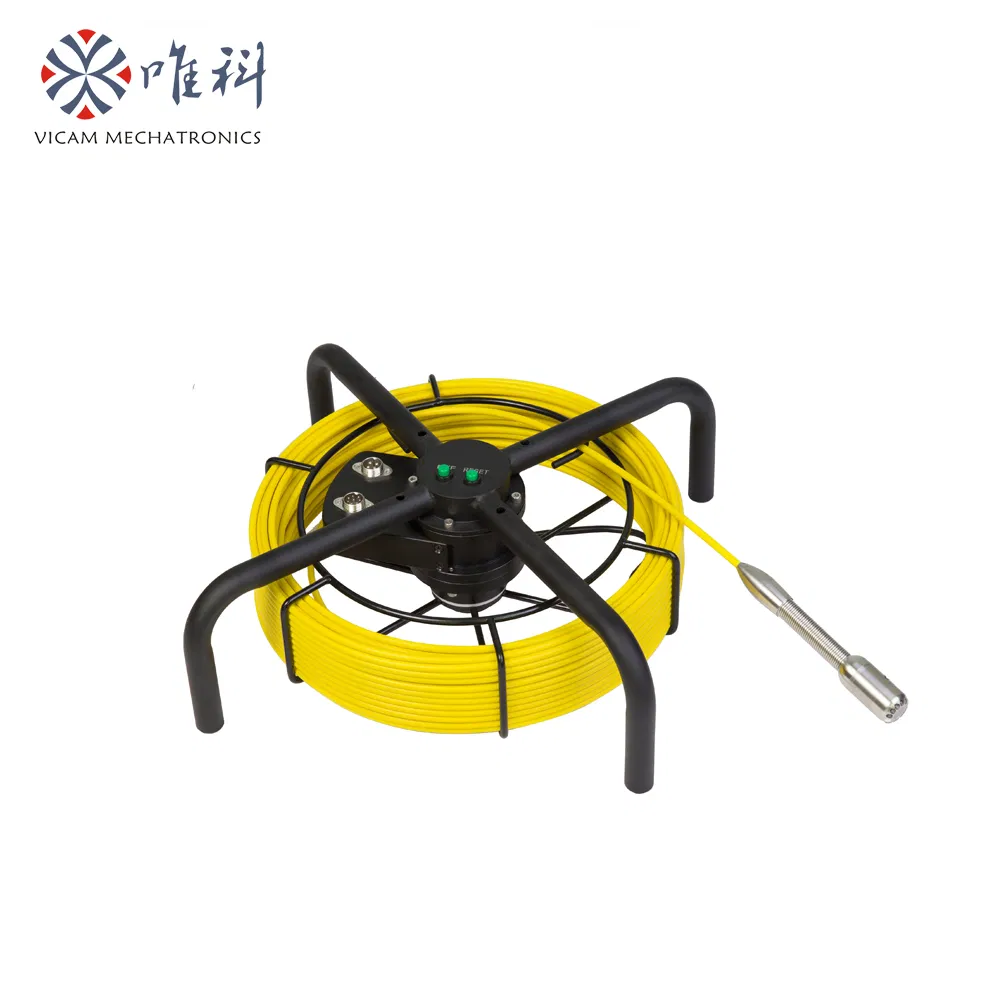

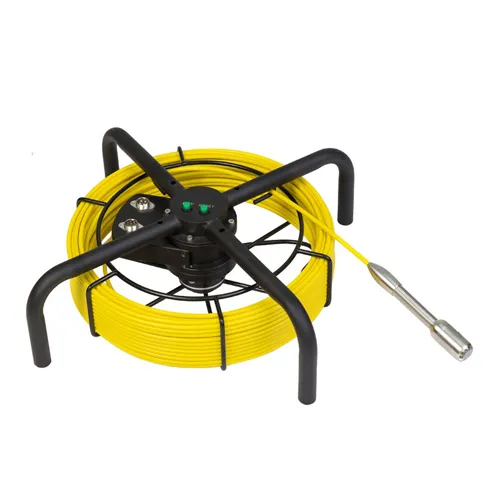

| Cable Reel with Digital meter counter |
| 1. It doesn't need to hold the cable reel by hand, it can be inside the box or on the ground |
| 2. Fibreglass push rod cable |
| 3. Cable reel diamter is 5.2mm |
| 4. Cable length from 20m to 40m option |
| 5. Meter counter on the cable reel (Feet /Meter switch) |
| 6. Digital meter counter function, error is less than 1% |

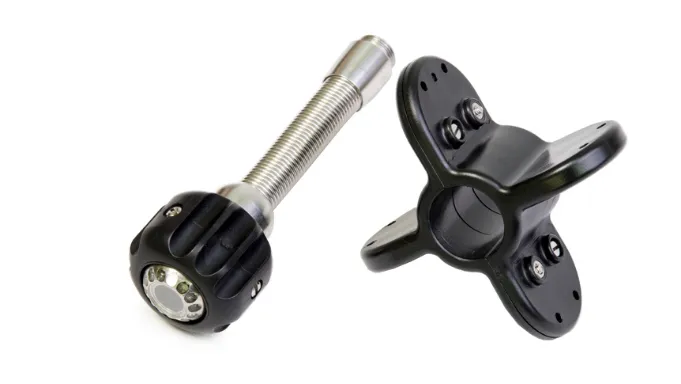

Camera Skids :Diameter 40mm and 85mm

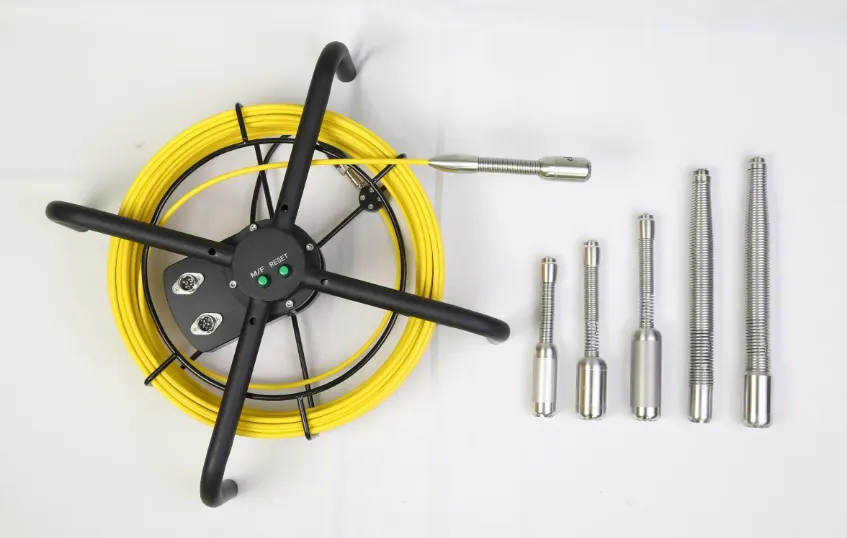

Different Camera head option
