Wap Camer Hdr Dual Lens Camera
1. Product feature·1/3" Industrial Dual Lens 1.3MP /3MP HD dynamic image sensor·B/W 40CM-1M, color 40cm to infinity clear imaging·B/W 30 frames, color 25 frames Max without shadow·0.1Lux ultra low light effect·B/W 1.5W, color 1W ultra-low p......
Send Inquiry
Product Description
1. Product feature
·1/3" Industrial Dual Lens 1.3MP /3MP HD dynamic image sensor
·B/W 40CM-1M, color 40cm to infinity clear imaging
·B/W 30 frames, color 25 frames Max without shadow
·0.1Lux ultra low light effect
·B/W 1.5W, color 1W ultra-low power consumption
·-30ºC~+70ºC Wide temperature range and stable operation
·Professional USB-IF WHQL RoHS CE(4KV/8KV)certification
·USB2.0 High speed transmission/ USB3.0 compatible with USB2.0 devices
·The description information such as device name and manufacturer can be customized
·UVC architecture, compatible with Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) OS
·3-year warranty &30,000 hours MTBF
·Zn-Mg alloy housing for high strength collision protection
·Basic:CPU 1.7GHZ 512MB storage 40GB hard disk XP SP2 system
2. SPECIFICATIONS()
·1/3" Industrial Dual Lens 1.3MP /3MP HD dynamic image sensor
·B/W 40CM-1M, color 40cm to infinity clear imaging
·B/W 30 frames, color 25 frames Max without shadow
·0.1Lux ultra low light effect
·B/W 1.5W, color 1W ultra-low power consumption
·-30ºC~+70ºC Wide temperature range and stable operation
·Professional USB-IF WHQL RoHS CE(4KV/8KV)certification
·USB2.0 High speed transmission/ USB3.0 compatible with USB2.0 devices
·The description information such as device name and manufacturer can be customized
·UVC architecture, compatible with Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) OS
·3-year warranty &30,000 hours MTBF
·Zn-Mg alloy housing for high strength collision protection
·Basic:CPU 1.7GHZ 512MB storage 40GB hard disk XP SP2 system
2. SPECIFICATIONS()
| Signal | 1.3M B/W | 3M HDR | REMARKS | ||||
| Scanning System() | Progressive scan | ||||||
| Scanning Frequency(H)() | 30HZ | 25HZ | |||||
| Scanning Frequency(V) | 50HZ | 50HZ | |||||
| Image Sensor() | 1/3" CMOS | 1/3" CMOS | Aptina | ||||
| Effective Pixels() | 1280X960 | 2048X1536 | |||||
| Pixel size() | 3.75umX3.75um | 2.2umx2.2um | |||||
| Image sensor Data output() | Raw Data 10bits | ||||||
| Video output() | MJPG/YUY2 | ||||||
| Maximum Frame Rates () | 1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps | 2048x1536 at15fps 1920x1080 at 25fps 1600x1200 at 25fps 1280x1024 at 25fps 1280x960 at 25fps 1280x720 at 25fps 1024x768 at 25fps 800x600 at 25fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps | MJPG | ||||
| Maximum Frame Rates () | 1280x960 at 9fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps | 2048x1536 at 3fps 1920x1080 at 4fps 1600x1200 at 5fps 1280x1024 at 7fps 1280x960 at 7fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps | YUY2 | ||||
| SNR max() | ≥44dB | ≥40dB | |||||
| Dynamic range() | ≥83.5dB | ≥100dB | |||||
| Min. Illumination() | ≥0.01LUX at F1.2 | ≥0.1LUX at F1.2 | NO LED | ||||
| Digital interface() | 5-pin 1.25mm USB2.0 | ||||||
| Transfer rates() | 480Mb/S | ||||||
| Power requirements() | 5V±5% | ||||||
| Power Consumption () | NO LED | Max 0.6W | Max 1.4W | ||||
| IR-LED | Max 1.5W | ||||||
| IR-LED Wavelength() | 850nm | ||||||
| Dimensions(PCBA)(PCBA)mm | 28x38 ±5% | ||||||
| Weight() | 52g±5% | ||||||
| Operating temperature(ºC)() | -30~70 ºC | ||||||
| Storage temperature(ºC)(&) | -40~80 ºC/0~90RH | ||||||
| Compliance() | USB-IF WHQL CE RoHS | ||||||
| Lens Mount() | M12(f=3.5MM) | ||||||
| Lens view () | M12/90° | ||||||
| Warranty() | 3 years | ||||||
| OS() | Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) | ||||||
| USB CONN(USB) | 1 | 5V | USB POWER | 500mA max | |||
| 2 | DM | - | D- | ||||
| 3 | DP | - | D+ | ||||
| 4 | GND | - | DGND | ||||
| 5 | COVER | - | shield | ||||
Sensor Dimension IR-Filter wavelength
Color-IR Filter wavelength
4. Product & USB Dimension
5. Viewing Angle
300W Angle (Color)
130W Angle (B/W)
6.Cover proportion(mm)

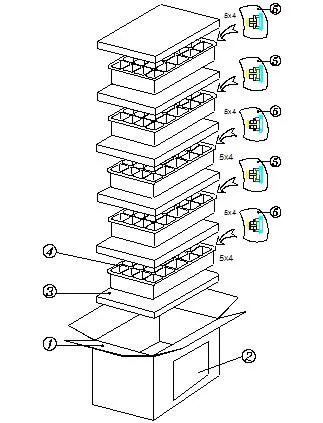

7. Modes of packing
130W Angle (B/W)
6.Cover proportion(mm)
| NO. | component | Proportion | NOTE |
| 1 | ZN | 96.2000% | |
| 2 | CU | 0.0160% | |
| 3 | Aluminum | 3.7000% | |
| 4 | Fe | 0.0030% | |
| 5 | Pb | 0.0025% | |
| 6 | Sn | 0.0004% | |
| 7 | Mg | 0.0030% |

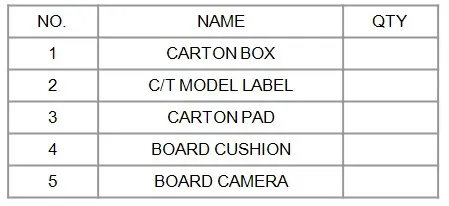

7. Modes of packing
