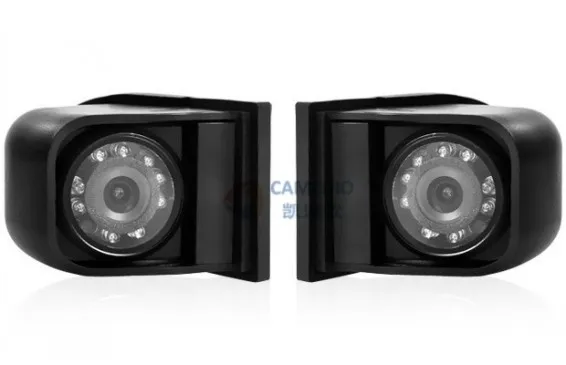

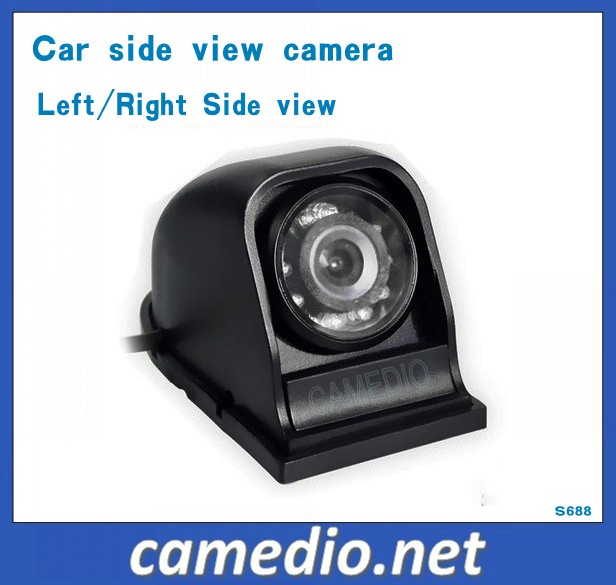

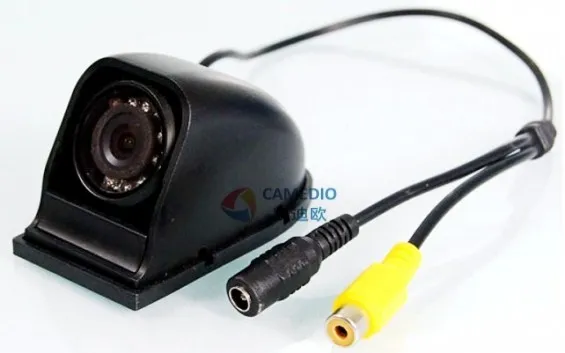

Waterproof IR Night Vision Car Side View Camera
Car side view camera, night vision side view camera Image feature:Sharp CCD/Song CCD optional TV System:NTSC/PAL Image area:5.961mm×4.276mm Effective pixels:N:510(H)x492(V)/P:500(H)x582(V) Specification:-Images Sensors:Sharp CCD-TV System:PAL/NTSC-Effective Pixels:500X582/510X492-Sensing......
Send Inquiry
Product Description
Car side view camera, night vision side view camera
Image feature:Sharp CCD/Song CCD optional
TV System:NTSC/PAL
Image area:5.961mm×4.276mm
Effective pixels:N:510(H)x492(V)/P:500(H)x582(V)
Specification:
-Images Sensors:Sharp CCD
-TV System:PAL/NTSC
-Effective Pixels:500X582/510X492
-Sensing Area(mm):4.9X3.7
-Resolution(TV Lines): 420TVL
-Min.illumination:0LUX
-Video Output: 1Vp-p,75 Ohm
-BLC : Auto
-S/N ratio : Better than 48dB
-Lens: F=2.8mm
-Lens Angle(Deg.) : 120 degree
-IR LED:9 PCS
-Ip rating: Ip67
-Current Consumption(mA) :300mA
-Power Supply(DC): 12V(24V optional)
-Operating Temperature(Deg.C): -20~+70(RH95%Max.)
-Storage Temperature(Deg.C) : -40~+80(RH95%Max.)
-Dimension: 83*42*50mm
50pcs/carton
Specification:
| Image feature:Song CCD |
| TV System:NTSC/PAL |
| Image area:5.961mm×4.276mm |
| Effective pixels:N:510(H)x492(V)/P:500(H)x582(V) |
| Horizontal Resolution(TV lines):480 TV lines |
| View angel:2.8mm 120° |
| water-proof rating:IP67-IP68 |
| minimum Illumination:0 Lux with IR |
| IR LED:9 PCS |
| Electronic Shutter Time:1/50(1/60)-1/100,000sec. |
| Scanning System:2:1 Interlace |
| Sync System:Internal |
| S/N ratio:>48dB |
| Video Output:1.0Vp-p,75ohm |
| Power Source:DC12V±10% |
| BLC:automatism |
| AGC:automatism |
| White Balance:automatism |
| Operation Temperature:-20ºC-5ºC(RH95%Max.) |
| Storage Temperature:-40ºC |
