Wholesale 5mega Pixel USB Camera CMOS HD Video Conference Web Camera Module

Product Description

Wholesale 5mega Pixel USB Camera CMOS HD Video Conference Web Camera Module:

1. 1/4 inch OV5648 Cmos Camera Module

2. High quality digital MIC, single or dual channel is optional

3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.

4. USB Camera Module with 69 degree

5. 32*32mm mini micro USB board camera

Specification:

Items	Parameters
SENSOR	OmmniVision-OV5648
Lens Size	1/4"
Most Effective Pixels	2592 x 1944
Data Format	MJPG/YUY2
Pixel Size	1.4 µm x 1.4 µm
Dynamic Range	67 dB @ 8x gain
Lens	FOV :D= 69°
	Optical length :10.1MM
	lens construction:4E=IR
	mount :M12*P0.5mm
Focusing	Fixed focus
Frame Rate	30fps
Auto Control	Saturation,Contrast,Acutance,White balance,Exposure
Audio	High quality digital MIC, single or dual channel is optional
Voltage	DC 5V
Working Current	MAX 250mA
USB Connector	USB2.0
Storage Temperature	-20°C to +70°C
Working Temperature	Change with environmental temperature
System Compatibility	1,Windows XP(SP2,SP3),Vista ,7,8,10
System Compatibility	2,Linux or OS with UVC driver

0022 Lens Option

Model No.   7030CSP 1611 6021-G1

Optical Format        1/4" 1/4" 1.4"

EFL    3.3 2.42 2.2

BEL                            1.13 4.38

Construction 4E+IR            4P+IR 4G

F/No 2.8             2.0             2.4

FOV   69/52/42   D83.3 130/110/58

IR Filter   650           650 650

MOD   M12*P0.5 M8*P0.35 M12*P0.5

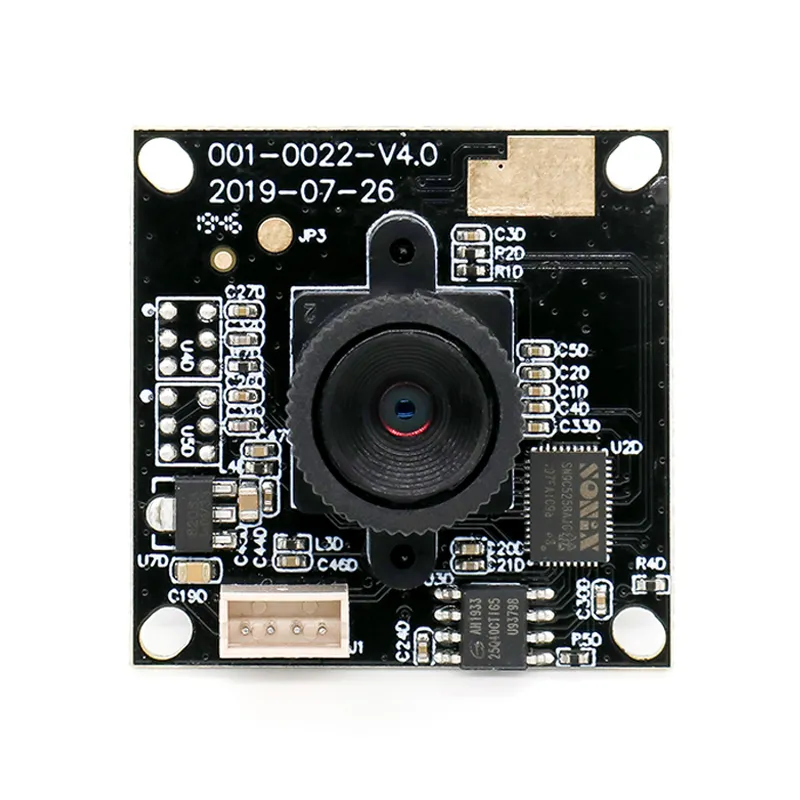

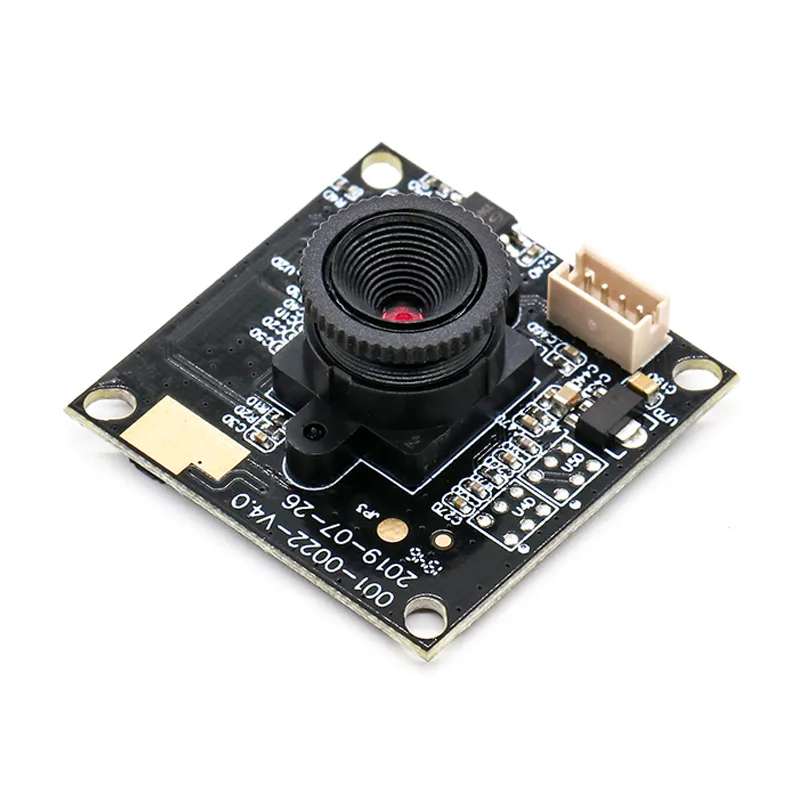

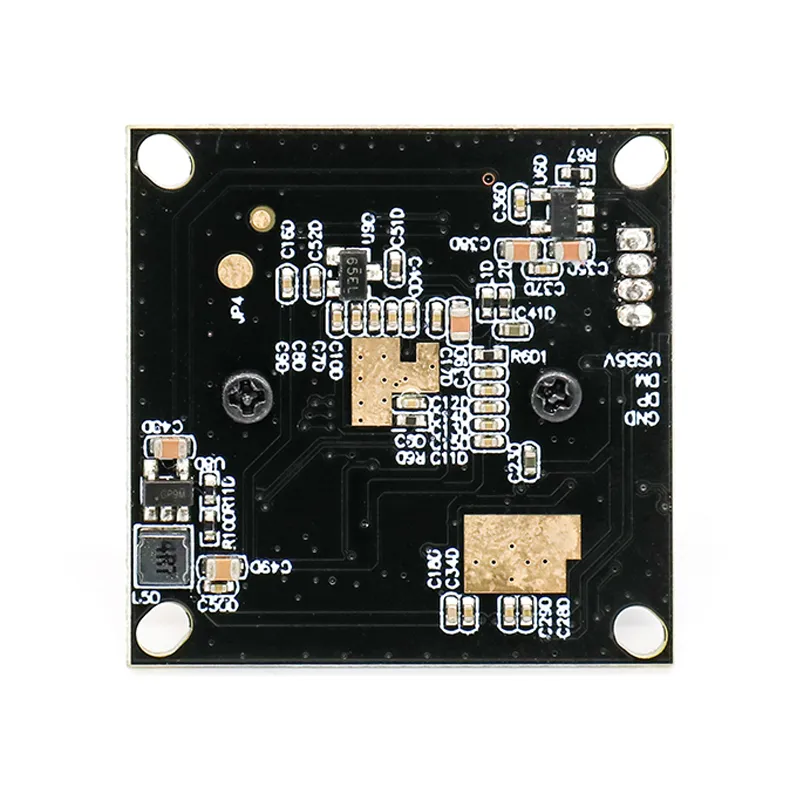

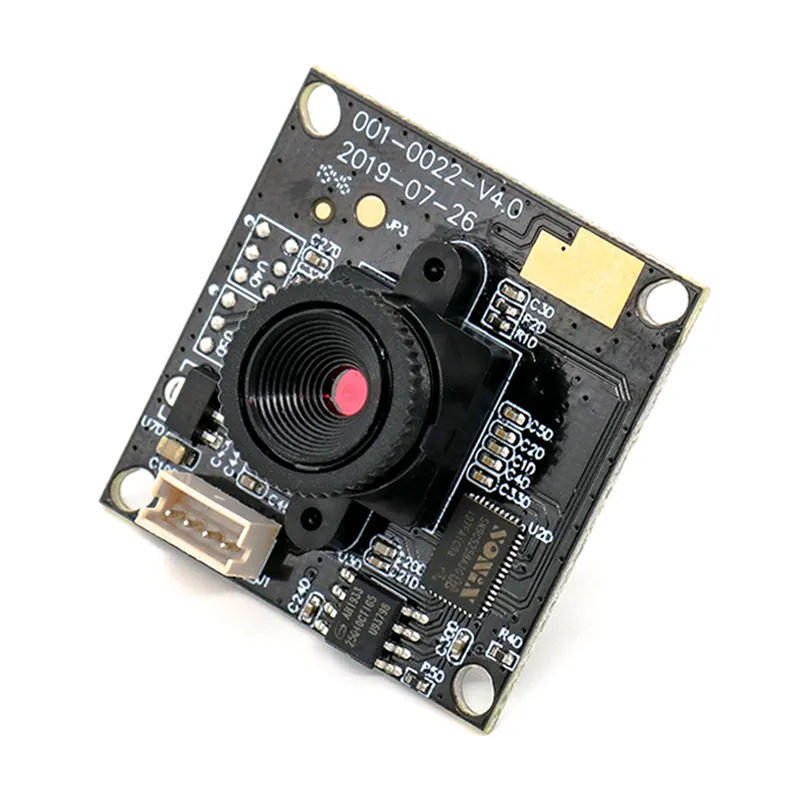

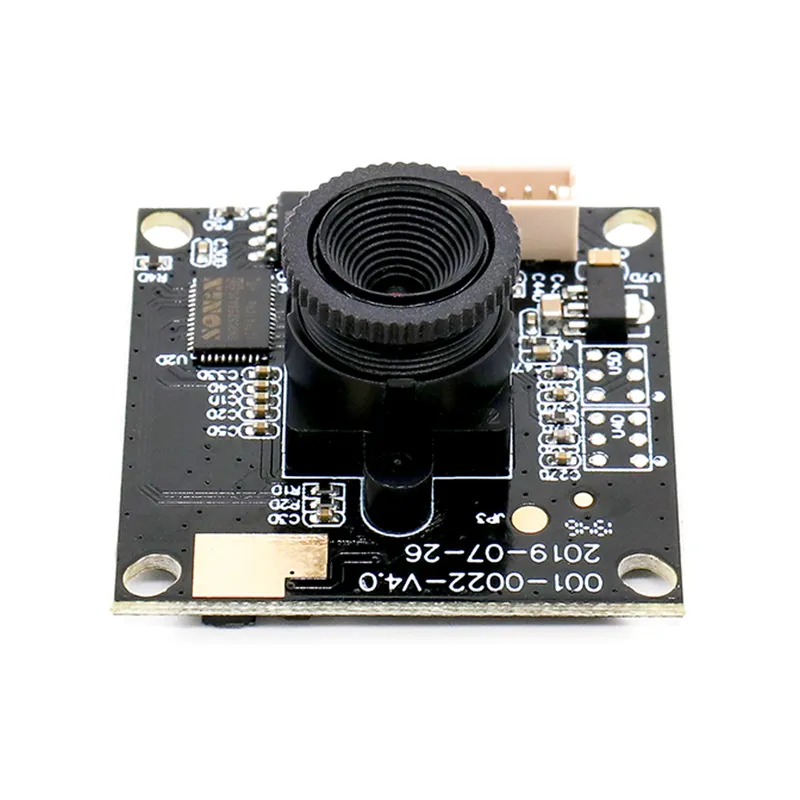

Pictures Display:
