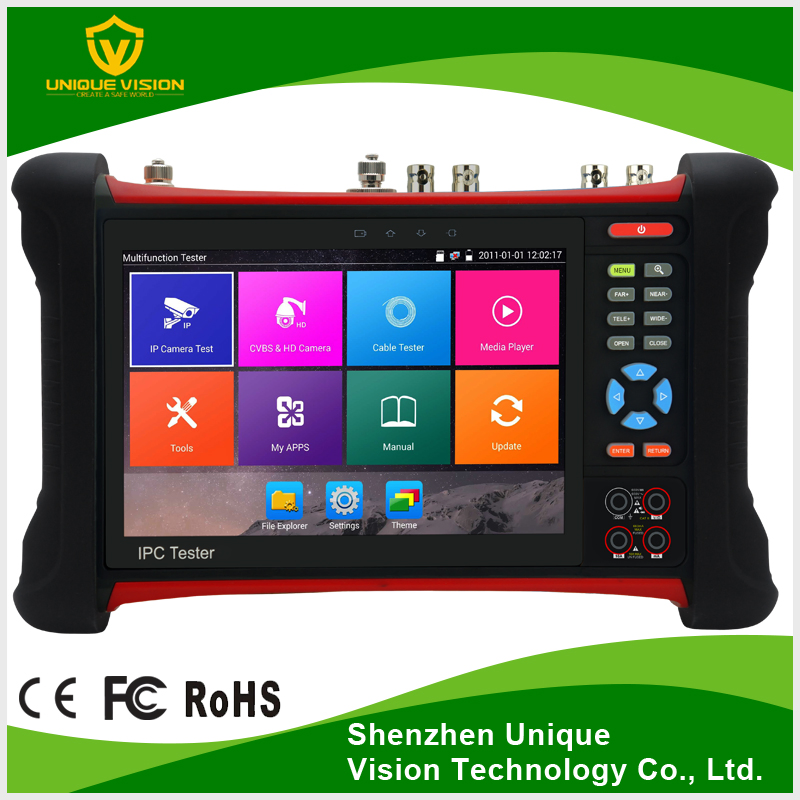

WiFi/IP/Ahd/HD-Cvi/Tvi/Analog Camera Tester (7inch)
All in one Multi-functions CCTV tester7 inch retina touch screen, 1920*1200 resolution 5MP TVI, 4MP CVI, 4MP AHD and SDI/EX-SDI test * H.265/H.264, 4K video display via mainstream ......
Send Inquiry
Product Description
All in one Multi-functions CCTV tester
7 inch retina touch screen, 1920*1200 resolution 5MP TVI, 4MP CVI, 4MP AHD and SDI/EX-SDI test *
H.265/H.264, 4K video display via mainstream Dual window test, IP &Analog camera test
Built in WIFI, create WIFI hotspot HDMI input & output, 1080p
IP discovery , shortcut button, drop-down menu DC12V 2A, DC48V PoE power output
Rapid ONVIF, auto view video, and create testing report Quick office(excel ,word ,PPT format ) doc.
RJ45 cable TDR test, cable quality test UTP cable tester
TesterPlay, tester, android version mobile phone and PC display at the same time
Note: "*"sign mean functions are customizable
The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
-CCTV system installation and maintenance
-Network cabling project installation and maintenance
-Dome camera, IPTVI CVI AHD SDI 4K H.265 camera testing
-Video transmission channel testing
-PTZ controller
New -7 inch retina touch screen ,1920*1200 resolution
New- H.264 & H .265 ,4K video display via mainstream
New- 5MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4MP AHD test, 2560x1440P 15F/25F/30FHD,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS
IP & CVBS camera test ,PTZ controller
New- Rapid video, just by one key to detect all network cameras and auto display
TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile phone)
Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS
New- In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in
New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need to customize
New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface
New- Screen lock, password lock and pattern lock are optional
New- HDMI signal in and out , support 1080P
NEW- Backlit buttons.
New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable
New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
New- 4K video files and MKV/MP4 media files play
PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
8GB SD card including
IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
POE voltage measurement, PING test ,IP address scan, port flashing etc
Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
7.4 V /5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging , working time lasts 10 hours
7 inch retina touch screen, 1920*1200 resolution 5MP TVI, 4MP CVI, 4MP AHD and SDI/EX-SDI test *
H.265/H.264, 4K video display via mainstream Dual window test, IP &Analog camera test
Built in WIFI, create WIFI hotspot HDMI input & output, 1080p
IP discovery , shortcut button, drop-down menu DC12V 2A, DC48V PoE power output
Rapid ONVIF, auto view video, and create testing report Quick office(excel ,word ,PPT format ) doc.
RJ45 cable TDR test, cable quality test UTP cable tester
TesterPlay, tester, android version mobile phone and PC display at the same time
Note: "*"sign mean functions are customizable
The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
-CCTV system installation and maintenance
-Network cabling project installation and maintenance
-Dome camera, IPTVI CVI AHD SDI 4K H.265 camera testing
-Video transmission channel testing
-PTZ controller
New -7 inch retina touch screen ,1920*1200 resolution
New- H.264 & H .265 ,4K video display via mainstream
New- 5MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4MP AHD test, 2560x1440P 15F/25F/30FHD,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS
IP & CVBS camera test ,PTZ controller
New- Rapid video, just by one key to detect all network cameras and auto display
TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile phone)
Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS
New- In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in
New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need to customize
New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface
New- Screen lock, password lock and pattern lock are optional
New- HDMI signal in and out , support 1080P
NEW- Backlit buttons.
New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable
New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
New- 4K video files and MKV/MP4 media files play
PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
8GB SD card including
IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
POE voltage measurement, PING test ,IP address scan, port flashing etc
Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
7.4 V /5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging , working time lasts 10 hours
| LCD | Item series | |||
| Size & Display resolution | New 7 inch touch screen with retina display ,1920*1200 resolution | |||
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | ||
| Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement | ||||
| PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc | ||||
| CVBS loop test | the tester send and receive color bar generator signal, check BNC cable | |||
| IP camera test | IPC test /IPC viewer /Rapid Video/RTSP /ONVIF | |||
| Rapid Video | can create testing report | |||
| Hik test tool | pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters | |||
| Dahua test tool | Dahua camera test, modify the user name, password and IP parameters | |||
| IP& CVBS test | IP& CVBS test at the same time ,converter test from analog to digital with dual test window | |||
| Coaxial HD test * | 5MP TVI camera test,2560x1944P12.5FPS, UTC control/ call OSD menu | |||
| 4MP CVI camera test: 2560x1440P 25F/30F,UTC control d call OSD menu | ||||
| 4MP AHD test, 2560x1440P 15F/25F/30F, UTC control d call OSD menu | ||||
| HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS | ||||
| HDMI input | 1 channel HDMI input,support1080P | |||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | |||
| Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | ||
| HDMI output | 1 channel HDMI output, support 1920*1080P | |||
| 12V/2A power output | Output DC12V/2A power out ,supply temporarily power for the camera | |||
| Power output | PoE power output | 48V PoE power output, max power 24W | ||
| 5V/2A power output | USB 5V 2A power output, as a power bank | |||
| Cable test | TDR cable test * | BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM | ||
| Cable tracer | search BNC cable, network cable and telephone cable from the mess cables | |||
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen | |||
| RJ45 cable TDR test | test cable pair status, length, attenuation, reflectivity, impedance, skew etc | |||
| TesterPlay | screen projection: tester, android version mobile phone and PC display at the same time | |||
| Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test | |||
| Wi-Fi | Built in WIFI,speeds150M,display wireless camera image | |||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | |||
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal | |||
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | |||
| Drop-down menu | You can select PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface | |||
| External power supply | DC 12V 2A | |||
| Battery | Built-in 7.4V Lithium polymer battery ,5000mAh | |||
| Rechargeable | After charging 6-7 hours, normal working time 10 hours | |||
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc | |||
| Auto off | 1-30 (mins) | |||
| Working Temperature | -10ºC---+50ºC | |||
| Working Humidity | 30%-90% | |||
| Dimension/Weight | 231mm x 172mm x 52mm / 1.26Kg | |||
| Below functions are customizable (If add any below function into tester, you need pay addition cost),full model is IPC-8600MOVTADHS plus | ||||
| M* | Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement | |||
| O* | Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement | |||
| V* | Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM | |||
| T* | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM | |||
| A* | AHD camera test, 5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu | |||
| H* | TVI camera test: 5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu | |||
| D* | CVI camera test : 4MP CVI camera test,2560x1440P 25F/30F,UTC control d call OSD menu | |||
| S* | HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS | |||
| ADH* | 5MP TVI ,4MP CVI ,4MPAHD test | |||
| ADHS* | 5MP TVI ,4MP CVI ,4MP AHD ,HD SDI/EX-SDI test | |||
| L* | Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement (free ) | |||
| C* | Cable tracer :search BNC cable, network cable and telephone cable from the mess cable (free) | |||
