Witson Endoscope Pipe Inspection Camera 3.5' Monitor Detachable Waterproof Camera
Hot sale!WITSON endoscope pipe inspection camera 3.5'' monitor detachable waterproof cameraLatest fashion new model This video borescope inspection system features a 3.5-inch lcd color monitor for real-time viewing, with a 10mm flexible camera probe that retains its configured shape for ins......
Send Inquiry
Product Description
Hot sale!WITSON endoscope pipe inspection camera 3.5'' monitor detachable waterproof camera
Latest fashion new model
This video borescope inspection system features a 3.5-inch lcd color monitor for real-time viewing, with a 10mm flexible camera probe that retains its configured shape for inspecting hard-to-reach areas.A standard 0.88-meter probe length is provided with the unit.The optional 3 meter length cable is available.

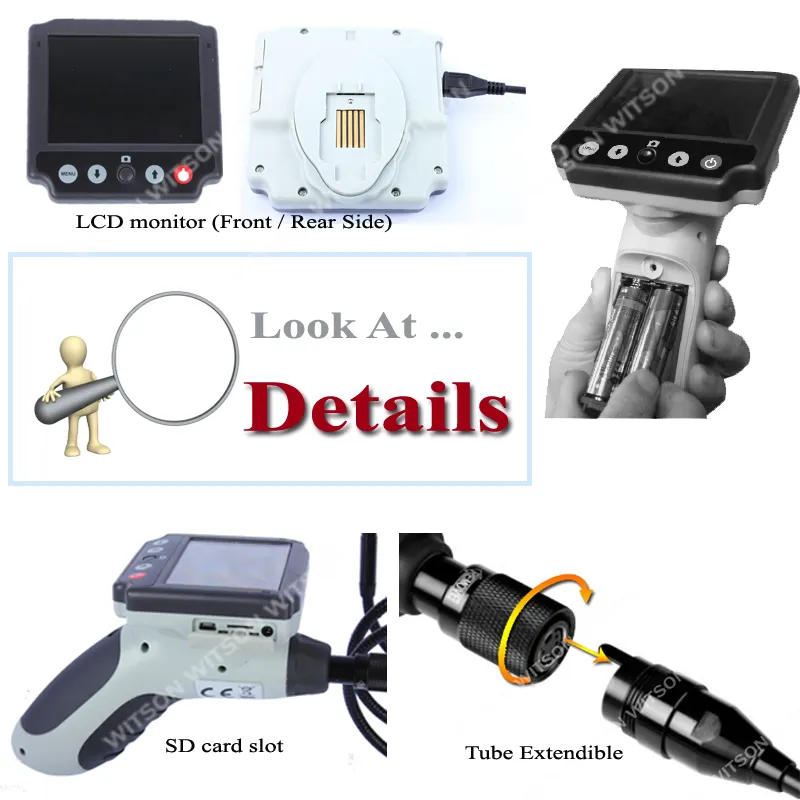

Features:
*3.5 inch detachable color lcd display
*extendible pipe(3m extendible cable)
* sd-card recording function(the camera is equipped with a removable microSD card, enabling quick transfer to a smartphone or computer)
*brightness down button(rotation)
*power on/off button
*brightness up batton(rotation)
*battery compartment(4*1.5v aa)
*hanging hook
*power indicator led
*battery low indicator led
*video output socket
*flexible tube
*camera and leds
*ip67, ce, pak, rohs
Accessories Include:
- 1x Video Borescope
- 1x Tool Box
- 1x Video Pipe
- 1x Hook, Mirror and Magnetic Tip
- 1x TV cable
- 1x Standard to mini USB cable (borescope to computer)
- 1x Micro to mini USB cable (LCD monitor to handle)
Optional Item(s): (Not included in the set)
This order we provide 1 meter tube for you, if you want it more than 1 meter, you can contact us to buy extra Extendible tube for this borescope. we have 3 meter tube, you can buy some tubes and connect them to use, no more than 10pcs tubes connection! If you wanna this Extension cable too,pls feel free to contact us!

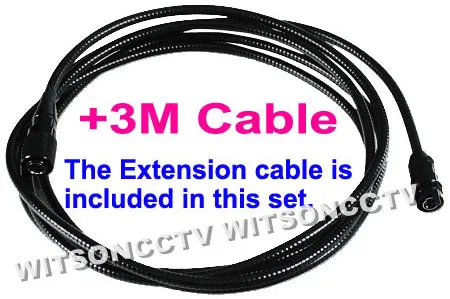

3m (9.9ft) extension cable:
2. OEM/ODM Available
3. All products will have been strictly quality checked in house before shipment.
4. All products have one year warranty.
5. Fast Delivery: sample order will be available within 3-7 days.
One unit packed in ABS Tool Case, 5 Unit in one standard carton
Carton Size:56*41*29CM
G.W.: 8.50KGS (including Carton)
Shipping Lead time: 3-25 days depend on specific order
| Technical Specification | |
| Model NO. | W3-CMP3813DX |
| 3.5inch TFT LCD resolution | 320 x 240 Pixels |
| Lens sensor resolution | 640 x 480 Pixels (over 0.3 Mege Pixel) |
| Sensitivity | 1.8V(Lux.sec) |
| Color Mosaic | RGB Bayer pattern |
| White comparison | Automatic |
| Exposure to light | Automatic |
| Video format | NTSC ( or PAL ) composite video |
| Camera illumination | 4 LEDs, white |
| Handler end AVI port | NTSC ( or PAL ) signal out |
| Power by | 4 X 1.5V AA batteries |
| Power Consumption | Max 400 mA |
| Ambient/operation temperature | 0 to 45 °C |
| TV Cable length | Approx 1.5 M |
| Total length of device | 111.0 + - 2.0 cm |
| Metal tube length | 88.0 + - 2.0 cm |
| Minimum bending radius | 4.5 cm |
| Diameter of camera head | 8.00 mm ( 5.5mm for optional) |
| Lens coverage | 54 ° |
| Short distance focus | 3 ~ 6 cm |
| Weight without accessories | Approx.500 gm |
| SD Card Record Function | YES(support up32G micro SD card) |
| Movie recording | 30fps@720*480(D1)and 30fps@360*240(QVGA) |
| AVI Playback | 30fps@720*480(D1)and 30fps@360*240(QVGA) |
| Connector | TV |
| The Whole Package Include | Endoscope with detachable 3.5" LCD Monitor Magnetic attachment Hook attachment Mirror attachment Display cable Composite video cable Carrying Tool Case Operating instructions. |
