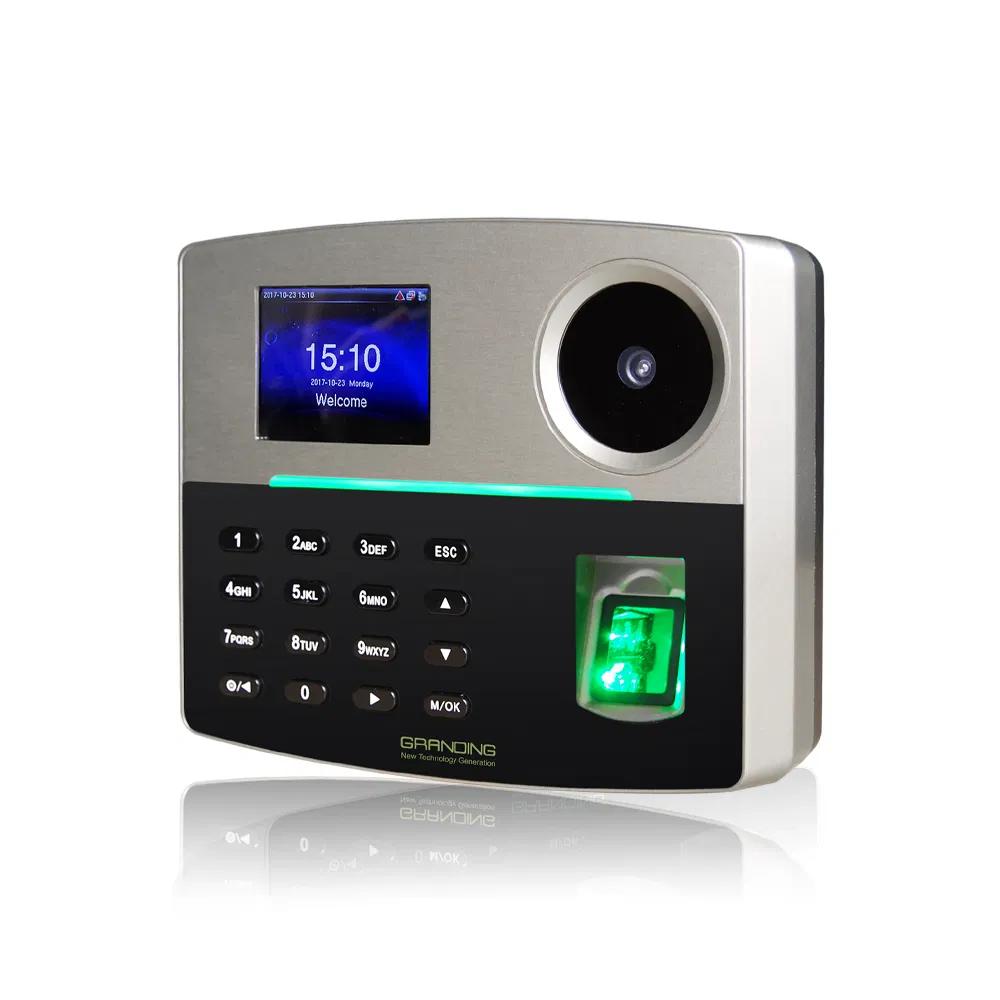

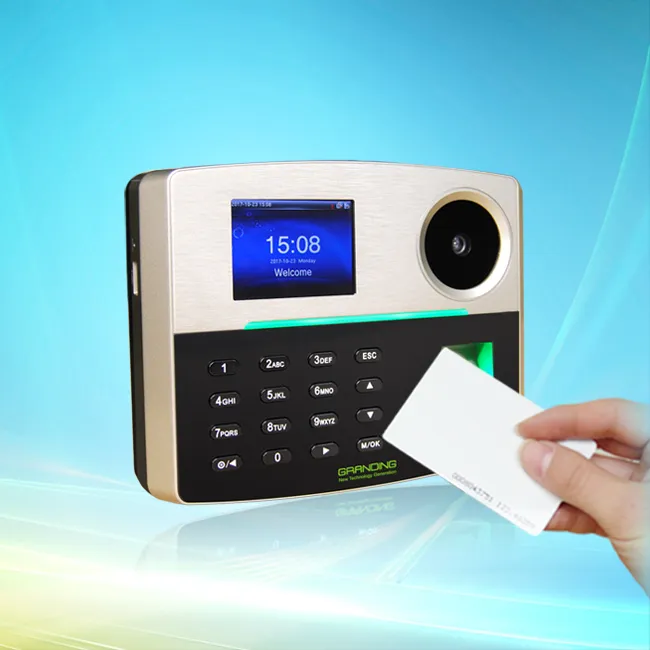

( GT810 ) Palm Recognition Door Access Control Terminal with Optional Wireless WiFi or 3G Function
Palm recognition door access control terminal with optional wireless WiFi or 3G function.Model Name: GT810Brand Name: GRANDINGProduct Description:The GT810 is the latest multi-verify biometric access control, combination with Palm and fingerprint, also can customize RFID card function. Support bot......
Send Inquiry
Product Description
Palm recognition door access control terminal with optional wireless WiFi or 3G function.
Model Name: GT810
Brand Name: GRANDING
Product Description:
The GT810 is the latest multi-verify biometric access control, combination with Palm and fingerprint, also can customize RFID card function. Support both network and standalone, wireless 3G/ WIFI, makes communication with PC easier. USB flash driver for offline data management. Higher-speed CPU, newest fingerprint and Palm Algorithm, friendly user-interface make operation much comfortable. Built-in battery provides approx 3-4 hours operation for power failure.

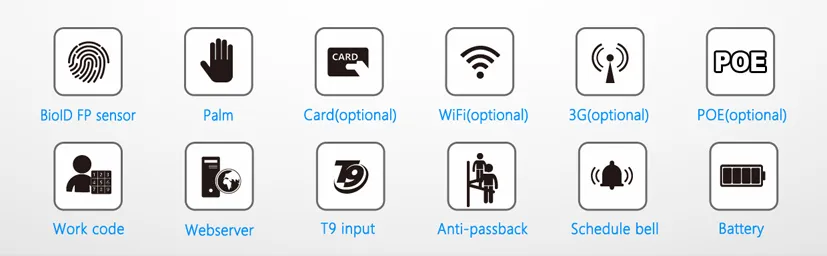

Features:
1. Muliti-verity mode: Palm, fingerprint, PIN, Card(option)
2. Define the shortcut keys easily
3. Data encrypted in the device
4. Rs232/485, TCP/IP, USB client/ host
5. User role management
6. User information expired date setting
7. Change main screen picture easily
8. Internal POE function for option
Model Name | GT810 |
LCD Display | 3" TFT Color screen |
| Fingerprint Reader | BioID fingerprint sensor |
Speaker | Voice Prompt (English, French, Spanish, Arabic, etc.) |
Capacity | Fingerprint capacity:5,000; Palm capacity:1000; Log capacity:200,000 |
Verification | Verification speed(1 :1 ): ≤0.5s ,Identification speed(1 :N): ≤1s |
Power Supply | 110/220V AC-12V /1.5A, Built-in Li-battery 3.7V 4000mAh |
Communication | TCP/IP, USB Host/client, RS232/485, WiFi Or 3G (Optional) |
Identification | FRR: ≤0.01% FAR: ≤0.0001% |
Environment | Operation temperature: 0ºC-45ºC Operation humidity: 20% - 80% |
Packing data | Machine size: 210(L)*157(W)*50(H)mm Unit packing: 280(L)*230(W)*100(H)mm Real weight:1kg, Gross weight:1.5kg |
Attendance status | Check in/ out, Break in/out, Overtime in/out |
Function support | Scheduled bell, Workcode, Webserver, Auto status, DST, Log query, ADMS, External bell, 9 PIN user ID, Multi-verify, Photo ID, SMS |
Customize Function | Serial printer, ID/MF(IC)/NFC card reader, WiFi, 3G, |

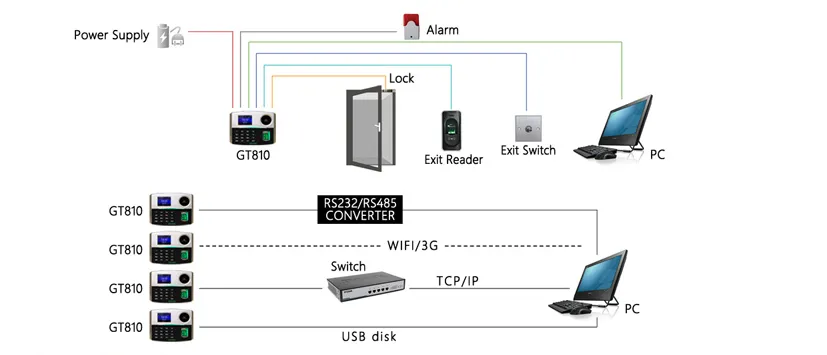

Connection Diagram:

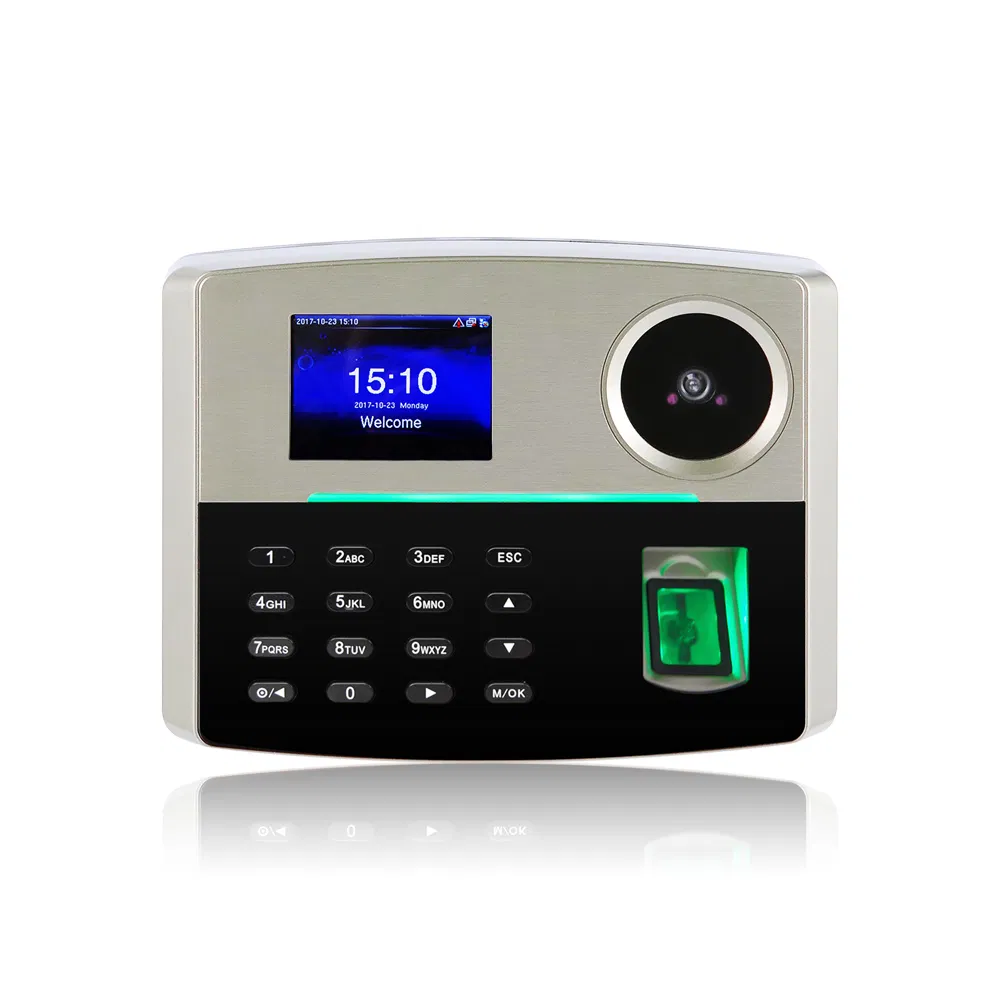

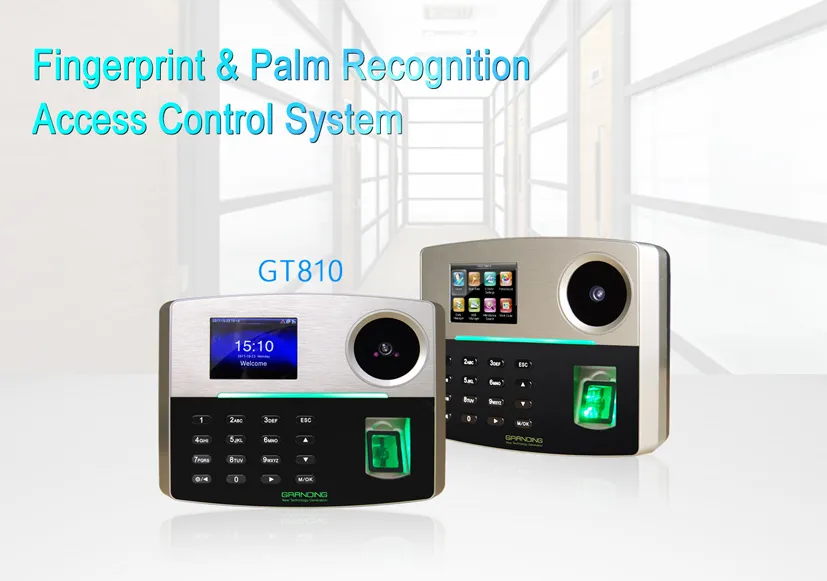

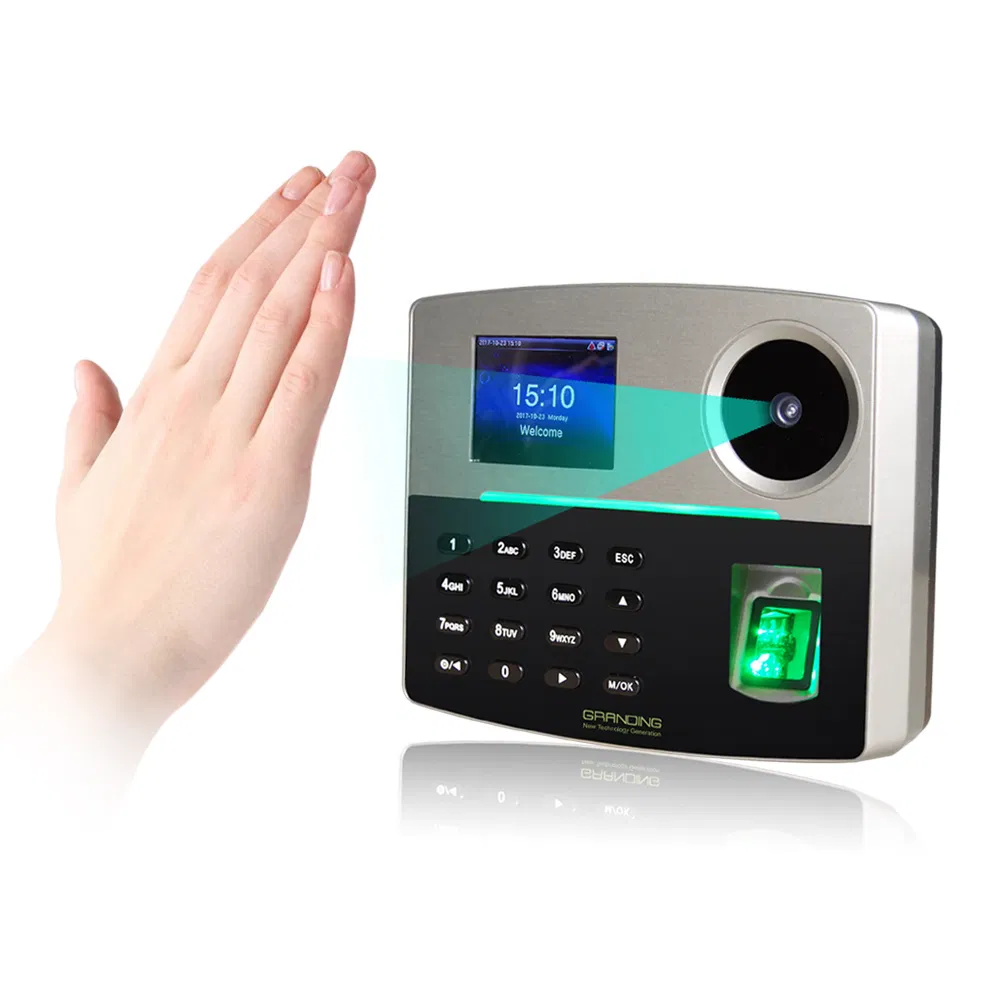

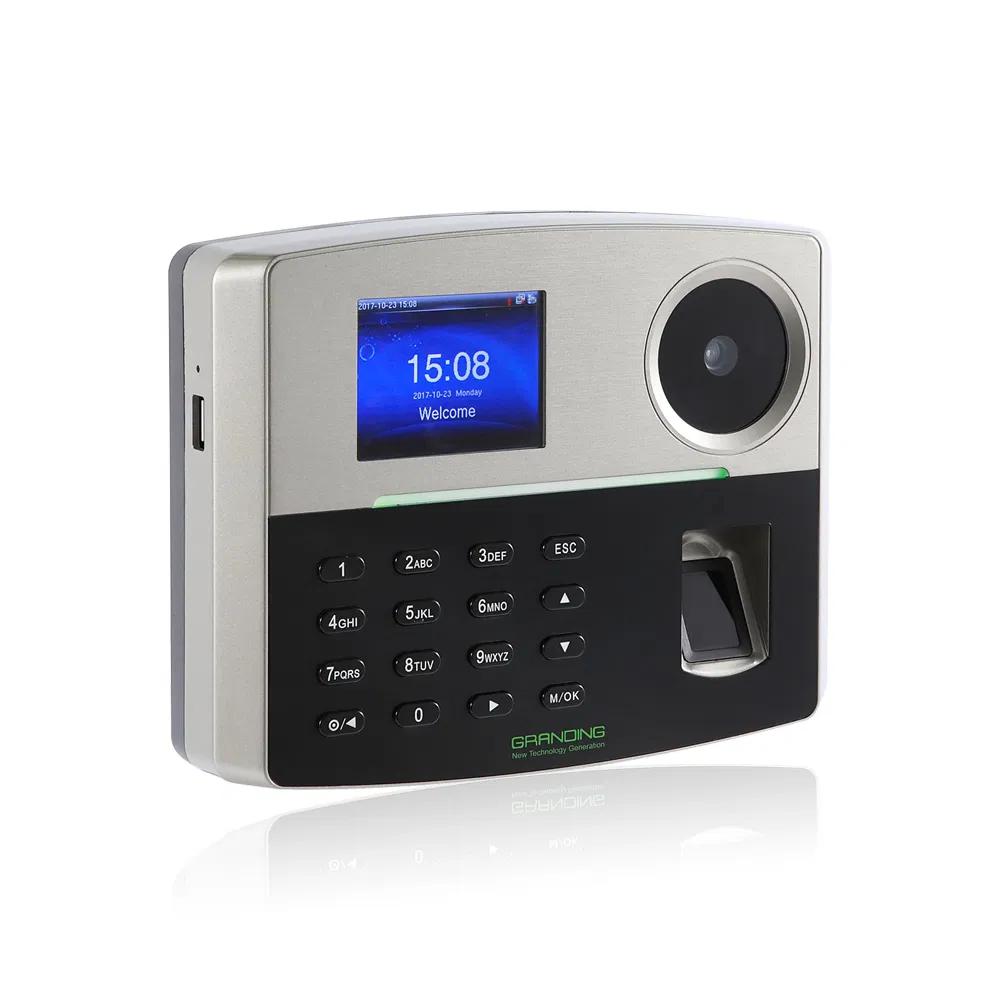

Detailed Imageds:
Free Software & SDK:
Payment & shipment:
Payment Terms: Paypal or West Union for sample order; T/T for regular order; L/C for large order.
Shipment Way: International Express TNT, UPS, Fedex, DHL, Aramex ; International Air; or by Sea shipment.
FAQ :
1. Q: Do you have any MOQ limit?
A: For your convenience, we can accept 1 pcs. But we offer better price for big order.
2. Q: What if the products have problems?
A: We offer 1 year warranty except for the man-made damage. And we can offer any technical support for operation problem.
3. Q: Dose the device's language can be in other language?
A: Yes, of course. Multi-language can be customized. Our device support English, Spanish, Portuguese, Russian, Arabic, French, German, etc.
4. Q: What about the Payment?
A: You can pay for the order via: T/T, Western Union, Paypal, Alibaba Credit Card payment, L/C, DP
5. Q: How do you ship the goods?
A: Small order: Express like DHL, UPS, TNT, Fedex
Big order: By Sea or By airlines.
6. Q:How can I get a sample to check your quality?
A: You can require for samples to check our quality. You should pay for the sample and freight cost, if order more than 500 pcs, we return the sample cost to you.
7. Q: What about the lead time for mass production?
A: small order: 1 week after payment
Big order: 2-3 weeks.
8. Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your email so that we'll regard your inquiry priority.
Any furthur, please kindly feel free to contacyt us.
