3 Inch TFT Screen TCP/IP Network RFID Biometric GSM Network Time Attendance with Data Backup
3 inch TFT screen TCP/IP network rfid biometric gsm network time attendance with data backupUsers can easily manage data by networking FRS30 via RS232/485, TCP/IP, USB Client. Most importantly, all the functions can still operate in a networking state.FR-S30 is compatibility with various typesof USB......
Send Inquiry
Product Description

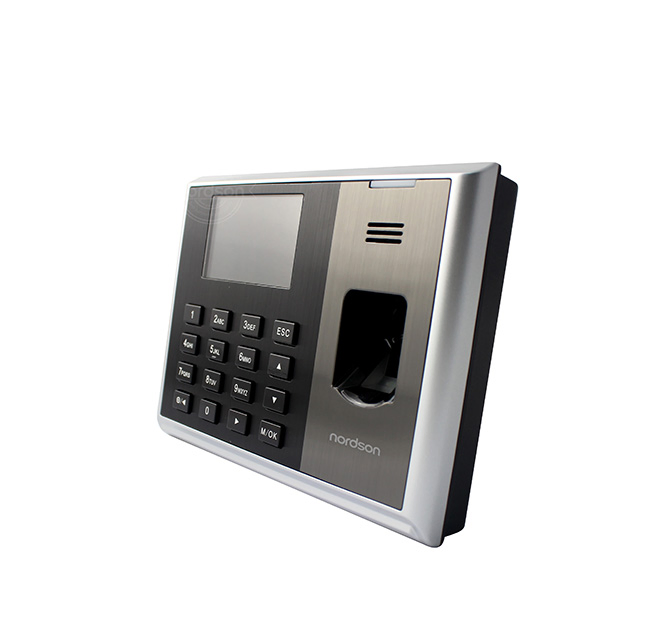

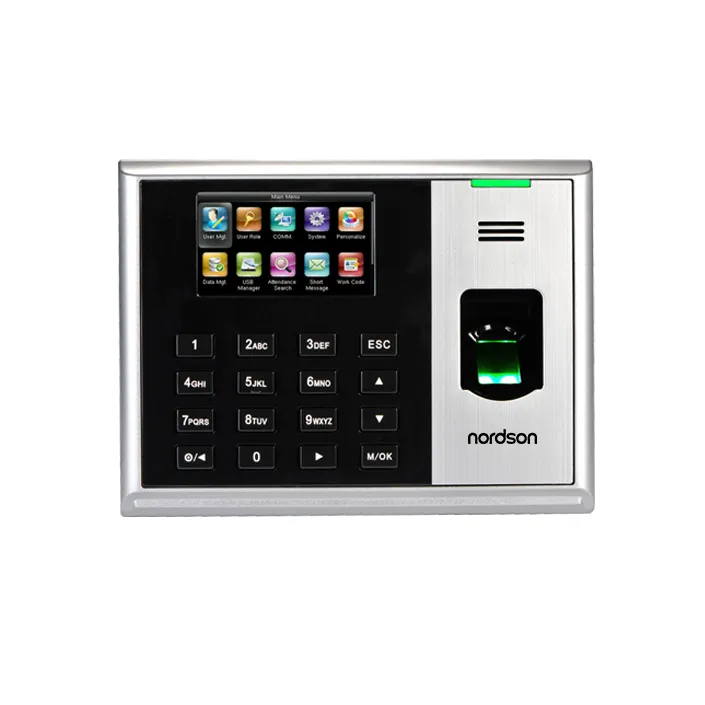

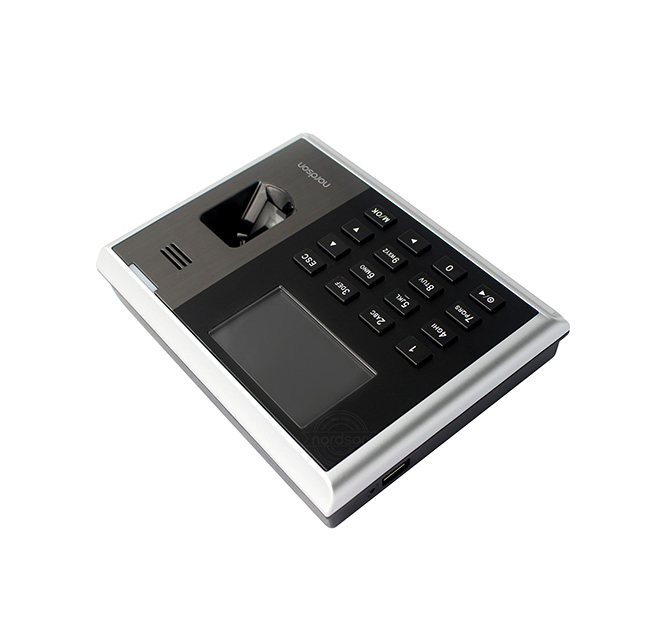

3 inch TFT screen TCP/IP network rfid biometric gsm network time attendance with data backup
Users can easily manage data by networking FRS30 via RS232/485, TCP/IP, USB Client. Most importantly, all the functions can still operate in a networking state.FR-S30 is compatibility with various typesof USB flash disks, ADMS and former SDK. It also supports data backup andretrieve to avoid the risk of accidental deletion. It promotes the fingerprint time & attendance management to the next level.You can get the best of benefits from the FR-S30.
Specification:
Function:
1.Fingerprint capacity:3200;
2.Record capacity:80000;
3.inch TFT screen
4.Communication: USB-Device, TCP/IP,RS232/485;
5.Workcode, SMS, DLST, T9
6.Function of U disk: Download attendance records with U disk, sending public and private message to specific person at fixed interval;
7.Dimension: 185*140*42mm
Packaging & Shipping
Packaging: Neutral Package.
Warrenty:
For the non-human factors of product quality issues, NORDSON offer one-year warranty services for biometric access control system;
three-year warranty for access control panel, electric lock, electric bolt and electric strike;
one year warranty for exit button, bracket, and power supply.The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
NORDSON honor:
Company profile:
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China.
Nordson's products sell and be agent in more than 100 countries and regions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India,Russia etc. Besides, Nordson provides OEM and ODM services also. Nordson's products are widely used in business institutions, government agencies,residential communities,universities,etc.
Products we could provide are below:
Biometric Solutions
Fingerprint Standalone Access Control Terminal,Network Fingerprint Access Control & Time Attendance Terminal,Face & Fingerprint Time Attendance Terminal, Fingerprint Sensor,Access Control Panel,Biometric Locks.
Electric Lock
Single Electromagnetic Lock Series,Double Electromagnetic Lock Series, Embedded Electromagnetic Lock Series,Brackets series for Electromagnetic lock,Electric Bolt Lock,Electric Cabinet Lock,Bracket for Electric Bolt Lock Series,Electric Strike, Mechanical lock series, Door Holder,Electric Control Lock,Door Loops
Guard Tour System Electric Locking Devices
Inductive Guard Tour System,Wireless Guard Tour System,Event Record Guard Tour System,Check Point Button and Staff RFID Tag,Guard Tour Management System Software.
Opening & Closing
Automatic Swing Door Opener System,Door Closer Series.
Release&Sensor&Power Supply
Exit Switch And Button,Power Supply for Access Control.
Access Card Reader
Card Reader,Card Issuer,HID series Access Control,2.4G Omnidirectional/Directional Active UHF RFID Card Reader.
RFID Card&Doorbell&Accessory
RFID Card,ABS Keyfob,HID RFID Card,Accessory of Access Control System.
Door contact
Surface Mounted Magnetic contacts,Overhead magnetic contacts,Recessed Mounted Magnetic contacts.
Users can easily manage data by networking FRS30 via RS232/485, TCP/IP, USB Client. Most importantly, all the functions can still operate in a networking state.FR-S30 is compatibility with various typesof USB flash disks, ADMS and former SDK. It also supports data backup andretrieve to avoid the risk of accidental deletion. It promotes the fingerprint time & attendance management to the next level.You can get the best of benefits from the FR-S30.
Specification:
| Model | FR-S30 Fingerprint Time Attendance Machine |
| Fingerprint Capacity | 3200 |
| RFID Card Capacity | 10000(EM-ID or Mifare IC is Optional) |
| Record Capacity | 80000 |
| Display | 3 inch TFT screen |
| Communication | TCP/IP, RS232/485,USB-host/client |
| Standard Functions | Professional time attendance function including SMS,workcode,DLST,scheduled bell etc. |
| Optional Functions | RIS,Printer,9 Digit User ID,WIFI,Backup Supply |
| Power Supply | DC 12V |
| Optional language | English, Spanish, French, German, Russian, Portuguese, Arabic, Persian |
| Verification Speed | ≤0.5 sec |
| Operating Temp. | 0°C- 45°C |
| Operating Humidity | 20%-80% |
| Dimension | 185*140*42mm(Length×Width×Thickness) |
| Gross Weight | 1.5kg |
Function:
1.Fingerprint capacity:3200;
2.Record capacity:80000;
3.inch TFT screen
4.Communication: USB-Device, TCP/IP,RS232/485;
5.Workcode, SMS, DLST, T9
6.Function of U disk: Download attendance records with U disk, sending public and private message to specific person at fixed interval;
7.Dimension: 185*140*42mm
Packaging & Shipping
Packaging: Neutral Package.
Shipping: Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of remittance.
Warrenty:
For the non-human factors of product quality issues, NORDSON offer one-year warranty services for biometric access control system;
three-year warranty for access control panel, electric lock, electric bolt and electric strike;
one year warranty for exit button, bracket, and power supply.The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
NORDSON honor:
Company profile:
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China.
Nordson's products sell and be agent in more than 100 countries and regions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India,Russia etc. Besides, Nordson provides OEM and ODM services also. Nordson's products are widely used in business institutions, government agencies,residential communities,universities,etc.
Products we could provide are below:
Biometric Solutions
Fingerprint Standalone Access Control Terminal,Network Fingerprint Access Control & Time Attendance Terminal,Face & Fingerprint Time Attendance Terminal, Fingerprint Sensor,Access Control Panel,Biometric Locks.
Electric Lock
Single Electromagnetic Lock Series,Double Electromagnetic Lock Series, Embedded Electromagnetic Lock Series,Brackets series for Electromagnetic lock,Electric Bolt Lock,Electric Cabinet Lock,Bracket for Electric Bolt Lock Series,Electric Strike, Mechanical lock series, Door Holder,Electric Control Lock,Door Loops
Guard Tour System Electric Locking Devices
Inductive Guard Tour System,Wireless Guard Tour System,Event Record Guard Tour System,Check Point Button and Staff RFID Tag,Guard Tour Management System Software.
Opening & Closing
Automatic Swing Door Opener System,Door Closer Series.
Release&Sensor&Power Supply
Exit Switch And Button,Power Supply for Access Control.
Access Card Reader
Card Reader,Card Issuer,HID series Access Control,2.4G Omnidirectional/Directional Active UHF RFID Card Reader.
RFID Card&Doorbell&Accessory
RFID Card,ABS Keyfob,HID RFID Card,Accessory of Access Control System.
Door contact
Surface Mounted Magnetic contacts,Overhead magnetic contacts,Recessed Mounted Magnetic contacts.
