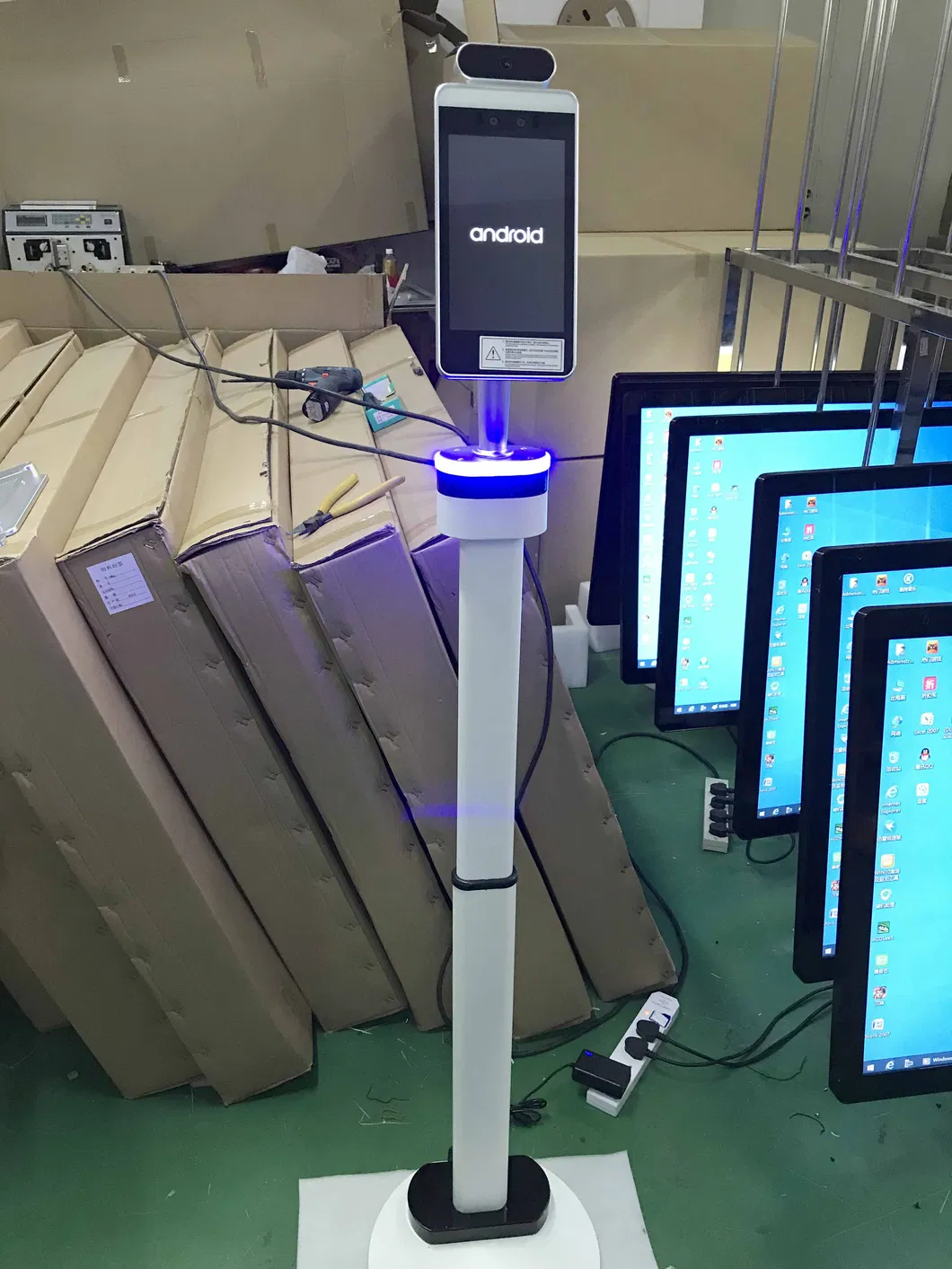

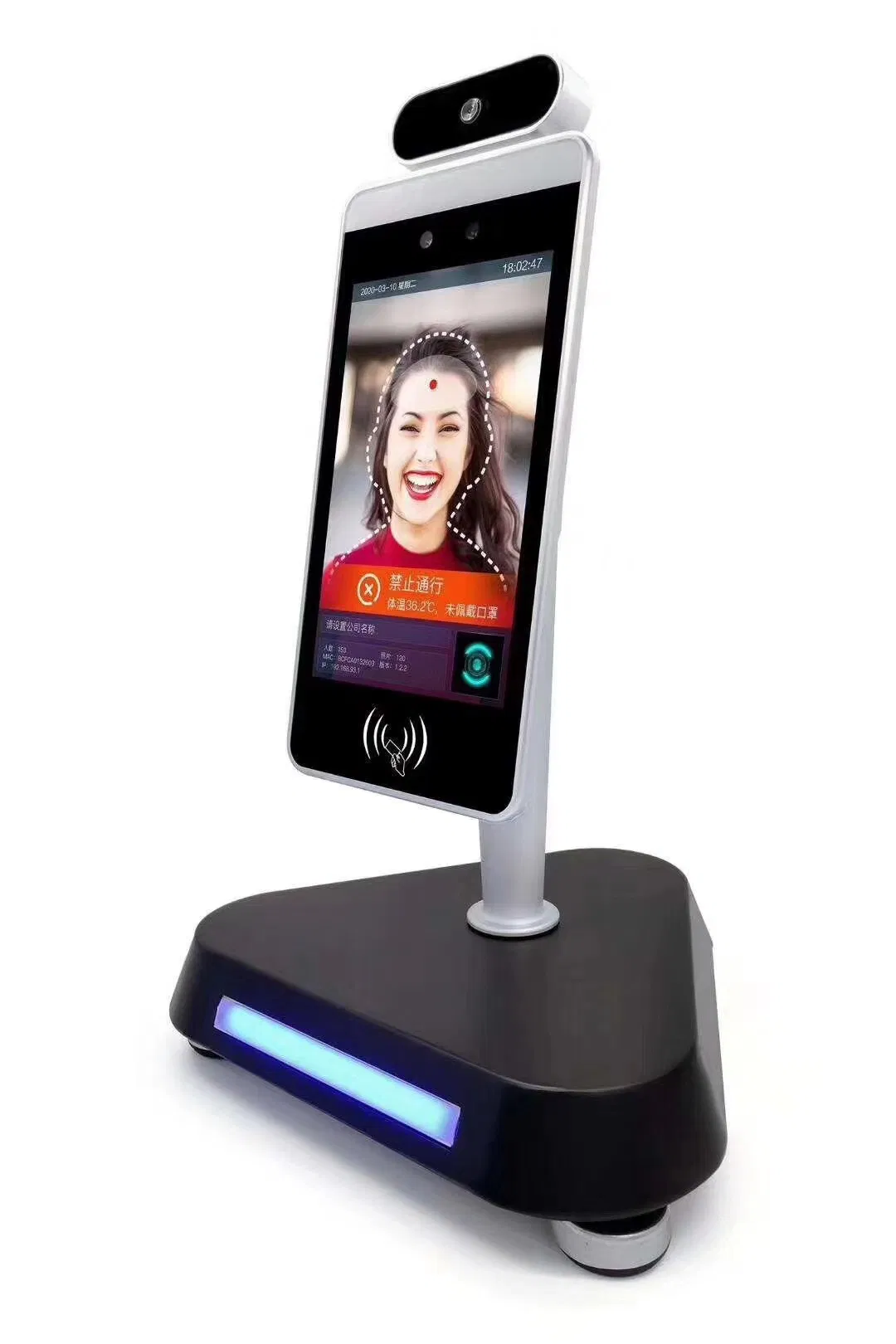

Floor Stand 8 Inch Screen Body Temperature Measurement and Dynamic Face Recognition Access Control Management System Biometric Time Attendance
MIPS Management Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS serverSupport clients install software in their public IP server to get a cloud server. This will be convenient for client to install management software f......
Send Inquiry
Product Description
MIPS Management Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
This will be convenient for client to install management software for their final user on LINUX or WINDOWS server with public IP address and help their final client can install the terminal in different place for city but control from one place.
Product Features updated:
1, Face Recognition camera build in for access control system,
2, High Level Germany HEIMANN temperature sensor for body temperature measurement,
3, With IC/ID card reader for access control system,
4, Stand alone version, narrow network version, cloud server version available,
5, Free smart Pass Management Software, APK and API provided, 24hours online support available,
6, Multi size and design available, touch/non touch screen available, customized color available,
7, Installation way: Wall mounted, desktop stands, free standing stands, install on access control gate,
8, Installation location: School, hospital, airport, railway station, village, mall, store, office, company, commercial building, etc,
9, Works perfectly outdoor under sun, works perfectly under Low temperature environment,
10, Certificated: CE, FCC, RoHS, CB, KC, CCC etc,
11, Strong and stable Android mother board, Android OS. With multi languages for various market,
12, Fast delivery time. Ready to ship out within 2 or 3days for order under 300pcs,
13, Multi connectors for connecting different device,
14, Play advertisement when no body come close. Upload end users' logo. company info.

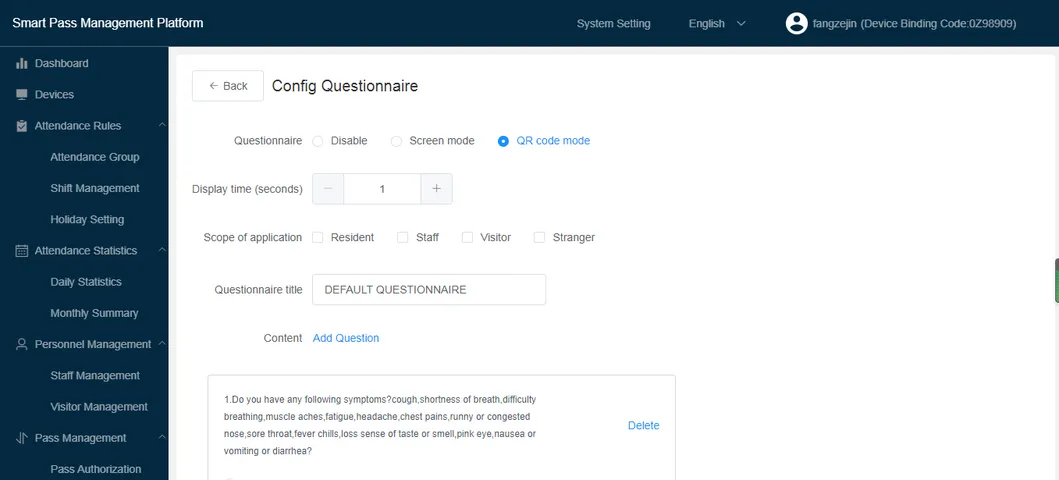

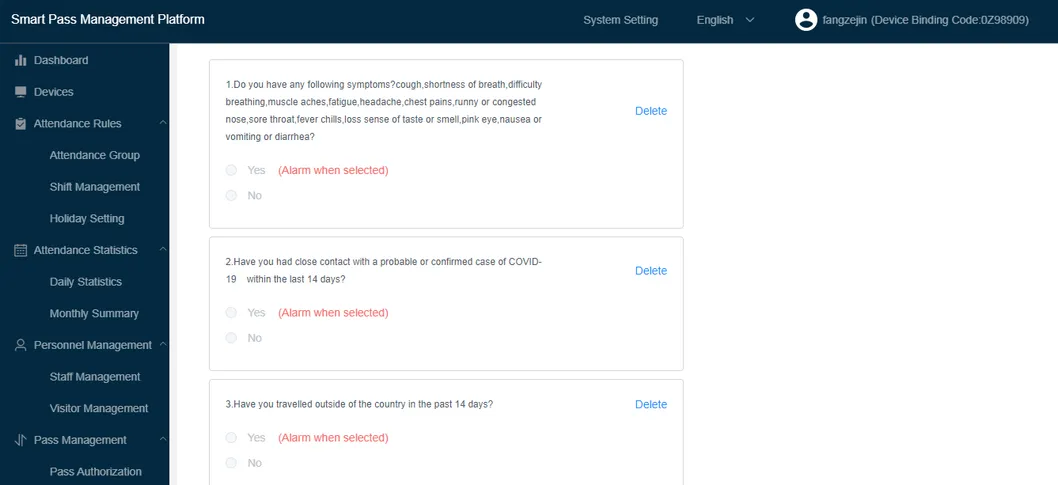

PC/cloud management platform;
11 management platform languages, including Chinese, British, Japanese and Korean (still increasing in the later period);
Nearly 40 kinds of host voice languages are all spoken by real people
Cloud platform realizes unified and centralized management of devices in different regions of the world
IC / ID / QR code function is optional
OEM/ODM
Low temperature function (- normal temperature measurement at 20-60 ºC)
CNC process for frame, elegant design
Free MIPS software
Floor Stand 8 Inch Screen Body Temperature Measurement and Dynamic Face Recognition Access Control Management System Biometric Time Attendance
With MIPS software
Free Management software and APK provided.
Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Floor Stand 8 Inch Screen Body Temperature Measurement and Dynamic Face Recognition Access Control Management System biometric time attendance
Italian 1.1m floor stand 8 inch screen body Temperature Measurement and Dynamic face recognition Access Management Module
face recognition machine
face recognition access control
face recognition door access system
face recognition door lock
face recognition time attendance system
temperature testing system
Body Temperature Measurement System
Face Recognition Body Temperature Measurement System
face recognition temperature measurement
Italian 1.1m Floor Stand 8 Inch Screen Body Temperature Measurement and Dynamic Face Recognition Access control Management system
Multi Languages Dynamic Face Recognition Camera Resolution 32 *32Pixel Germany body temperature Thermometer Sensor Terminal Access Control system
Product Features:
1, Face Recognition camera build in for access control system,
2, High Level HEIMANN temperature sensor for body temperature measurement,
3, With IC/ID card reader for access control system,
4, Stand alone version, narrow network version, cloud server version available,
5, Free smart Pass Management Software, APK and API provided, 24hours online support available,
6, Multi size and design available, touch/non touch screen available, customized color available,
7, Installation way: Wall mounted, desktop stands, free standing stands, install on access control gate,
8, Installation location: School, hospital, airport, railway station, village, mall, store, office, company, commercial building, etc,
9, Works perfectly outdoor under sun, works perfectly under Low temperature environment,
10, Certificated: CE, FCC, RoHS, CB, KC, CCC etc,
11, Strong and stable Android mother board, Android OS. With multi languages for various market,
12, Fast delivery time. Ready to ship out within 2 or 3days for order under 500pcs,
13, Multi connectors for connecting different device,
14, Play advertisement when no body come close.
Technical Parameter:
Product model:TPK-FRTD-001
Resolution: 200W pixels
Camera type: binocular wide dynamic camera; Focus distance: 50-150cm; White Balance: Auto.
Screen size: 8.0 "IPS LCD
Resolution: 800x1280
Processor CPU rk3288 quad core / rk3399 six core / msm8953 eight core
Local storage EMMC 8g
Accessories: fill light, led and infrared double fill light
Network module supports: Ethernet and wireless (W old)
Interface audio supports 2.5w/4r horn
USB interface: 1 USB OTG, 1 USB host standard a
Serial communication interface: one RS232 serial port
Relay output 1 channel door opening signal output
Wigan interface: one channel of Wigan 26 / 34 output, one channel of Wigan 26 / 34 input
Upgrade button supports the uboot upgrade button
Wired network interface 1-way RJ45 Ethernet base
Face detection supports detection and tracking of multiple people at the same time
Face database supports up to 30000
1: N face recognition support
1: 1 face matching support
Stranger detection support
Function identification distance configuration support
UI interface configuration support
Device remote upgrade support
Equipment interface includes equipment management, personnel / photo management, record query, etc
Deployment mode: support public cloud deployment, privatization deployment, LAN use, stand-alone use Human body temperature detection support
Temperature detection distance [ Meter
Temperature measurement accuracy < ± 0.2 ° C
Temperature measurement range: 10 ° C ~ 42 ° C
Thermal imaging field of view 32 x 32 ° C
Visit object SIE Continuous constant temperature direct release support
Temperature over temperature alarm support (temperature alarm value can be set)
Protection grade: IP65, with certain outdoor dust-proof and waterproof functions
Power supply DC12V (± 10%)Operating temperature - 10 ° C ~ 60 ° C
Storage temperature - 20 ° C ~ 60 ° C
General parameter power consumption: 13.5w (max)
Installation mode: gate support installation
Equipment size: 238.24 * 128 * 25 (mm)
Weight: 1.45kg
access control system
Product Introduction:
Adopting the high-performance hardware platform of RSM micro rk3288 / rk3399 / Qualcomm msm8953, equipped with industrial grade binocular camera and human face recognition technology, as well as infrared thermal imaging module, it supports mask recognition. It also supports the extension of ID card reader, fingerprint instrument and other peripheral devices, which can be applied to gate channel and access control attendance, and realize the safe and efficient access control of personnel.
Application scenario:
It can be matched with access gate and access control for communities, office buildings, schools, hotels
Scenic spots, transportation hub centers and other public service places, etc.
Product Characteristics:
8-inch IPS full view LCD display is adopted.
Industrial appearance, waterproof and dustproof design, stable and reliable.
support 3W face database. 1: 1. The comparison recognition rate is over 99.7%, 1: n comparison recognition rate is over 96.7% @ 0.1% false recognition rate is over 98.3% @ 1% false rejection rate in vivo detection. The speed of face recognition is less than 1 second.Support accurate face recognition and comparison when wearing masks.It adopts industrial level binocular wide dynamic camera, infrared and led dual compensation at night. It supports the optional four core rk3288, six core rk3399 and eight core Qualcomm msm8953 processors with strong performance.Support human body temperature detection, temperature display, 1 meter ultra far temperature detection, 0.2. (: error, support and automatic temperature alarm, second level detection speed, attendance temperature measurement data real-time export.It supports a variety of peripheral extensions such as ID card reader, fingerprint reader, IC card reader and QR code reader.It supports system level, APP offline level and app + background network level API docking, complete documentation and secondary development.
Technical Parameter:
Product model:TPK-FRTD-001
Resolution: 200W pixels
Camera type: binocular wide dynamic camera
Focus distance: 50-150cm
White Balance Auto
Screen size: 8.0 "IPS LCD
Resolution: 800x1280
Processor CPU rk3288 quad core / rk3399 six core / msm8953 eight core
Local storage EMMC 8g
Accessories: fill light, led and infrared double fill light
Network module supports Ethernet and wireless (W old)
Interface audio supports 2.5w/4r horn
USB interface: 1 USB OTG, 1 USB host standard a
Serial communication interface: one RS232 serial port
-relay output 1 channel door opening signal output
Wigan interface: one channel of Wigan 26 / 34 output, one channel of Wigan 26 / 34 input
Upgrade button supports the uboot upgrade button
Wired network interface 1-way RJ45 Ethernet base
Face detection supports detection and tracking of multiple people at the same time
Face database supports up to 30000
1: N face recognition support
1: 1 face matching support
Stranger detection support
Function identification distance configuration support
UI interface configuration support
Device remote upgrade support
Equipment interface includes equipment management, personnel / photo management, record query, etc
Deployment mode: support public cloud deployment, privatization deployment, LAN use, stand-alone use

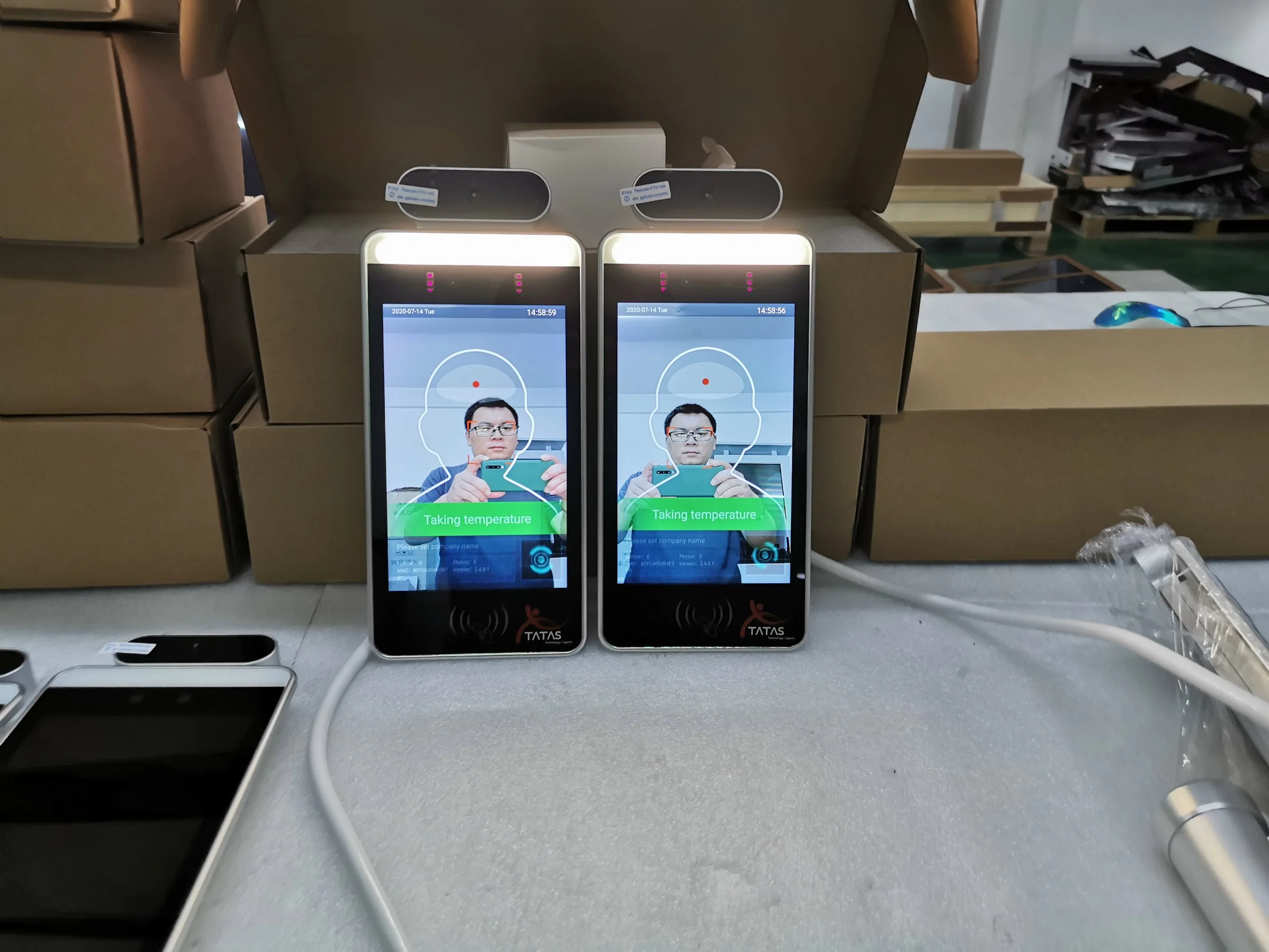

Human body temperature detection support
Temperature detection distance [M
Temperature measurement accuracy < ± 0.2 ° C
Temperature measurement range: 10 ° C ~ 42 ° C
Thermal imaging field of view 32 x 32 ° C
Visit object SIE Continuous constant temperature direct release support
Temperature over temperature alarm support (temperature alarm value can be set)
Protection grade: IP65, with certain outdoor dust-proof and waterproof functions
Power supply DC12V (± 10%)
Operating temperature - 10 ° C ~ 60 ° C
Storage temperature - 20 ° C ~ 60 ° C
General parameter power consumption: 13.5w (max)
Installation mode: gate support installation
Equipment size: 238.24 * 128 * 25 (mm)
Weight: 1.45kg
Fixed mode:It is mainly used for brake, which is screwed and fixed by screw base.
