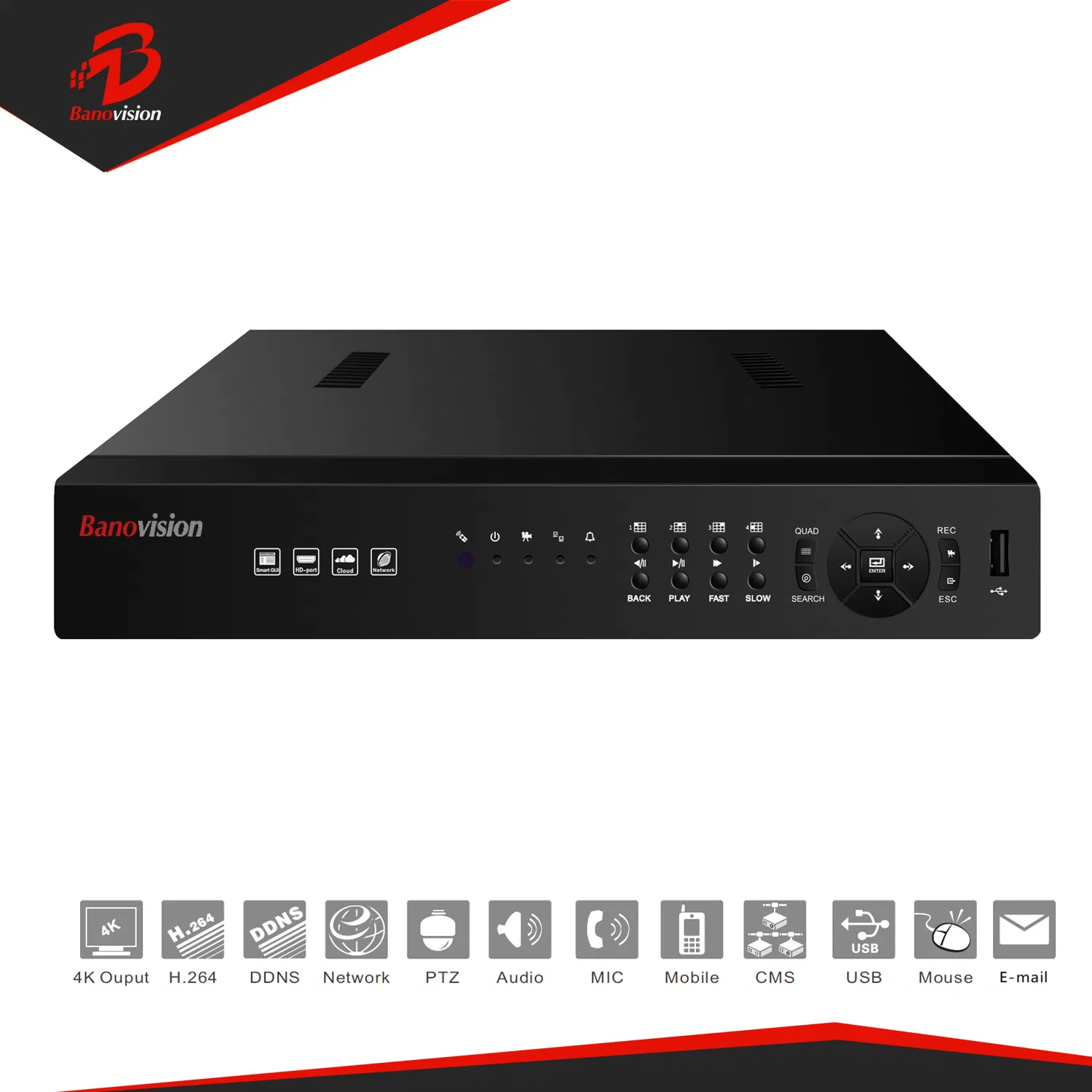

1080n 16CH Xvr Digital Video Recorder CCTV DVR
Features Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%. Completely new graphics operating interface design, to let you experience easily and conveniently. SDVR combines ......
Send Inquiry
Product Description
Features
• Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%.
• Completely new graphics operating interface design, to let you experience easily and conveniently.
• SDVR combines the functions of DVR/HVR/NVR/TVI/CVI together, multi-mode input ( support analog video, Analog HD video, network HD video input). No need to worry how to be compatible with analog system, to choose DVR or HVR, just one SDVR can work.
• Super Strong processing capacity: can realize 16CH AHD 1080N@12FPS recording and 16CH AHD 1080N playback synchronously.
• Support main stream and extra stream encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
• Support super cloud service (this function is optional, specialized website for super cloud service: banovision.en.made-in-china.com), one step to do remote control easily & conveniently without any complicated setting. • Powerful net service (support DHCP, PPPOE, FTP, DNS, DDNS, ARSP(banovision.en.made-in-china.com), NTP, UPNP, EMAIL, IP authority, IP search, alarm center etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection.
• Built-in IE plugs, no need to install from CD disk independently.
• Support 3G & WIFI extension.
• Support multi-browser (IE, Firefox).
• Support kinds of mobile monitor (iPhone, Android)
• Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view; all operations are independent of each other.
• Support many recording modes: Auto-continuing recording, timing recording, motion detection recording.
• Playback mode support normal play, speed play, fast back play, manual and single-frame play.
• Many backup device: USB flash disk, USB portable HDD and network.
• Support alarm triggered recording will send alerts matter (some models support sending picture) to the designated email.
• Support pre-alarm recording (before 10 sec),not lose any suspicious screen.
• Twenty kinds of language (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish etc), break up country limitation.
• System auto recovery to power after power reconnected, and return to the pre-power-down state.
Specification
| Model | BA-2D2216E | ||||
| System | Main Processor | Industrial grade embedded micro controller chip Huawei HIS chipset Hi3521A | |||
| Operating System | Embedded LINUX operating system | ||||
| System Resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||||
| Display | Operation Interface | 16 bit real color GUI interface support mouse operation | |||
| Display Screen | Take all analog input as an example, others are depended on the selected channel mode | ||||
| 1/4 screen | |||||
| Video | Image Encode | H.264(High Profile) | |||
| Monitor Quality | VGA: 1080P; HDMI: 1080P | ||||
| Playback Quality | Max support 1080P under HVR and NVR mode; Max support AHD 1080P under DVR mode | ||||
| Encode Capability | 16CH AHD 1080N@12FPS(DVR mode) | ||||
| Decode Capability | 16CH AHD 1080N@12FPS(DVR mode) | ||||
| Multi-Mode Video Input | DVR mode: 16CH *1080N@12FPS/8CH*1080N/16CH*960H HVR mode: 8CH*1080N+8CH*720P(IPC) NVR mode: 8CH*1080P /8CH*960P/4CH*3M/4CH*5M | ||||
| Motion Detection | Each channel can set 192 (16*12) detection area; can set multi-level of flexibility (for local analog channel only) | ||||
| Support Camera | AHD, CVI, TVI, IPC, 960H | ||||
| Audio | Audio Compression | G.711A | |||
| Record and Playback | Record Mode | Manual, alarm, motion detection, timing | |||
| Local Playback | 4*1080N@12FPS | ||||
| Video Search | Time, date, event, channel search | ||||
| Storage and Back Up | Space Occupation | Video: 1080P 20~30G/day*channel; 720P 20G/day*channel; 960H 12~20G/day*channel Audio: 691.2M/day*channel | |||
| Video Storage | Local HDD, Network | ||||
| Back Up Mode | Network backup, USB portable HDD, USB DVD-RW | ||||
| Interface | Video Input | 4CH BNC | |||
| Video Output | 1CH VGA, 1CH HDMI | ||||
| Audio Input | 2CH RCA | ||||
| Audio Output | 1CH RCA | ||||
| Alarm Input | NO | ||||
| Alarm Output | NO | ||||
| Network Port | RJ45 10M/100M self-adaptive Ethernet port | ||||
| PTZ Control | 1 RS485; support multi kinds of PTZ Protocol | ||||
| USB Port | 2*USB2.0 | ||||
| HDD Port | 2 SATA(each max support 6TB) | ||||
| Wireless Port | 3G, WIFI(extension via USB port) | ||||
| Other | Tour | Yes | |||
| Remote Controller | Yes | ||||
| Power | 12V/4A | ||||
| Dimension (mm) | 325(Length) x 245(Width) x 52(Height) | ||||
