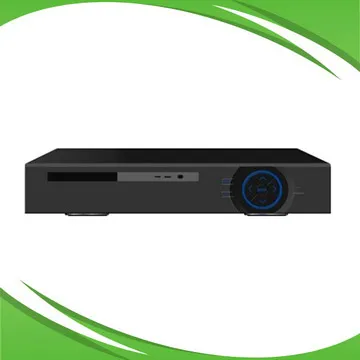

4CH/8CH 1080P HD-Cvi & IP Hybrid DVR
Features: Up to 4/8 cameras with 1080p realtime preview H.264 dual-stream video compression CVR1004/1008: All channel 720P HDMI / VGA simultaneous video output All channel synchronous playback, GRID interface & smart search 3D intelligent positioning with Dahua PTZ dome camera Support 1 SATA HD......
Send Inquiry
Product Description
Features:
• Up to 4/8 cameras with 1080p realtime preview
• H.264 dual-stream video compression
• CVR1004/1008: All channel 720P
• HDMI / VGA simultaneous video output
• All channel synchronous playback, GRID interface & smart search
• 3D intelligent positioning with Dahua PTZ dome camera
• Support 1 SATA HDD up to 4TB, 2 USB2.0
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specification:
• Up to 4/8 cameras with 1080p realtime preview
• H.264 dual-stream video compression
• CVR1004/1008: All channel 720P
• HDMI / VGA simultaneous video output
• All channel synchronous playback, GRID interface & smart search
• 3D intelligent positioning with Dahua PTZ dome camera
• Support 1 SATA HDD up to 4TB, 2 USB2.0
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specification:
| Model | CVR1004 | CVR1008 | |
| Operating System | Embedded LINUX | ||
| Input | 4 channel, BNC | 8 channel, BNC | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||
| Input | 1 channel, RCA | ||
| Output | 1 channel, RCA | ||
| Two-way Talk | Reuse audio input/output channel 1 | ||
| Interface | 1 HDMI, 1 VGA, | ||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | ||
| Display Split | 1/4 | 1/4/8 | |
| Privacy Masking | 4 rectangular zones (each camera) | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
| Video/Audio Compression | H.264 / G.711 | ||
| Resolution | 720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | ||
| Record Rate | Main Stream | 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |
| Extra Stream | CIF/QCIF(1~25/30fps) | ||
| Bit Rate | 48~6144Kb/s | ||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
| Sync Playback | 1/4 | 14/8 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||
| Backup Mode | USB Device / Network | ||
| Ethernet | RJ-45 port (10/100M) | ||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | ||
| Max. User Access | 128 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Internal HDD | 1 SATA port, up to 4TB | ||
| USB Interface | 2 ports(1 Rear), USB2.0 | ||
| RS485 | 1 port,For PTZ Control | ||
| Power Supply | DC12V/2A | ||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||
| Dimension(W×D×H) | 240(D) x 310(W)x 55(H) | ||
| Weight | 1.75KG(without HDD) | ||
