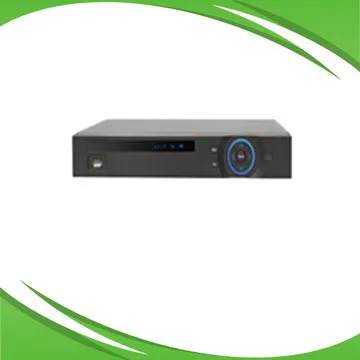

4CH HD-Cvi & IP & Analog Tribrid DVR
4CH HD-CVI & IP & Analog Tribrid DVREncode/Decode: 4*720P@25fps CVI:4*720P/4*960H/4*D1IPC: MAX 2*1080P1*4T ModelCVR2104Systemmain processor Hi3531 operating systemLINUX GUIdisplay1/4/8/9/16 Video image codec H.264(High Profile) Monitor qualityVGA;HDMIPlayback qualityAHD-H/AHD-M/AHD-L/D1 cod......
Send Inquiry
Product Description
Encode/Decode: 4*720P@25fps
CVI:4*720P/4*960H/4*D1
IPC: MAX 2*1080P
1*4T
| Model | CVR2104 | |
| System | main processor | Hi3531 |
| operating system | LINUX | |
| GUI | display | 1/4/8/9/16 |
| Video | image codec | H.264(High Profile) |
| Monitor quality | VGA;HDMI | |
| Playback quality | AHD-H/AHD-M/AHD-L/D1 | |
| code capacity | 16*AHD-H | |
| Multi-mode connection | CVI:4*720P/4*960H/4*D1 IPC: MAX 2*1080P | |
| Motion detection | support | |
| Audio | Audio compression | G.711A |
| intercom | support | |
| Video recording and playback | mode | Manual > alarm >motion detection > timing |
| playback | 8ch | |
| storage and backup | each channel | 720P ~20G/day;960H 12~20G/day; audio:691.2M/day |
| video record | HDD,Network | |
| backup | network,USB mobile HDD,USB DVD,SATA HDD | |
| Interface | Video input | 16 ch |
| Video output | 1 ch VGA,1 ch HDMI | |
| Audio input | 16 ch RCA | |
| Audio output | 1 ch RCA | |
| alarm input | 16 ch | |
| alarm output | 4 ch | |
| Network port | RJ45 10M/100M Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | 2*USB port | |
| HDD port | 8*4TB | |
| Wireless Port | 3G & WIFI (extension via USB port) | |
| Other | power | 3A |
| Consumption | < 15W(no HDD) | |
| Operating temperature | 0ºC-+55ºC | |
| Operating humidity | 10%-90% | |
| Dimension | 443*92*400mm | |
| weight | 7KG |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 -years-warranty since delivered out. Any quality problem during warranty ,we will responsible for that .
Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sampe, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose Unique Vision; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to learn more, You can contact us. We also welcome you to visit our factory in Shenzhen.
