China 2MP/3MP/4MP/5MP CCTV IP Ahd Tvi Cvi Camera Hybrid 4CH Digital Video Recorder DVR Xvr HVR

Product Description

Features:

4CH 5M-N (TVI/AHD/CVI/CVBS/IP) Hybrid DVR
Video Preview: 4CH Mixed 5MP Cameras Input
Video Output: 1x HDMI,1x VGA,1x CVBS
HDD: 2 SATA, MAX 6TB Each

Model NO.	HB-XVR5MN2H04
XVR System
Type	4CH 5M-N Hybrid DVR
Compression Method	H.265/H.264
Main Processor	3520DV400+2828_2G
Operating System	Embedded LINUX
HDD	2 SATA, MAX 6TB Each
Display & Recording
Video Input	4CH
Encode Capacity	1.AHD/TVI:4CH 5M-N@8fps recording 2. HVR:2CH 5M-N@12fps Analog + 2CH 1080P@25fps IP recording 3.NVR:4CH 1080P@25fps IP recording
Search Mode	Time, Date, Alarm, Motion Detection, Exact Search
Playback Mode	Normal Play, Fast Forward, Fast Rewind, Frame by Frame, Zoom In /Out
Playback & Backup
Decode Capability	MAX 4CH
Sync Playback	1.AHD/TVI: 2CH 5M-N@8fps playback 2.HVR:2CH 5M-N@25fps playback 3.NVR:4CH 1080P@25fps playback
Search Mode	ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions	Play, Pause, Stop, Fast play, Rewind
Backup Mode	USB Device/DVD/CD/Network
Video \| Alarm \| Audio

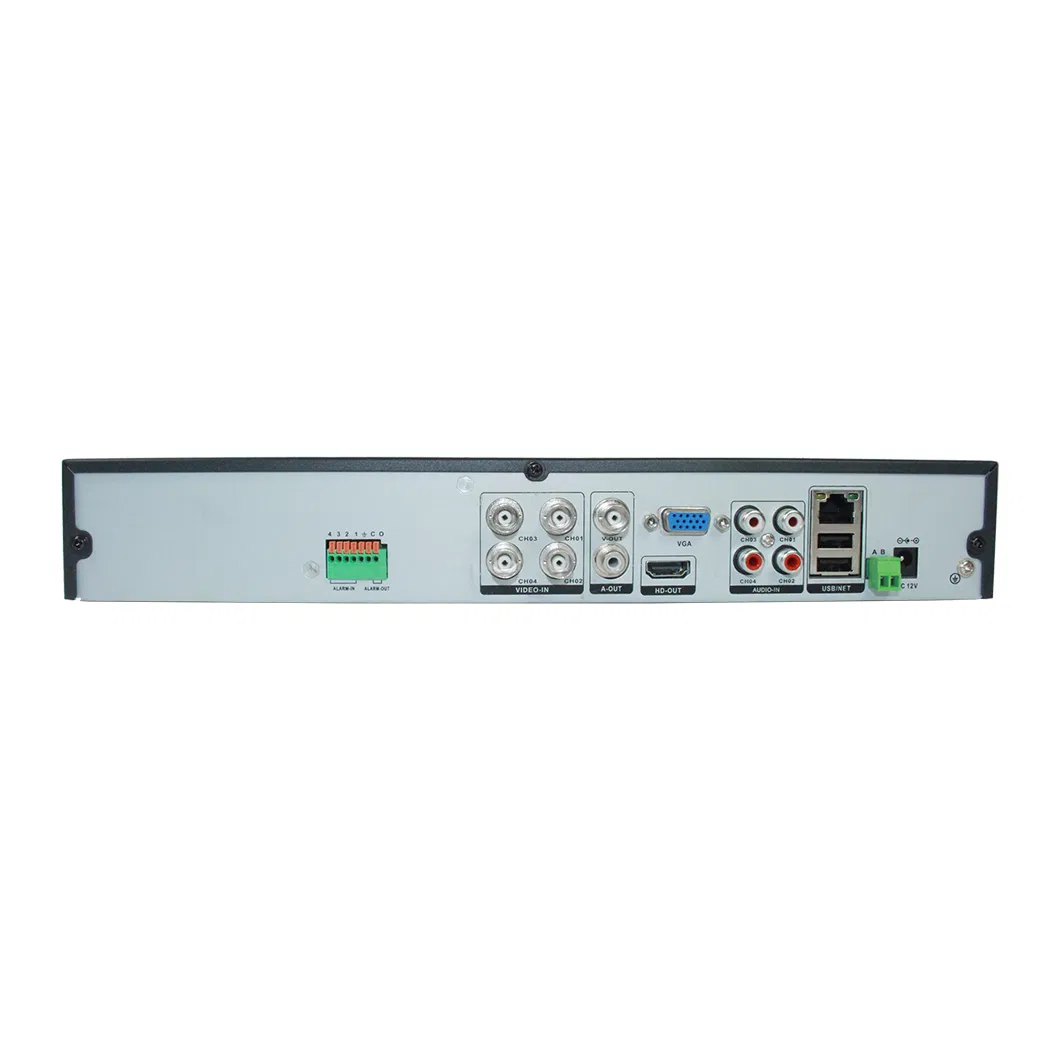

Video Output	1x HDMI,1x VGA,1x CVBS
Audio	4CH
Alarm	4CH
Network
Interface	RJ45 Port / 10M / 100M Adaptive IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP
CMS Software	Support
Cloud Support	iCloud Software one‐click online; Support IE Firefox Google Chrome Mac OS Safari
Language	28 kinds of Languages
Smart Phone	Iphone, Ipad, Android, Android Pad
General
Voltage	DC 12V
USB Port	2 USB2.0
PTZ	Pelco-D, Pelco-P
RS485	YES
Size	33525550 mm
Weight	3.0 Kgs (Without HDD)
