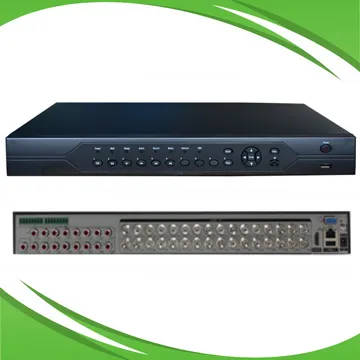

32CH 4MP 5 in 1 Xvr P2p Network DVR 2 SATA Hard Disk
32CH 4MP 5 IN 1 XVR P2P network DVR 2 SATA Hard DiskFeature: Support 32ch 4M unreal-time encoding;Support AHD, TVI,CVI, CVBS, IP video input;Support VGA maximum 1080P output, HDMI up to 4K outputBIG1U Case, 2 SATA(Up to 8TB);1*10/100/1000Mbps auto-sensing Ethernet port, RJ45 port;Automatic networkin......
Send Inquiry
Product Description
32CH 4MP 5 IN 1 XVR P2P network DVR 2 SATA Hard Disk
Feature:
Parameters:
Feature:
- Support 32ch 4M unreal-time encoding;
- Support AHD, TVI,CVI, CVBS, IP video input;
- Support VGA maximum 1080P output, HDMI up to 4K output
- BIG1U Case, 2 SATA(Up to 8TB);
- 1*10/100/1000Mbps auto-sensing Ethernet port, RJ45 port;
- Automatic networking support, a key to add equipment;
- Support the Onvif protocol;
- Support GB28181 (Optional);
- Cloud services, P2P, alarm information push to phone;
- Support remote access, support ARSP;
- Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL 3G, WIFI, IP search, Alarm center, etc ;
- Mobile phone remote monitoring (iOS, Android);
- Multi browser access (IE, Chrome, Firefox, Safari);
- Support for more than twenty languages;
- Perfect protection circuit,unique triple watchdog function
- Support WEB, CMS, VMS, MYEYE Platform;
- Support coaxial control
- Support coaxial upgrade
Parameters:
| Model | XVR7032 | |
| System | processor | Hi3531A |
| Video | Codec | H.264+/H.264 |
| preview | 32*4M@15fps(AHD);32*3M@18fps(AHD);32*1080P (5 in 1) | |
| Encode | 32*4M@8fps(AHD); 32*3M@10fps(AHD);32*1080P @15fps (5 in 1) ;32*720P(5 in 1) | |
| Decode | 16*4M@8fps(AHD);16*3M@10fps(AHD); 16*1080P @15fps (5 in 1) ;16*720P(5 in 1) | |
Multi-mode | Analog:32*4M@8fps(AHD); 32*3M@10fps(AHD);32*1080P @15fps (5 in 1) ;32*720P(5 in 1) | |
| Hybird:16*4M(analog)+16*4M(network) | ||
| IP: 32*1080P;16*3M ;8*5M | ||
| Playback | 16ch | |
| Audio | Compression | G.711a |
| Intercom | Support | |
| Management | Record mode | Manual>Alarm>Motion detection>Timing |
| Inquire mode | Inquire by Time/Calendar/Event/Channel | |
| Storage mode | HDD Storage, Network Storage | |
| Backup | Network, USB, SATA | |
| Interface | Video input | 32*BNC(Support Coaxitron) |
| HDMI output | 1*HDMI (MAX:4K) | |
| VGA output | 1*VGA (MAX:1080P) | |
| Audio I/O | 16/1 | |
| Alarm I/O | 8/1 | |
| Ethernet port | 1*10/100Mbps Ethernet port, RJ45 port | |
| PTZ control | 1*RS485, 1RS232;Support for multiple PTZ protocol | |
| USB Port | 2*USB2.0 ports | |
| HDD | 2*SATA interface (Up to 8TB) | |
| General | Temperature | 0 ºC - + 55 ºC |
| Humidity | 10% -90% RH | |
| Power supply | 12V/4A | |
| Consumption | <10W(Without HDD) | |
| Weight | Around 3KG | |
| Dimension | 440mm(L)*290mm(W)* 50mm(H) |
