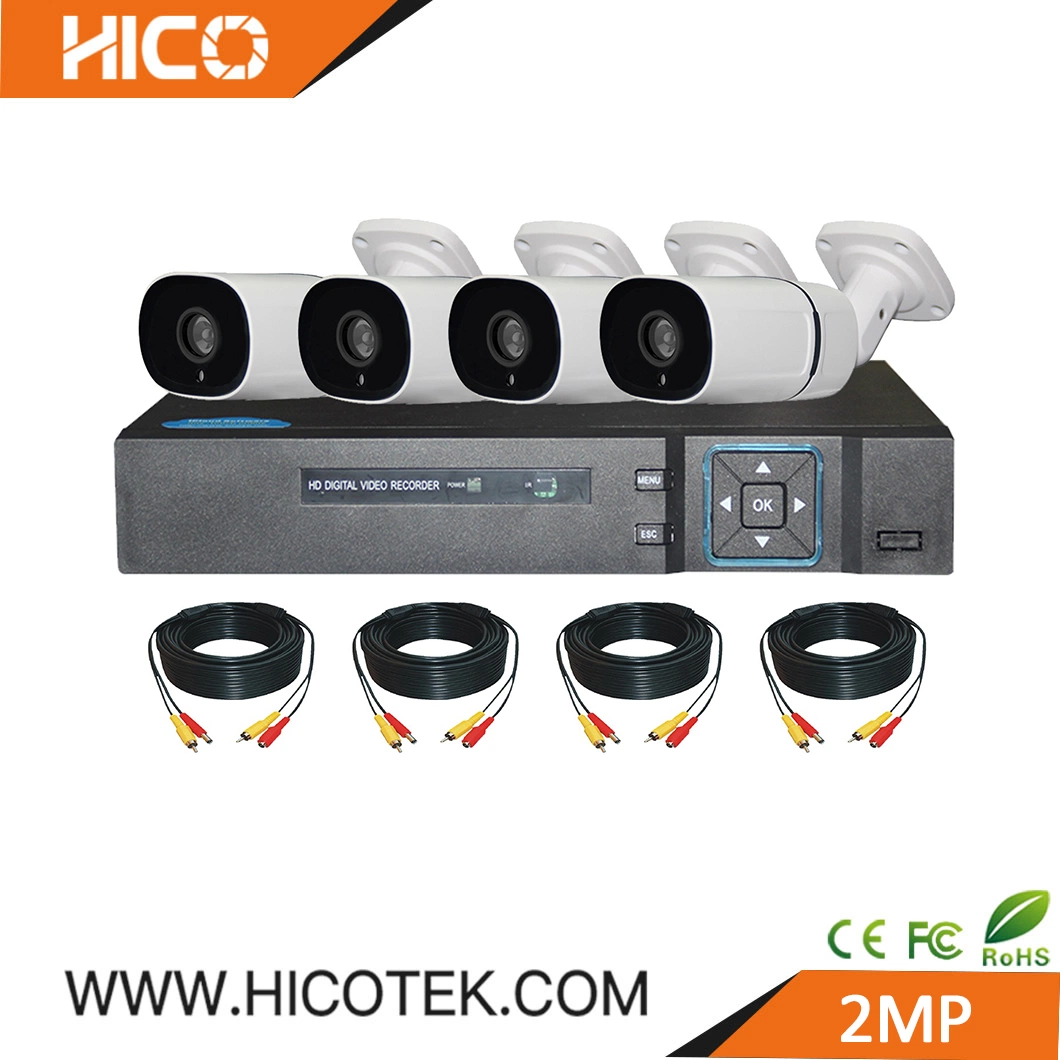

4CH 1080P Ahd Cvi Tvi Analog Cameras and Hybrid HVR Xvr NVR DVR IP Video Recorder DIY Home Security System Kits
HCH-AH4204TFeatures:XVR:1 x 4CH 1080N Hybrid DVR with HISILICON Chipset1 x Power Adapter1 x MouseCAMERA:4 X 1080P IP66 Metal Bullet Camera with 3.6mm lens, IR30MAccessories:1 x DC12V 5A Power Adapter with 5 split cable4 x 20M BNC+DC Cable Model NO.HCH-AH4204T KITCamera SystemTypeAHD CameraResolution......
Send Inquiry
Product Description
HCH-AH4204T

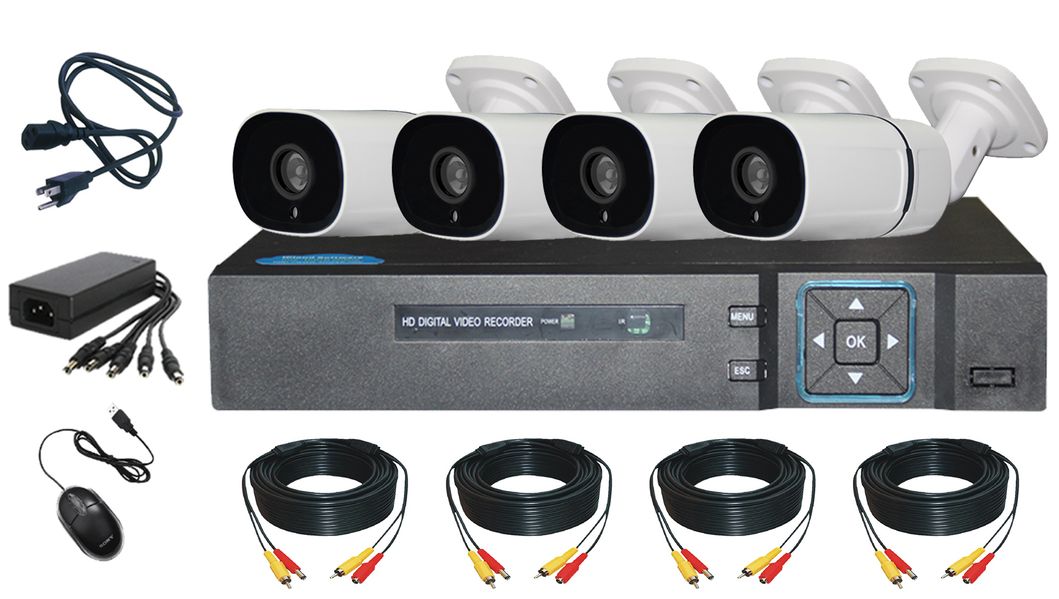

Features:
XVR:

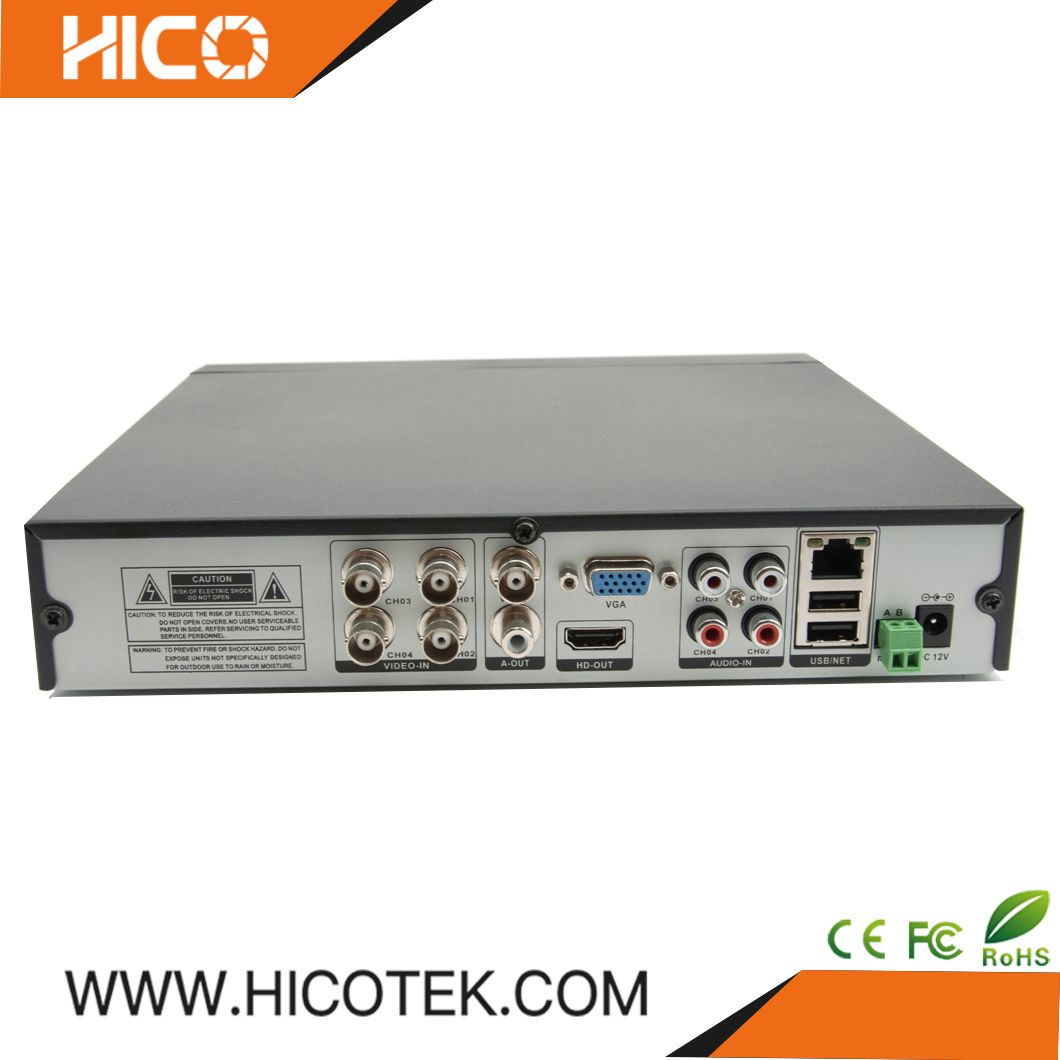

1 x 4CH 1080N Hybrid DVR with HISILICON Chipset
1 x Power Adapter
1 x Mouse
CAMERA:
4 X 1080P IP66 Metal Bullet Camera with 3.6mm lens, IR30M
Accessories:
1 x DC12V 5A Power Adapter with 5 split cable
4 x 20M BNC+DC Cable
Features:
XVR:
1 x 4CH 1080N Hybrid DVR with HISILICON Chipset
1 x Power Adapter
1 x Mouse
CAMERA:
4 X 1080P IP66 Metal Bullet Camera with 3.6mm lens, IR30M
Accessories:
1 x DC12V 5A Power Adapter with 5 split cable
4 x 20M BNC+DC Cable
| Model NO. | HCH-AH4204T KIT |
| Camera System | |
| Type | AHD Camera |
| Resolution | 2M/1080P |
| Effective Pixels | 1920*1080 |
| TV System | PAL/NTSC Adjustable |
| Lens | 3.6mm (Default)/2.8mm/4mm/6mm Optional |
| IR Distance | 30M For Bullet |
| Noise Reduction | 3DNR |
| IR Cut Filter | Yes |
| OSD/UTC | YES |
| Waterproof | IP66 |
| Operation Temperature | -20ºC ~ +60ºC RH95% Max |
| Power | DC12V±10%, 350mA Each |
| XVR System | |
| Type | 4CH 1080N 5-IN-1 DVR |
| Compression Method | H.265/H.264 Optional |
| Main Processor | HISILICON |
| Operating System | Embedded LINUX |
| HDD | 1 SATA, MAX 3TB |
| Display & Recording | |
| Video Input | 4CH |
| Encode Capacity | AHD / TVI / CVI:4CH 1080N@25fps recording |
| Search Mode | Time, Date, Alarm, Motion Detection, Exact Search |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Frame by Frame, Zoom In /Out |
| Playback & Backup | |
| Decode Capability | MAX 4CH |
| Sync Playback | AHD / TVI / CVI: 4CH 1080N@25fps playback |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Backup Mode | USB Device/DVD/CD/Network |
| Video | Alarm | Audio | |
| Video Output | 1x HDMI,1x VGA,1x CVBS |
| Audio | 1CH |
| Network | |
| Interface | RJ45 Port / 10M / 100M Adaptive IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP |
| CMS Software | Support |
| Cloud Support | iCloud Software one‐click online; Support IE Firefox Google Chrome Mac OS Safari |
| Language | 28 kinds of Languages |
| Smart Phone | Iphone, Ipad, Android, Android Pad |
| General | |
| Voltage | DC 12V |
| USB Port | 2 USB2.0 |
| PTZ | Pelco-D, Pelco-P |
| RS485 | YES |
| Kits Package Size | 435*170*270mm |
| Kits Net Weight | 4.5 Kgs (Without HDD) |
