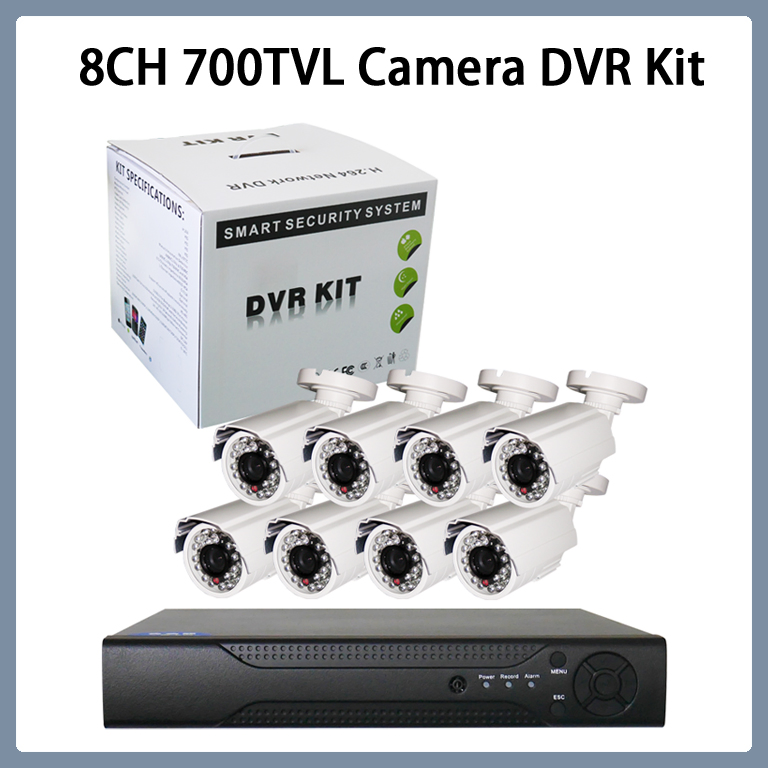

8CH 700tvl 1/3" Sony 960h CCD Outdoor Cameras DVR Kits
Key Features:8CH DVR H. 264 video compressionEmbedded Linux operating systemHigh performance embedded microprocessor HI3515Video Recording: D1 or 960HEncode Capacity: 50/60fps (D1) 200/240 fps (CIF)Real-time playback of audio and videoDual-stream support8CH vedeo input, 1CH BNC output 1CH VGA output......
Send Inquiry
Product Description
Key Features:
8CH DVR H. 264 video compression
Embedded Linux operating system
High performance embedded microprocessor HI3515
Video Recording: D1 or 960H
Encode Capacity: 50/60fps (D1) 200/240 fps (CIF)
Real-time playback of audio and video
Dual-stream support
8CH vedeo input, 1CH BNC output 1CH VGA output or
1CH audio input and 1 channel audio output
Support maximum 1X2TB SATA HDD
2xUSB port for mouse, backup and upgrade
Support CMS and IE browser
Support Symbian, Windows Mobile, BlackBerry, Android and iPhone mobile surveillance

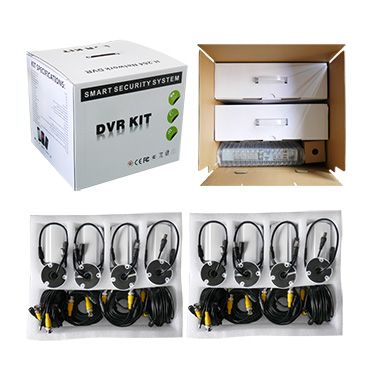

Packing List
Cameras Weatherproof IR * 8
8CH DVR * 1
DC12V/3A power to the camera * 1
DC12V/2A Power To DVR * 1
20M Power & Video Cable
Line 8 *
Remote control * 1
Mouse * 1
1 * CD plate
Quick Installation Guide * 1
Screws
MOQ: 100sets
| Model | SV60-DK08W270 |
| DVR Specifications | |
| System | |
| Operating system | Embedded LINUX |
| System Resources | Pentaplex function:live,recording,playback,backup & remote access |
| User Interface | GUI,on-screen menu tips |
| Display | 1/4 |
| Video | |
| Video Standard | PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
Monitoring quality | PAL ,D1(704×576);NTSC,D1(704×480) |
| Playback quality | D1/HD1/CIF/QCIF |
| Total frame rate | D1:PAL 100/120fps |
| Video Input | 8ch |
Video Output | 1BNC, 1 VGA,1HDMI |
| Audio | |
Compression standard | G711A |
| Audio Input | 4ch |
| Audio Output | 1ch |
| Voice Intercom | Support |
| Video recording and playback | |
| Recording mode | Manual>Alarm>Video Detection>Continuous |
| Local playback | 4ch |
| Video Query | Time/Date, Alarm, Motion Detection & exact search ( accurate to second) |
| Storage and backup | |
| Take up hard disk space | Space Occupation,CIF:5G/day@channel,D1:20G/day@channel |
| Video Save | Hard disk,USB ,HDD,Network |
| Backup | USB,HDD,Network |
| Interface | |
| Alarm Input/Output | No |
| Network Interface | RJ45 10M/100M |
| PTZ Interface | NO |
| USB Interface | 1 USB 2.0 port,1 USB MOUSE |
| HDD Interface | 1 SATA port ( Maximum 2T SATA HDD ) |
| Automatic Switcher | NO |
| 12V output | NO |
| Network | |
| Network Interface | RJ45 10M/100M |
| Network Protocol | Supports TCP/IP, DHCP,DDNS |
| Internet Viewing | Internet Explorer 6 or Higher |
| Mobile Phone Viewing | Symbian, Windows Mobile, iPhone, Blackberry and Android Phone |
| General | |
| Power supply | 12V/2A |
| Power consumption | <15W(without hard disk) |
| Operating Temperature | 0°C -+55°C |
| Humidity | 10%~90% |
| Dimensions | 34*9.5*27cm |
| Weight | 1.5KG(without hard disk) |
| Camera Specifications | |
| Video | |
| Image Sensor | 1/3'' Sony 960H CCD Effio-E DSP |
| pixels | PAL : 712(H)x582(V) NTSC : 712(H)x492(V) |
| Sync system | Inter line Synchronization |
| Horizontal resolution | 700TV line |
| Minimum illumination | 0.5LUX/0LUX(LED ON) |
| S/N Ratio | More than 48dB (AGC off) |
| Gamma characteristic | 0.45 |
| Day&Night | Auto IRCUT Switch |
| AGC | Auto |
| White balance | Auto White Balance(AWB) |
| AGC | Auto |
| B. L. C | B. L. C Back Light Compensation (Auto) |
| Electronics shutter | PAL: 1/50~1/100, 000 sec |
| Video output | 1Vp - p75 ohms, Negative |
| GENERAL | |
| LENS | 3.6MM/4MM/6MM |
| IR LEDS | 24PCS,Ø5 LEDS |
| IR Distance | IR range 20m |
| Power input | DC12V |
| Operation temperature | - 10 ° C~+45 ° C RH95%Max |
| Storage temperature | - 30 ° C~+60 ° C RH95%Max |
