Product Description

What's your Product Specification

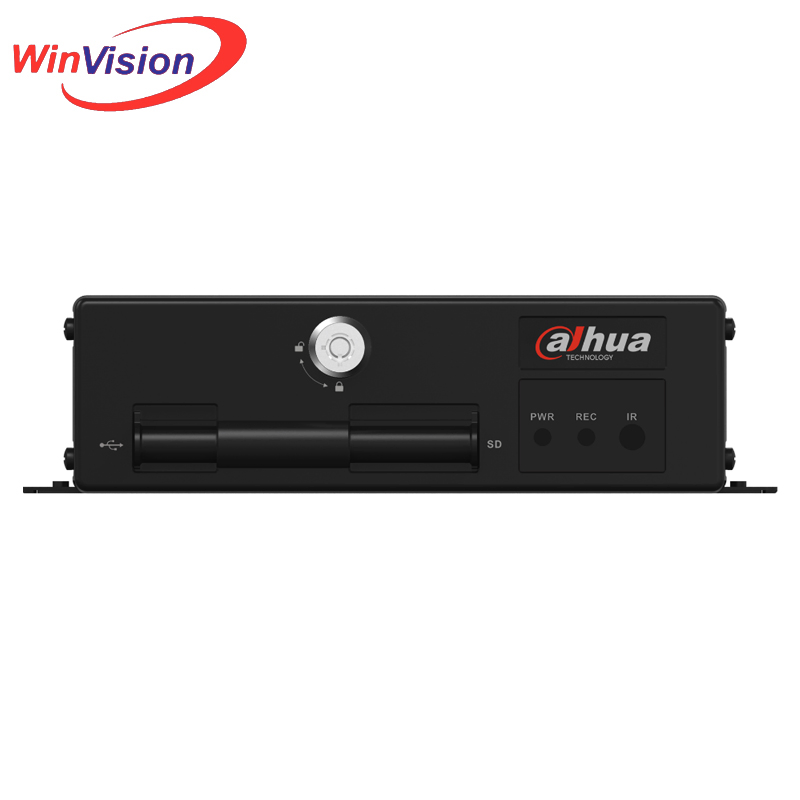

DVR0404ME-SC

4 Channel Mobile Digital Video Recorder

>Support 4 channel@ 960H realtime recording
>H.264 dual-stream video compression
>TV video output
>Support 1 SD card, 2 USB2.0
>Aviation connectors adopted
>Multiple monitoring: Web viewer, CMS(DSS) & DMSS

Model		DH-DVR0404ME-SC
System
Main Processor		Embedded processor
Operating System		Embedded LINUX
Video
Input		4 channel
Standard		NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input		4 channel
Output		1 channel
Two-way Talk		Reuse audio input/output channel 1
Display
Interface		2 TV(aviation port)
Resolution		800x600
Display Split		1/4
Privacy Masking		4 rectangular zones (each camera)
OSD		Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression		H.264 / G711A
Resolution		960H(960×576/960×480) / D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate	Main Stream	Full channel @960H (1~25/30fps)
	Sub Stream	CIF/QCIF(1~25/30fps)
Bit Rate		48~1024 Kb/s
Record Mode		Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval		1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events		Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Video Detection		Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input		7 channel
Relay Output		2 channel
Playback & Backup
Playback Channel		1
Search Mode		Time/Date, Alarm, Motion Detection & Exact search (accurate to second)
Playback Functions		Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode		USB Device / SD Card / Network
Network
Ethernet		RJ-45 port (10/100M)
3G/WiFi		optional
GPS		Built-in high accurate GPS module(optional)
Network Functions		HTTP, IPv4, TCP/IP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter
Max. User Access		10 users
Storage
SD Card		1 SD Card (No capacity limit)
Auxiliary Interface
USB		2 ports (1 front, 1 rear), USB2.0
RS232		1 port, For PC communication & Keyboard
RS485		1 port, For PTZ control
General
Power Supply		+6-36V
Power Consumption		<8W(without SD card)
Working Environment		-30°C ~+60°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H)		160mm×138mm×48mm
Weight		1.0KG(SD Card Included)
Vibration-proof		5Hz~300Hz: X / Y / Z each direction 8 hours 5Hz~11Hz: Vibration amplitude 10mm 11Hz~300Hz: 50m/s2
