1.3MP 720p Security Access Control Door Bell Camera

Product Description

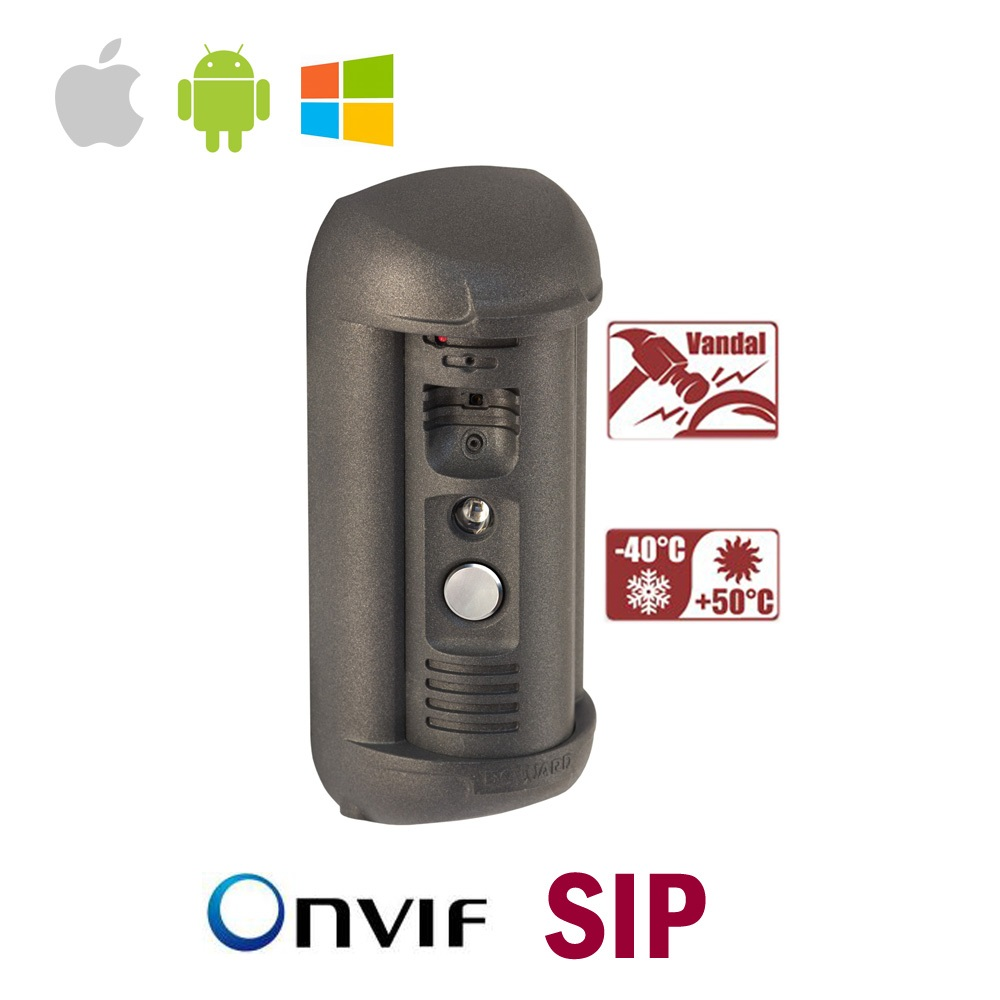

1.3MP 720P Security Access Control Door Bell Camera Zinc alloy video doorphone

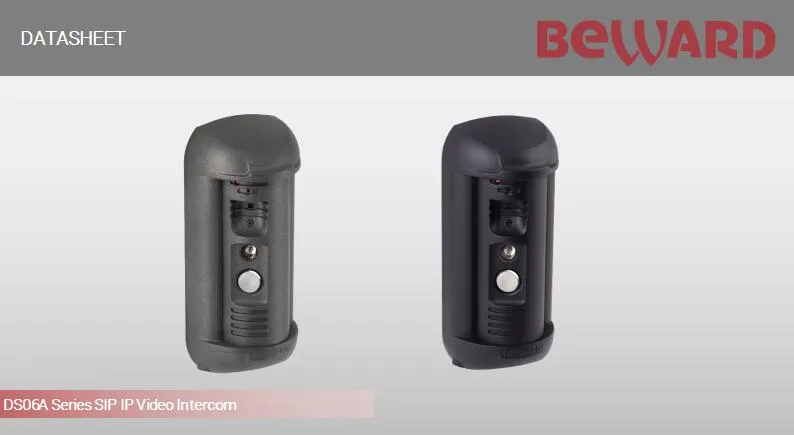

The vandal-resistant Beward DS06A door station unit is designed to build IP video intercom systems in an existing LAN,
There is no need to use additional wires and any equipment.

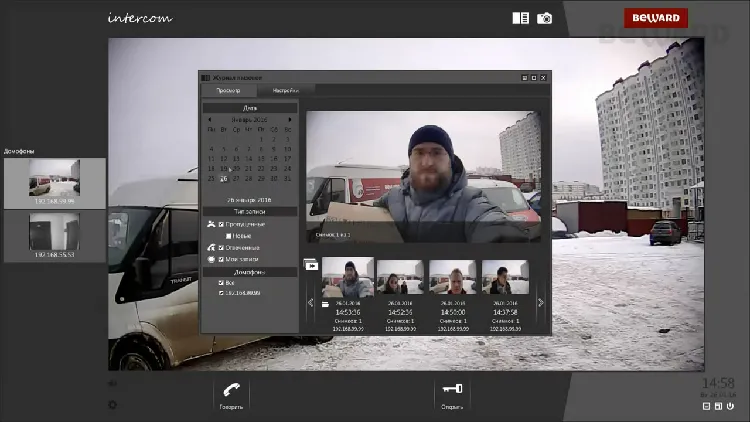

You just ought to install the Beward Intercom software on your PC, laptop, or mobile device and set it up.
The software is supplied with the door stations. There is no need to connect an internal display.
The solution has the advantages of competitive price, easy installation, real-time remote access to the door stations.

General
Image sensor	1,3 MP, Color, 1/3'' SONY Exmor, Day/Night
Sensitivity	0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR Illumination)
Lens	2.8 mm, F2.0
Field of view	80° (horizontal), 53° (vertical),

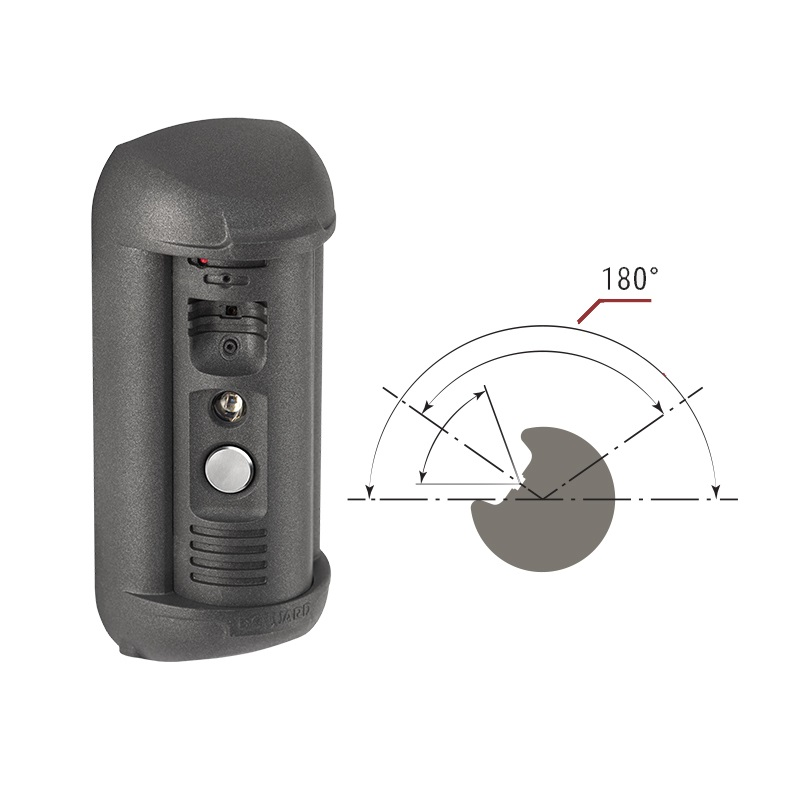

Field of view adjustment	-45 ~ 45°
Zoom	Digital, via the web-interface
WDR	Digital, 3 precets
Noise reduction	2D/3DNR (level adjustment), Smart NR
Shutter time	1/25 ~ 1/8000 s (Auto, maximum value setting)
Signal/Noise ratio	50 dB or greater
Synchronization	Light source synchronization 50, 60 Hz
Ringing tone patterns	Set by the user
Other features	Electric Mechanical IR filter, Progressive Scanning
Video
Compression	H.264 BP/MP, Motion JPEG
Video streaming	Dual codec:: Н.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution	Main stream: 1280x960 (SXGA), 1280x720 (HD)
	Sub stream: 720x576, 640х480, 320x240
Frame rate	Up to 25 fps in all resolutions
Bit rate	32 kbps ~ 16 Mbps
Image settings	Brightness, contrast, sharpness, saturation, exposure,
	color grading, hue, quality, rotation,
	flip (vertical/horizontal), ART, white balance,
	exposure time (set gain and minimum value)
Subtitles	Title, date/time, weekday, bit rate,
	Frame rate, number of connections
Audio
Audio output	Built-in speaker
Audio input	Built-in microphone
Compression	G.711 (a-law, u-law), G.726
Other features	Duplex
Illumination
IR illumination	IR LED (3rd generation, 1 pcs)
Control	Auto ON/OFF
Operating mode	By IR sensor, by video viewing, continuous
Wavelength	850 nm
IR distance	Up to 10 m
Network & Interfaces
Network interface	10Base-T/100Base-TX
Protocols	TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP,
	DDNS, DHCP, PPPoE, RTP, RTSP, UDP, NTP,
	ONVIF v.2.41, Modbus TCP, Camdrive
Alarm output	1 channel (NO mode)
Connection	DHCP, static IP address
Users	Up to 3 accounts
Recording & events
Events	Motion detection, network failure, call button pressing
Motion detection	Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification	At events: Images
FTP, memory card	At events: Images, video
Operation
Power	12 V 0.5 А (DC)
Power consumption	Max. 5 W
Commutation current	Up to 1 А
Operating temperature	-40°С ~ +50°С
Ingress protection	IP54
Housing	Vandal resistant
Hosing material	Metal
Dimensions	73х166х51 mm
Weight	570 g
Color	Dim black / Metallic grey
Control	Beward Intercom professional software (included)
System requirements	Microsoft Internet Explorer 9.0 Windows 8/7/Vista,
	IOS 6.0-9, Android 4.0 later
Package contents
Units	Door station with installed memory card
	Bracket (2 parts)
	Secret screw
	RJ-45 connectors (2pcs)
	Junction box
	Fixing set
	Сlip connector
	CD with manuals and software
	Package

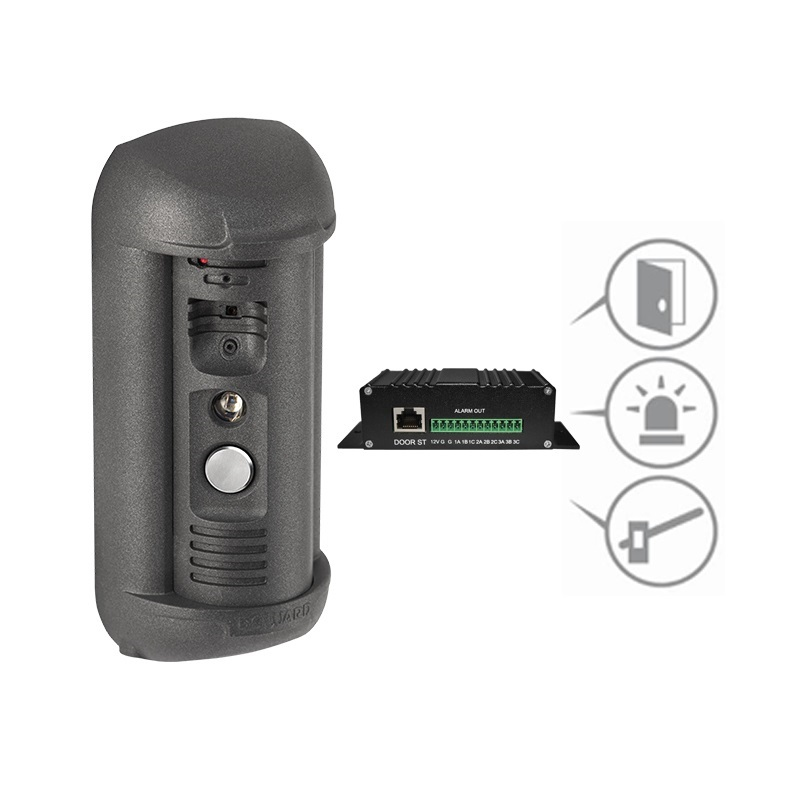

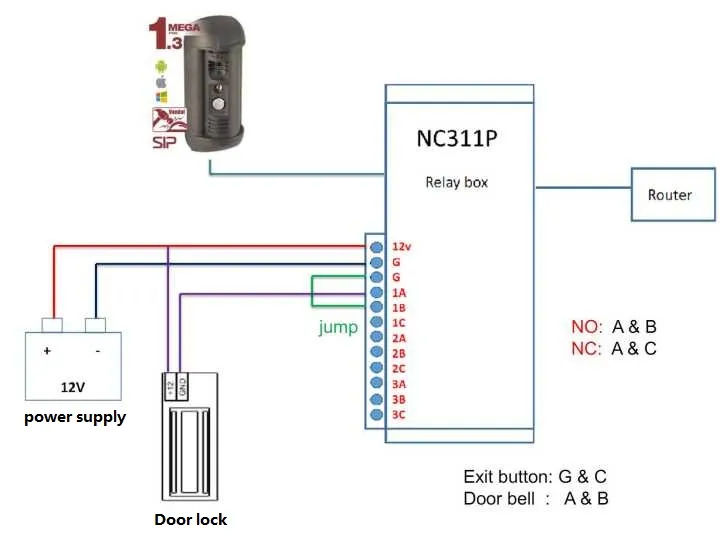

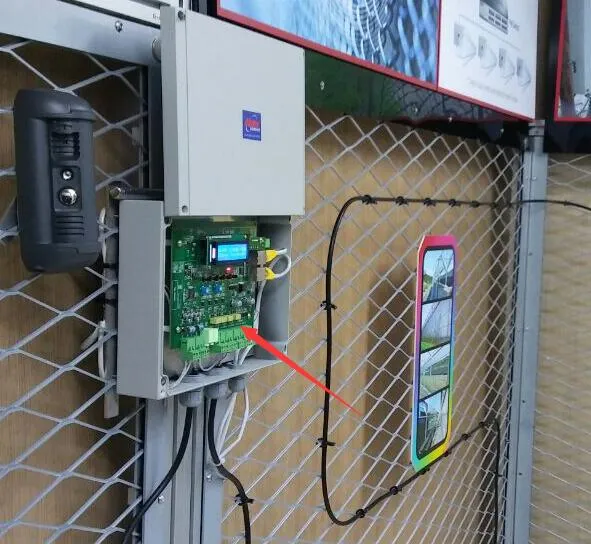

The video door station DS06AP-3L is equipped with a 3 channel controller.
It's possible to use the controller with previously purchased DS06AP door stations as well.

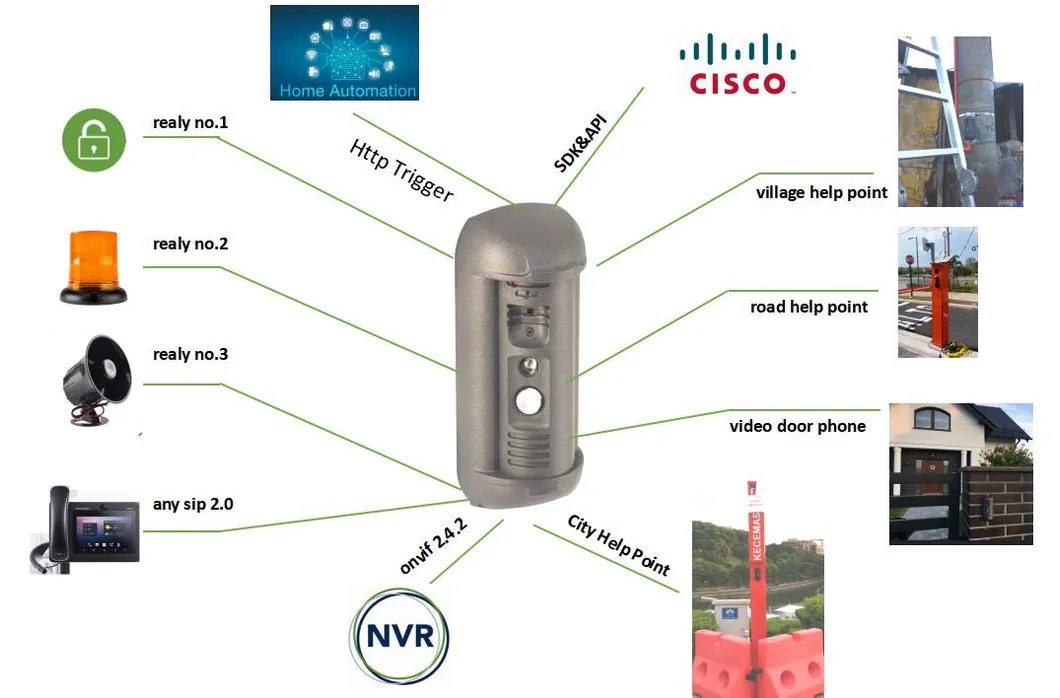

one controller allows you to connect to the IP video intercom up to 3 executive units,
there is available one of the following control functions:

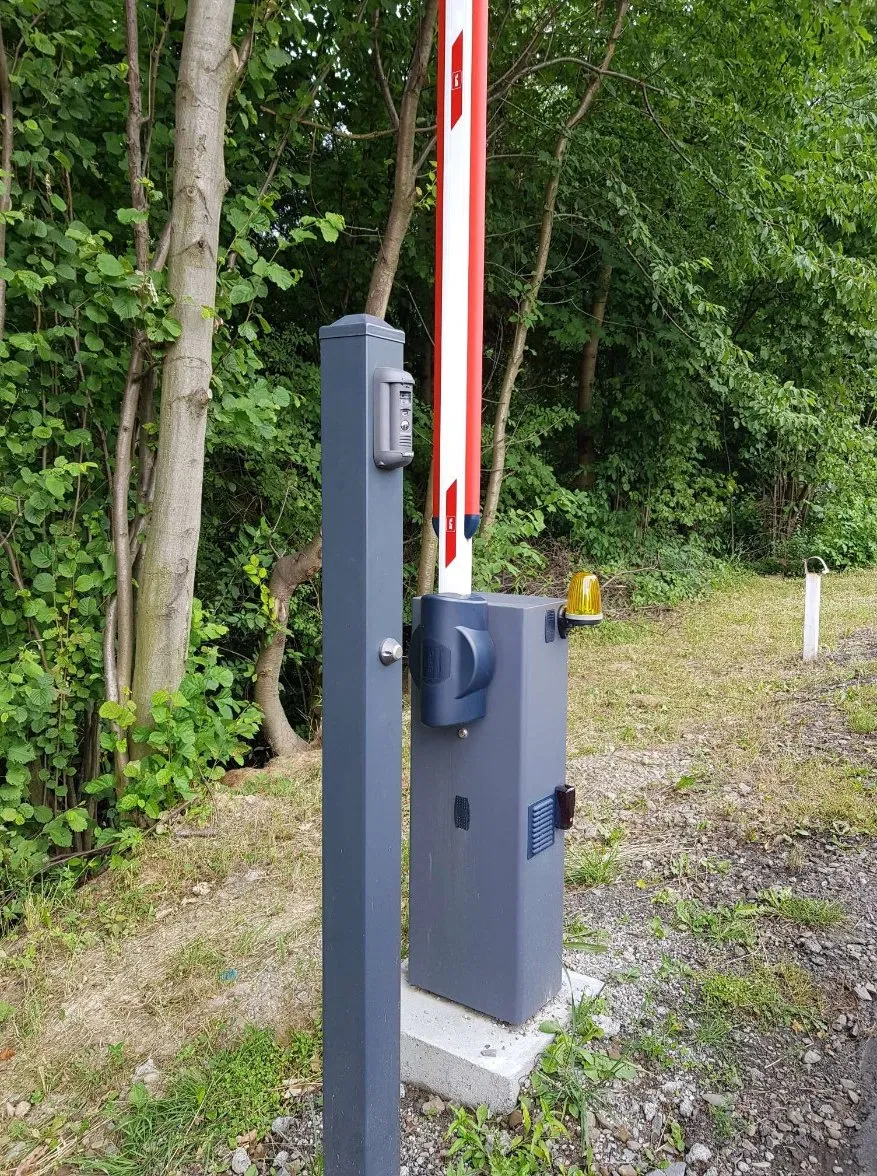

1. The opening of doors, gates barriers

2. The lighting system activating

3. The system activating, etc.

1.3MP 720p Security Access Control Door Bell Camera

We offer free management software and mobile apps, SDK/API files are available for Integration works.
