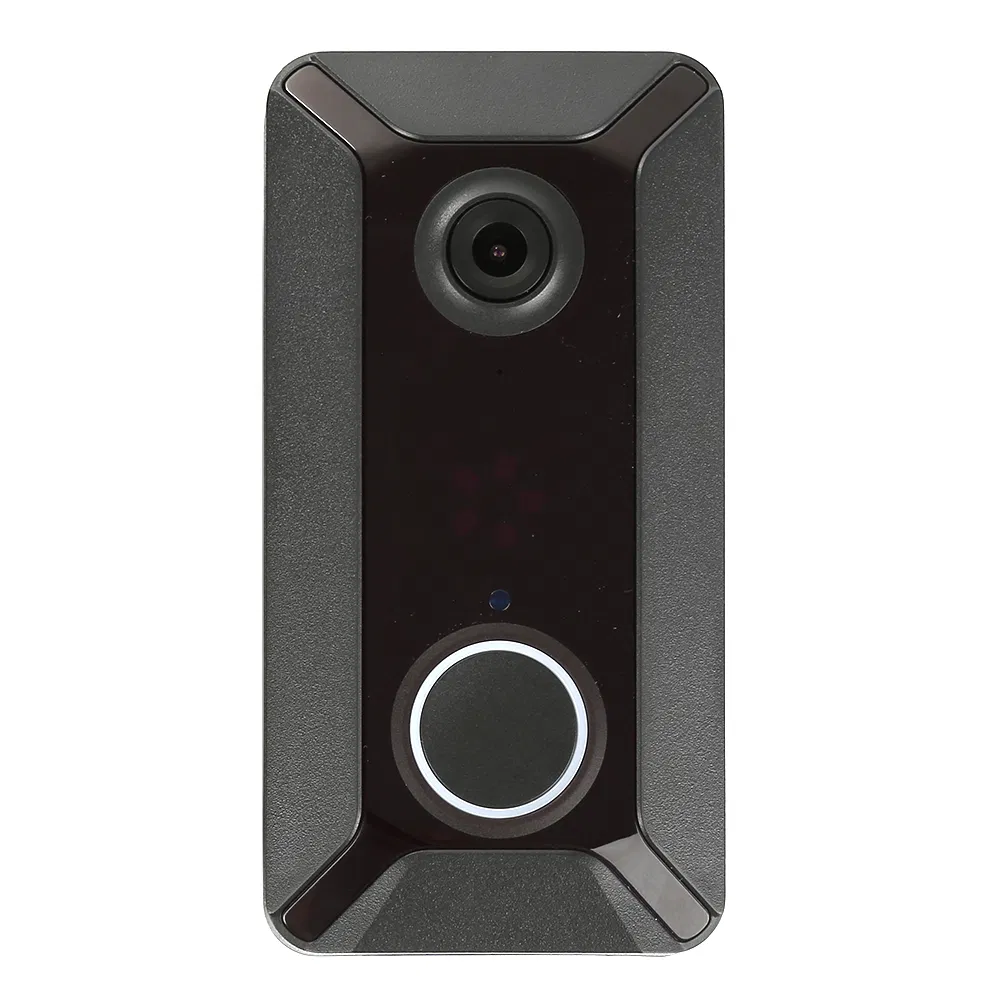

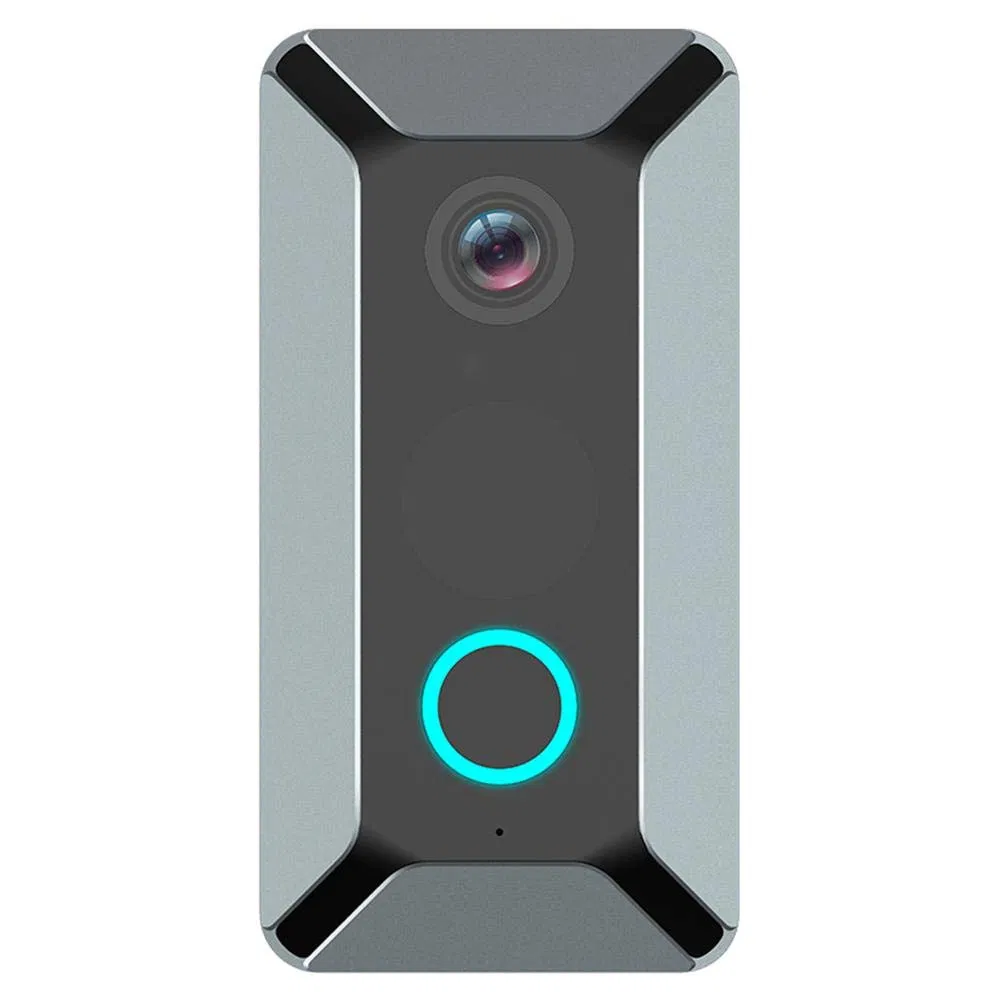

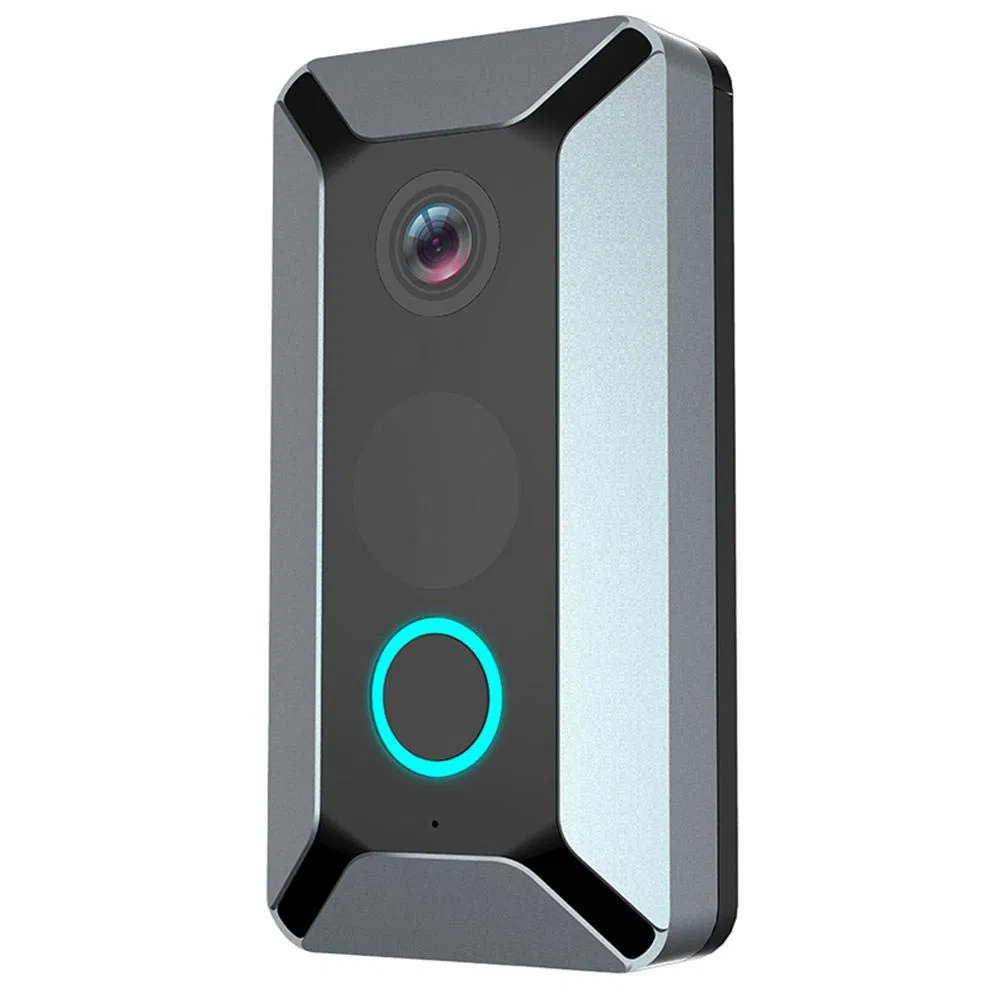

Security WiFi Doorbell Remote Video Voice Phone Monitoring

Features:

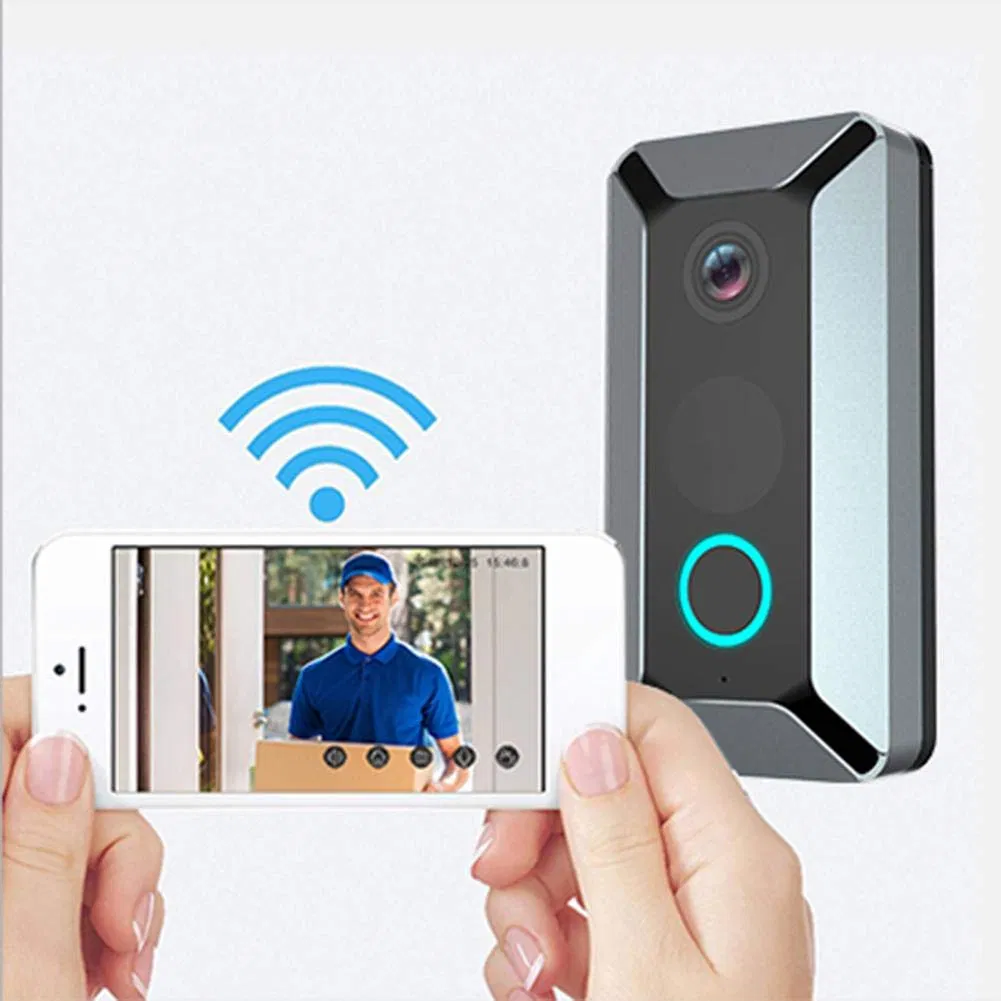

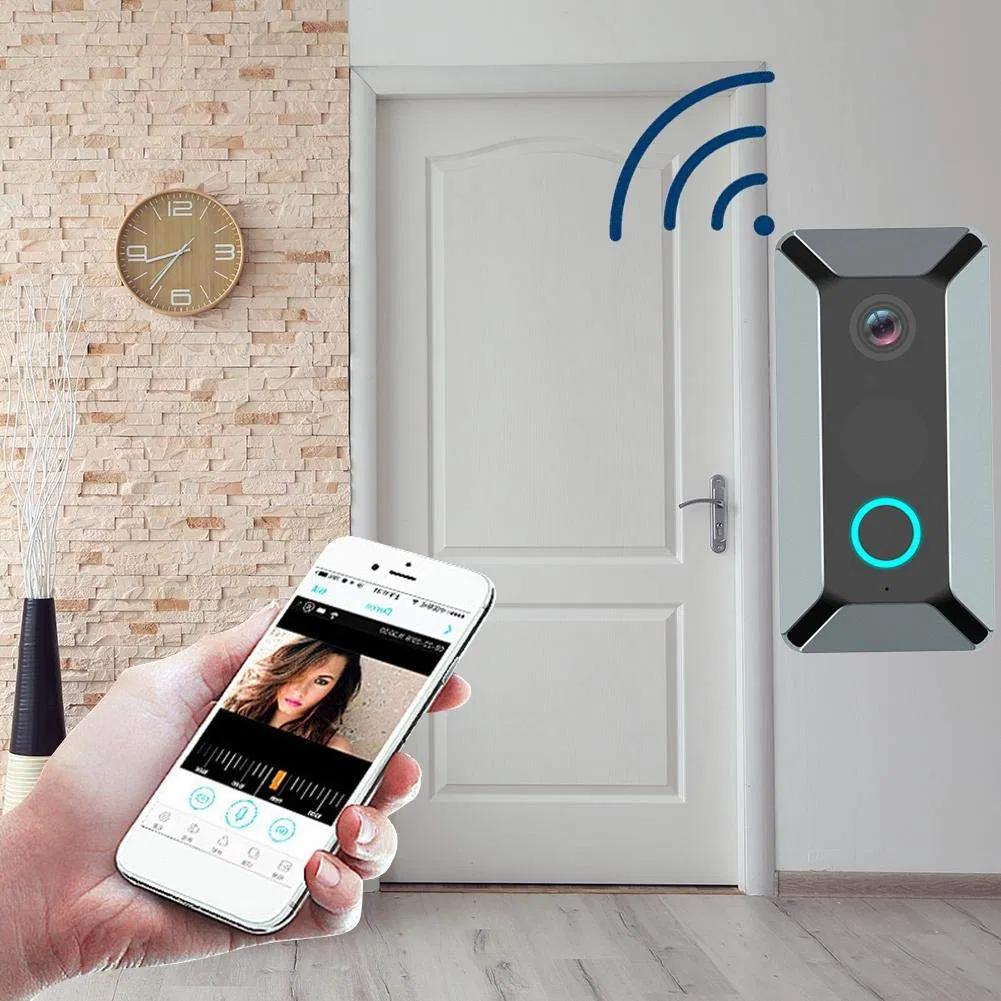

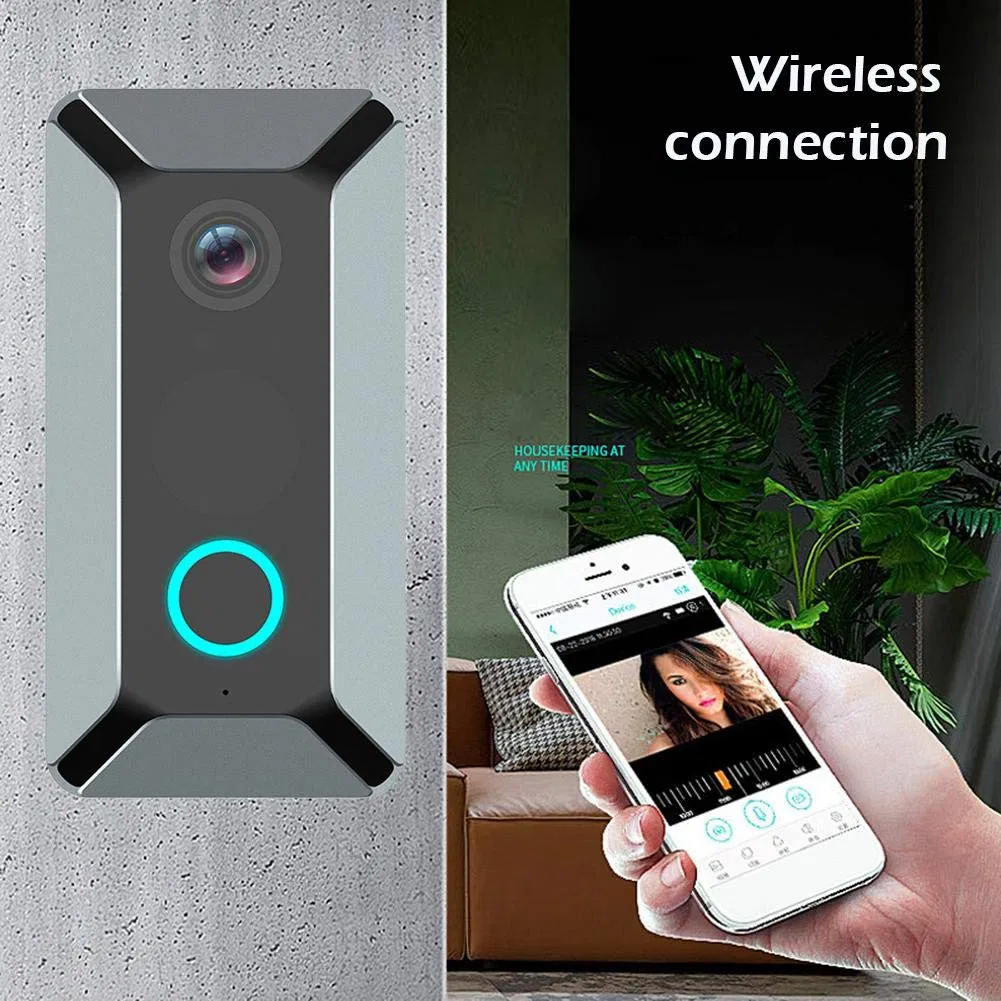

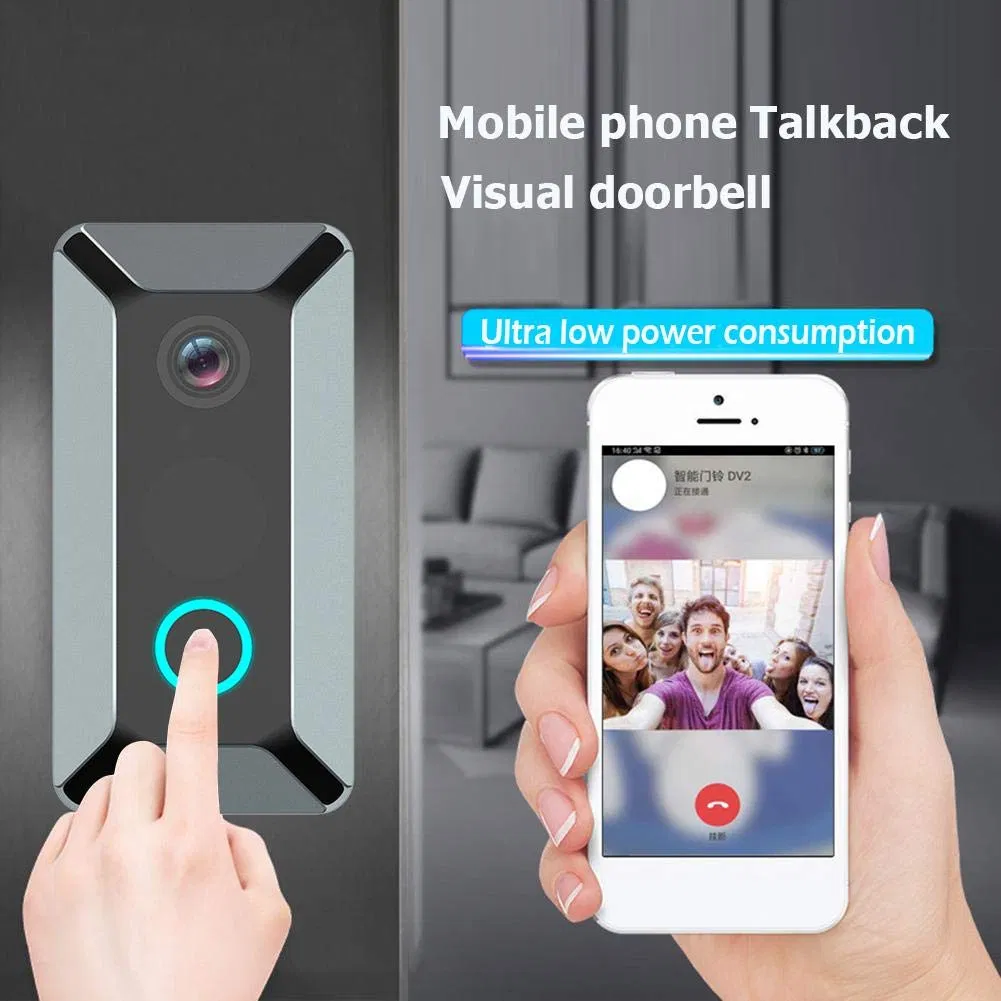

Wireless connection, ultra-low power consumption, remote active wake up, can support multiple accounts to watch online at the same time.

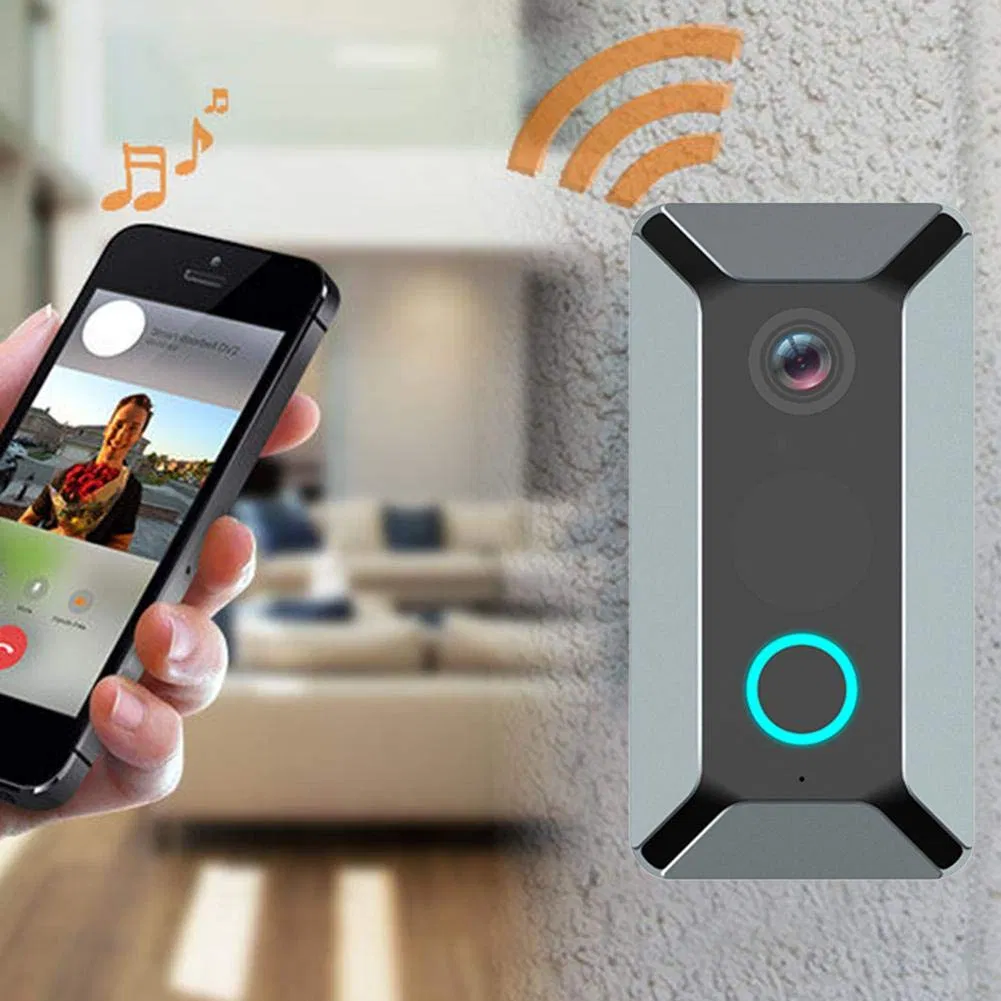

Purpose: Can make video voice calls when Guests visit, and take short-term video recording, the host does not need to open the door to know the information of the visitors.

Master (CPU) : GM8135S, built-in ARM926 Max.440 MHz High speed video processor

Sensor: GC1054 CMOS sensor

Lens: 140° Wide-angle lens, 1 million

Sensor performance: Support automatic white balance, automatic gain control, automatic backlight compensation

SNR: >= 39dB

Minimum Lighting: 0.8Lux/F1.4 (color mode), 0.3Lux/F1.4 (black white mode)

Night Vision: Double filter automatic switch, 6pcs 850nm diameter 28 mil high power infrared lamp, 8m/26.25ft Night Vision

Video format: H.264

Video size/frame rate :720P/15fps

Recording mode: 1. Press the button to trigger recording, 2. Preview recording

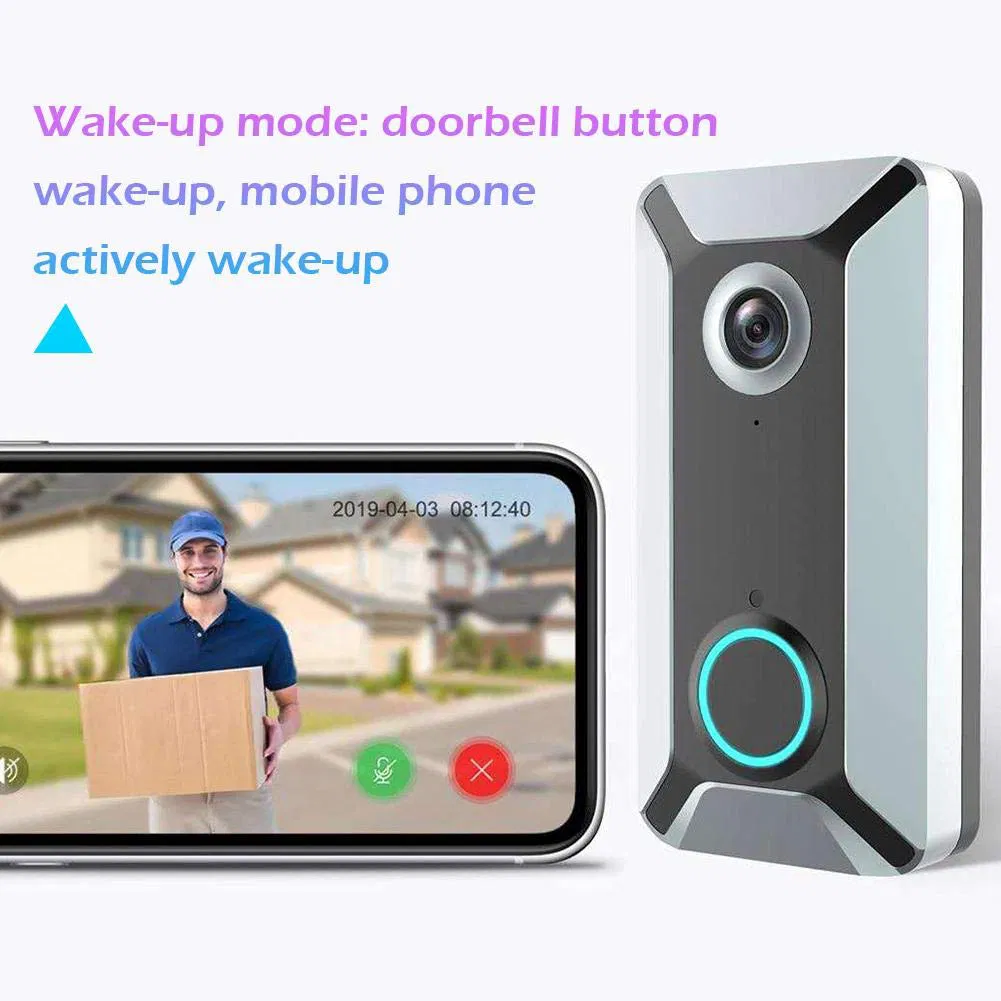

Wake Up Way: 1. Doorbell button wake up, 2. Mobile phone active wake up

Battery Type/Capacity: 2 X 18650 2600mAh batteries, standby for about 3 months

Network Protocol: TCP/IP,HTTP,TCP,UDP,DHCP,DNS,DDNS,NTP,RTP,P2P,etc

WIFI Connection: Support (802.11b/g/n)

Storage: Support cloud storage function, free cycle for 3 months unlimited capacity usage (hardware without TF card function temporarily)

Working Voltage: DC 5V 1.5A

Working Current: 365mA

Charging Voltage: DC 5V/1A

Size: 128 X 65 X 32mm/5.04 X 2.56 X 1.26"

Storage Temperature: 0-50C

Working Temperature: -10-50C

Package Included:
--1 x V6 Wireless WIFI Video doorbell
--5 x Mounting Screws
--1x Mounting bracket
--2 x Hardwire/ security screws
--5 x Anchors
--1x User Manual
--2 x Batteries
--1xTape
--1x Package box

FAQ

A: ODM/OEM Services
Q1: May I buy samples from you?
A: Sure, sample order is available for you to test our quality and service.

Q2: What's the leading time?
A: 2~5 days for sample orders ,bulk order according to the different product .


Q3: Do you have any MOQ limit ?
A: Our minimum order qty is 20pcs each model ,but we accept small order as trail order .

Q4: can I get your price list ?
A: Yes, pls tell us the model number and order quantity ,then we will offer you the price by email.

Q5: How will you deliver the goods to me?
A:We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea container.

Q6: How to proceed the order if I have logo to print?
A: First, artwork for visual confirmation, and next is sample picture or sending sample to you for confirmation, finally we will go to mass production.

Q7: Can i do my owe design package box ?
A: yes. pls upply the artwork, and then we can print the box with your own design.

Q8: Do you have any After-Sales service?
A: Yes! We have professional After-sales Dept. For mega project, our technical person can also provide the in-door installation.
