Home > Products > Video Door Phone > HD Memory Doorphone Home Security 7 Inches Video Door Phone Interphone

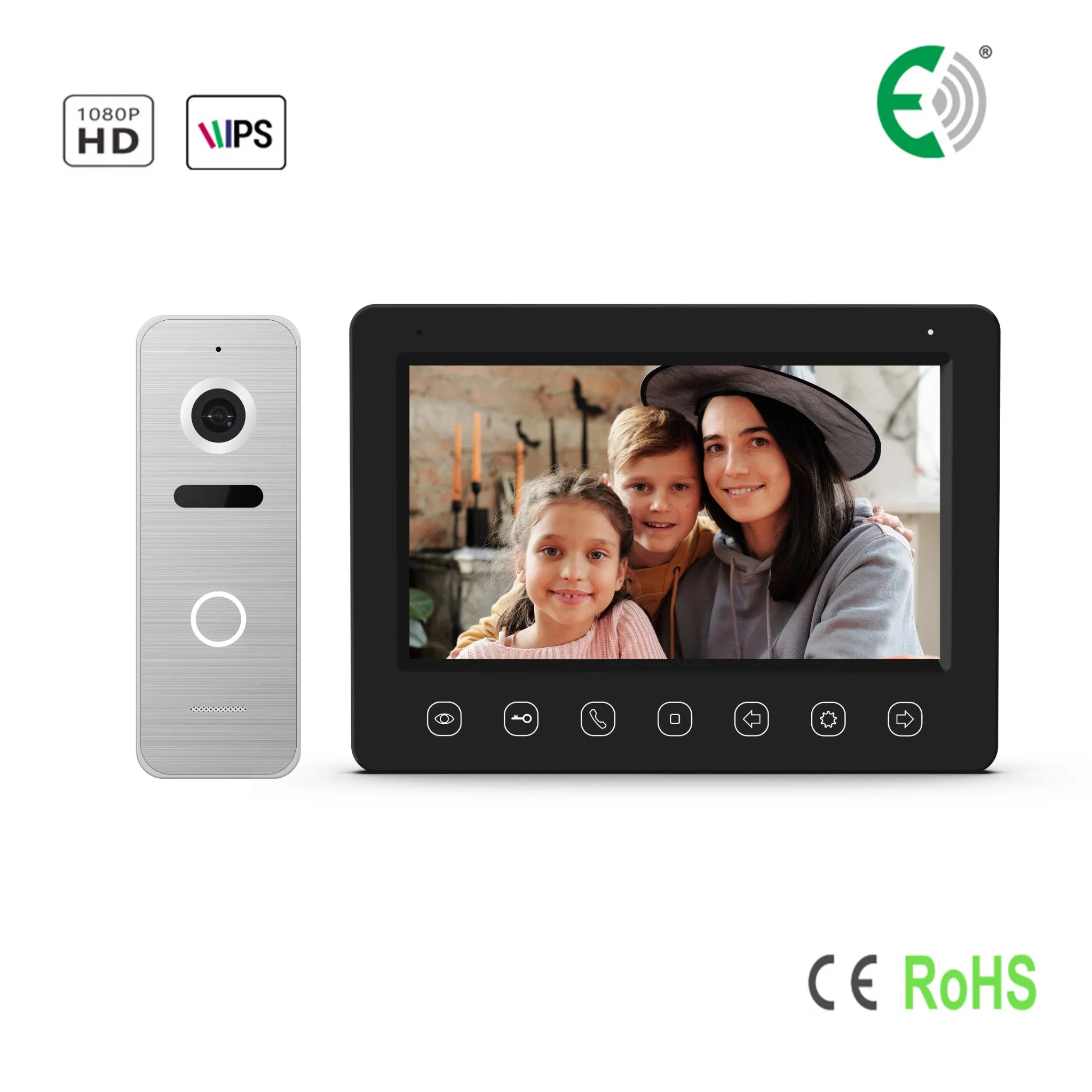

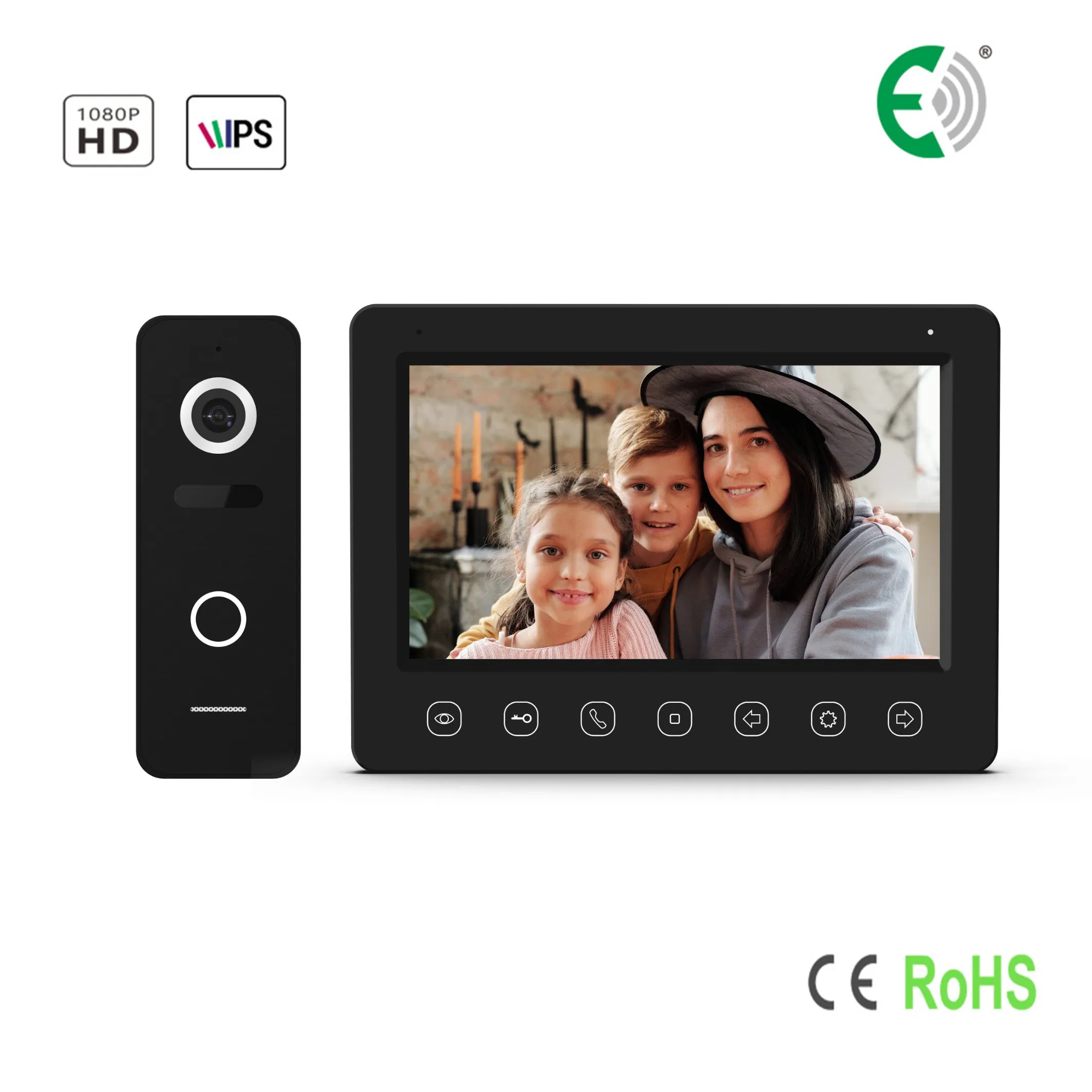

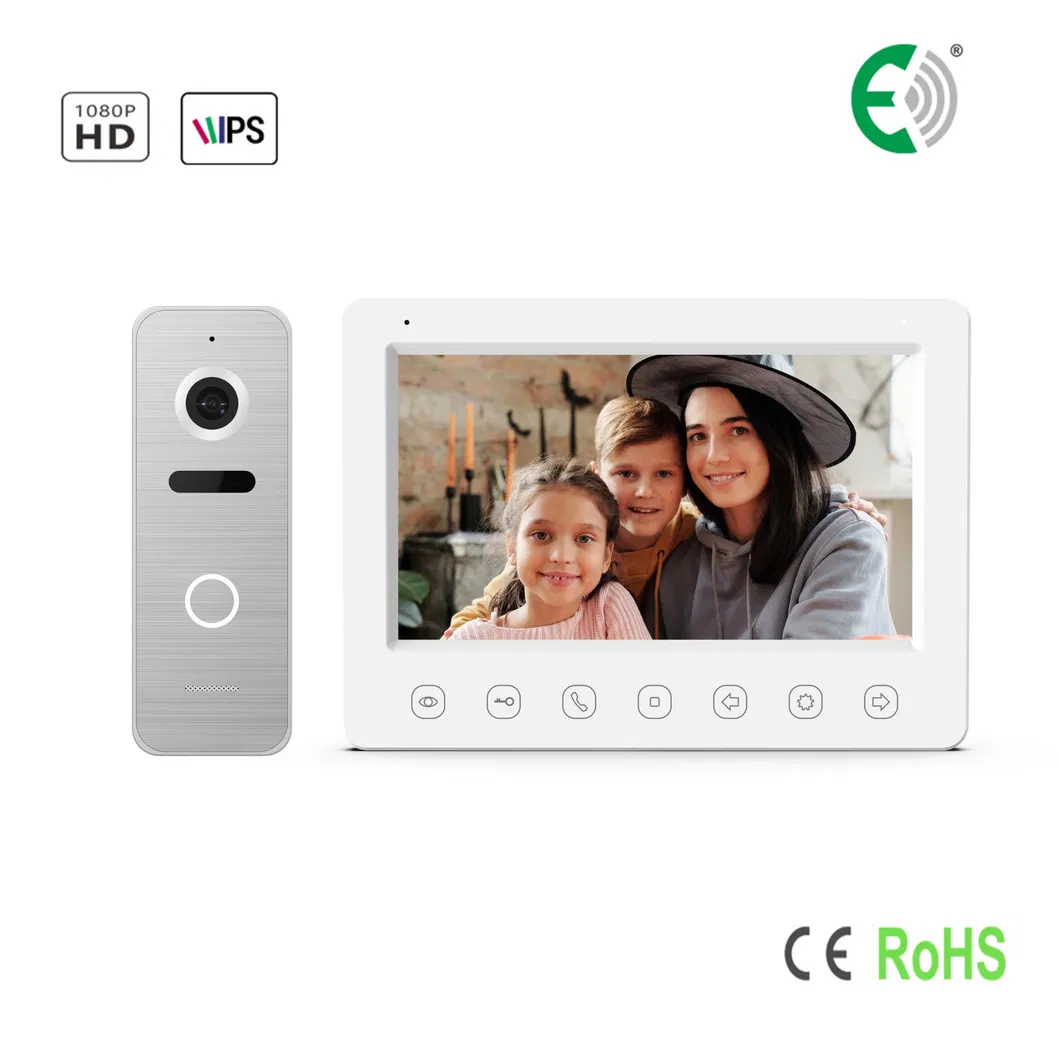

HD Memory Doorphone Home Security 7 Inches Video Door Phone Interphone
HD Memory Interphone Home Security 7 Inches Video Door Phone IntercomFeatures7" screen, 800x480 / 1024x600 (Optional)Signal support 800TVL / 1080P Signal formats support CVBS / AHD Hands free design, perfect intercom with clear voice The optional multi-language friendly interface 13 polyphonic ......
Send Inquiry
Product Description
HD Memory Interphone Home Security 7 Inches Video Door Phone Intercom
Specification
All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Features
7" screen, 800x480 / 1024x600 (Optional)
Signal support 800TVL / 1080P
Signal support 800TVL / 1080P
Signal formats support CVBS / AHD
Main functionHands free design, perfect intercom with clear voice
The optional multi-language friendly interface
13 polyphonic ring-tones switch freely
13 polyphonic ring-tones switch freely
Easy to operation
Hands free intercom, Lock control
Don't disturb function
Support micro SD card
Auto message leave
Video & audio recording
Simple DVR function with motion detection
Image capturing function
Multimedia function: Photo Frame, Music Playing
Support 2 Doorbells + 2 CCTVs + Monitors(up to 4)
Color, Brightness, Contrast, Volume and Display Mode adjustable
Real-time monitoring to Doorbells or CCTV camera
Intercom Call, Broadcast Function, Monitor Listening
Supports Door Panel unlock & Indoor Monitor unlock
Specification
| Screen | 7" screen |
TFT resolution | 800x480 / 1024x600 (Optioanl) |
Signal support | 800TVL / 1080P |
Signal formats | CVBS / AHD |
Support cloud services | Optional skybox support |
Power supply | AC100-240V 50/60Hz / DC15V/0.8A |
Power consumption | 9W(Max), 2.5W(Standby) |
Power output voltage | 14±1V |
Power output current | ≤350mA |
Audio standby and call output voltage | 5V±1V |
Audio line call detection voltage range | 0-2V |
Operation temperature | 0ºC to +40ºC |
Operation humidity | 0% - 95% |
Connection | 4 wires |
Weight | 422g(AC100-240V) / 332g(DC15V/0.8A) |
Dimension | 188x136x22mm |
All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
