Doorbell Home Security 4.3" Video Door Phone Memory Interphone
Doorbell Home Security 4.3" Video Door Phone Memory InterphoneDescription:-Monitors:1. 4.3 inch color TFT digital screen with PC face2. Hands free3. Touch buttons4. Surface-mounted5. External power adapter6. 4 Wires / Cat-5 or Cat-6 connection7. Supports 4 video channels8. Supports maximum leng......
Send Inquiry
Product Description
Doorbell Home Security 4.3" Video Door Phone Memory Interphone
Description:-

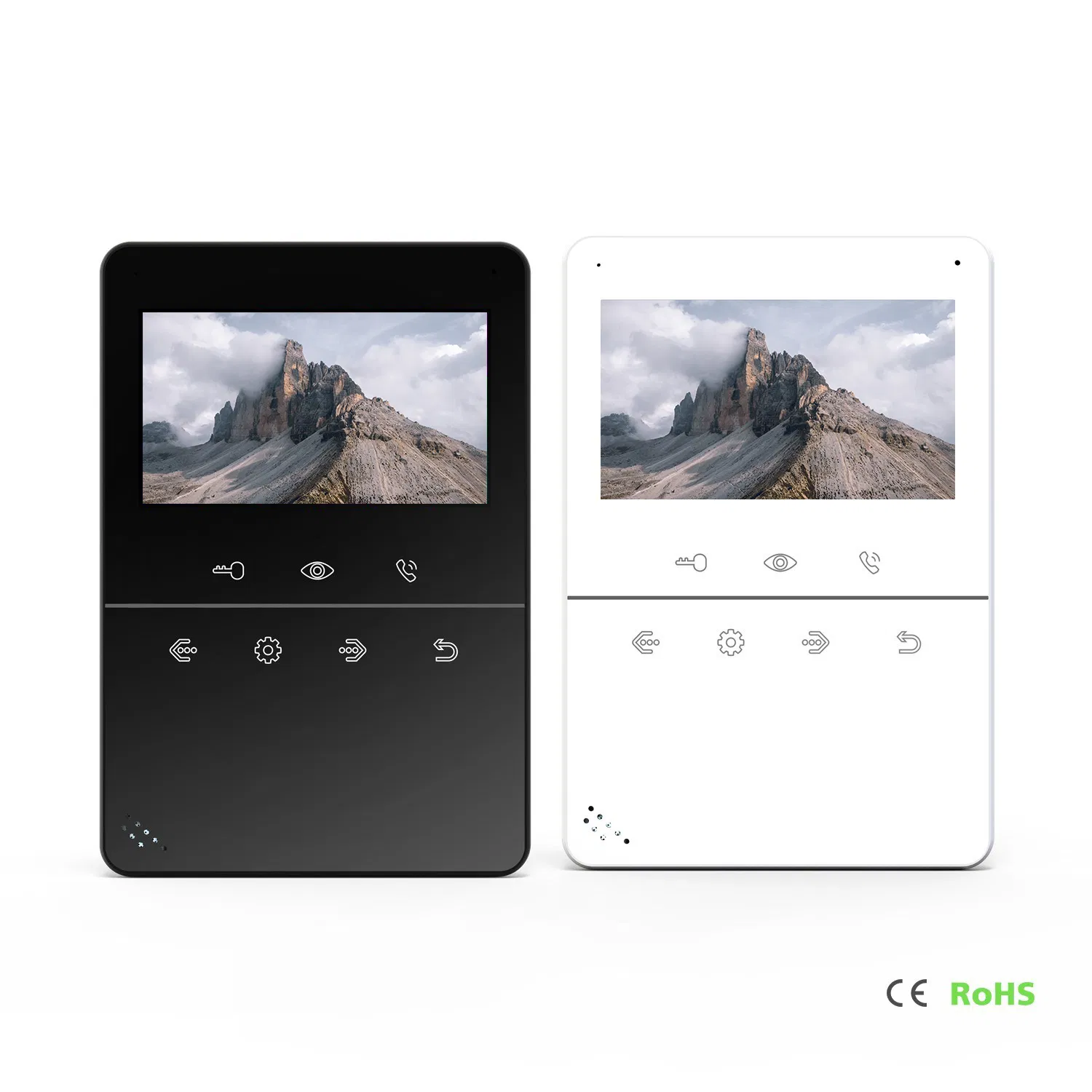

Monitors:
1. 4.3 inch color TFT digital screen with PC face
2. Hands free
3. Touch buttons
4. Surface-mounted
5. External power adapter
6. 4 Wires / Cat-5 or Cat-6 connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply: DC15V / 0.8A
10.Power consumption: 9W(Max),1.3W(standby)
11. TFT resolution: 480*272pixels
12. Dimension: 170*116*16mm

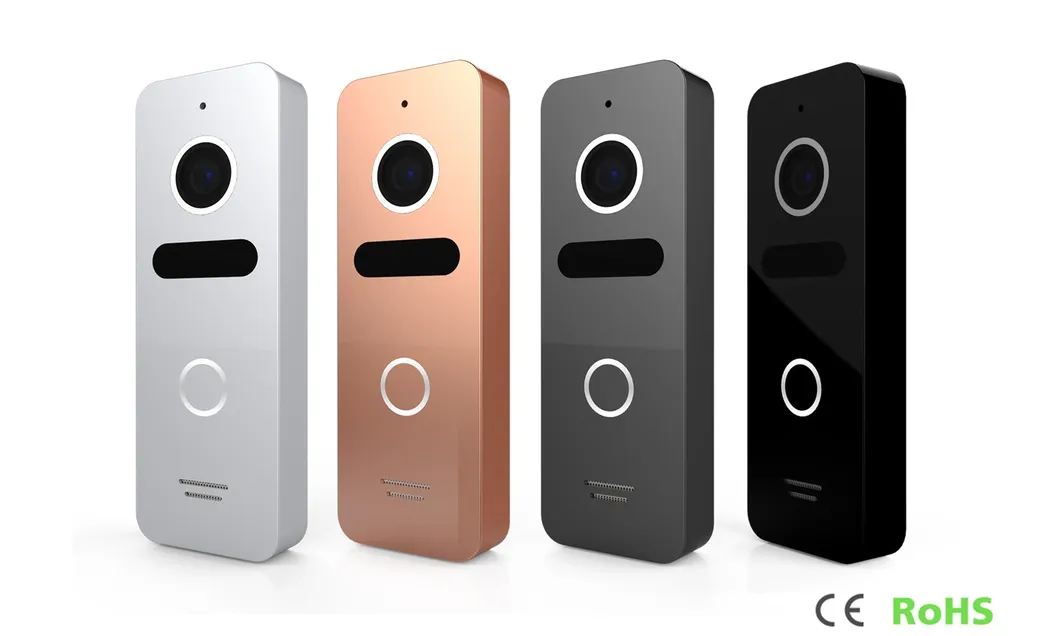

Doorbells:-
1. 1/4 High-Definition color camera
2. 800TVL Resolution.
3. With night vision
4. Metal case
5. 100° View angle.
6. Protection Standard: IP66.
7. 4 wires connection
8. Surface / 30° angled mounting
9 Supports lock control
10. Operating temperature: - 30 ºC to + 60ºC
11. Power: 10 - 15V
12.Dimension: 132*46*16mm
Functions:-
Monitors:
1. Lock control / Broadcast / Calendar / Alarm clock
2. Capture& record about 100 images with internal flash
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. Monitor listening to another monitor
6. DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10 Can manual take pictures or record videos from doorbell, even you are talking with visitor.
11.Multimedia manager
12.Photo frame

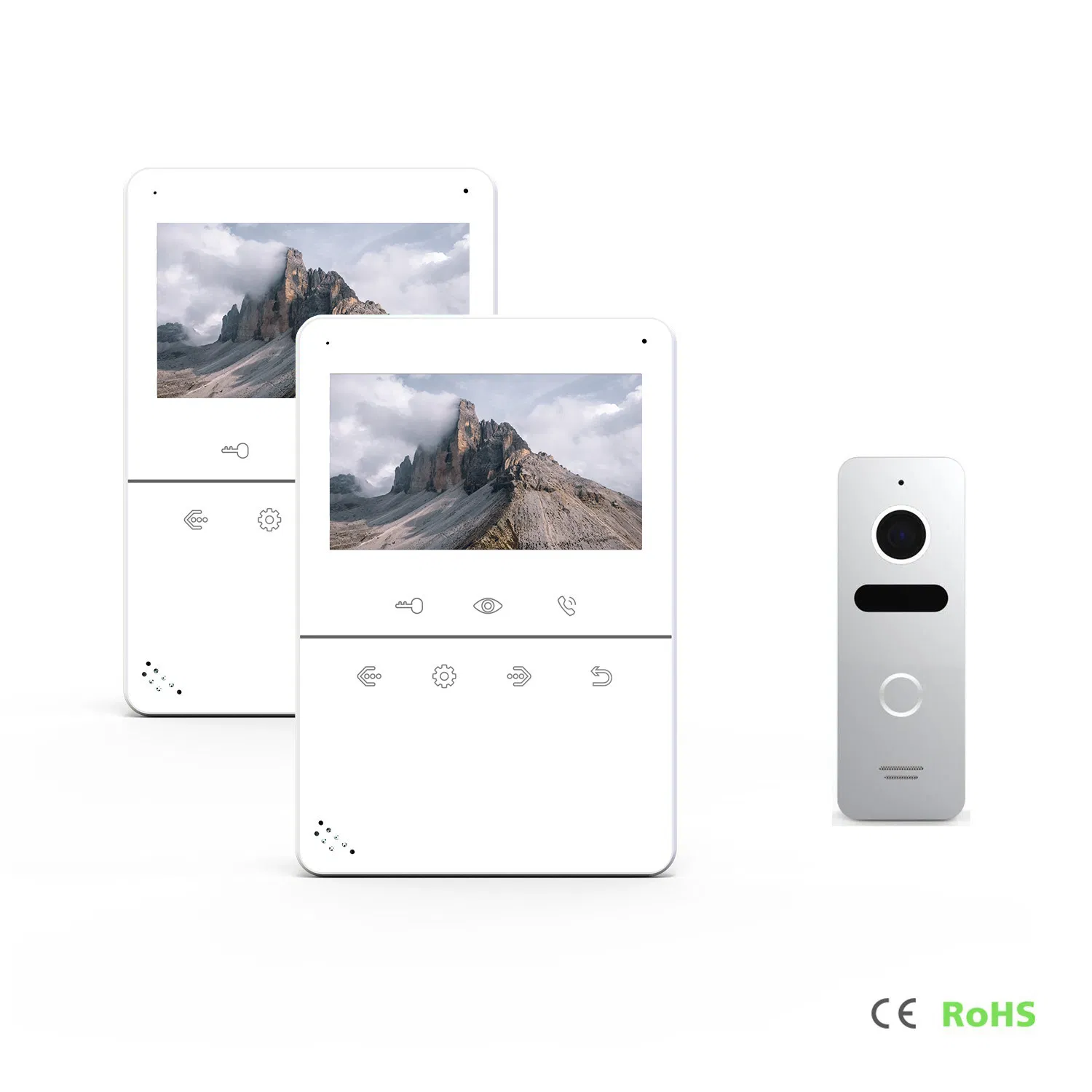

Max. supports:

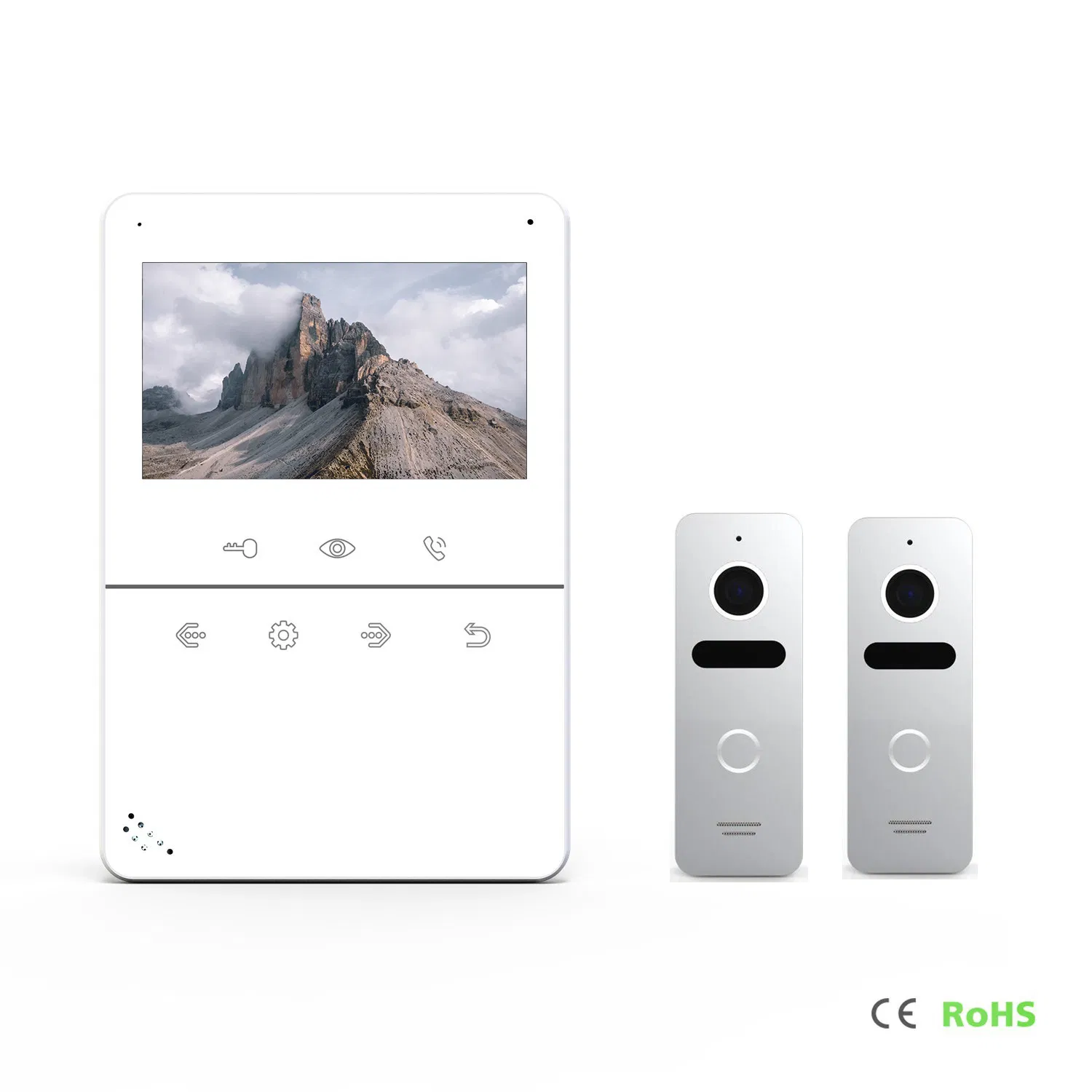

1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
Doorbells:-
1). Surface/corner construction
2). Supports lock control
Specification:-
Monitors:
Doorbells:
All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Description:-
Monitors:
1. 4.3 inch color TFT digital screen with PC face
2. Hands free
3. Touch buttons
4. Surface-mounted
5. External power adapter
6. 4 Wires / Cat-5 or Cat-6 connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply: DC15V / 0.8A
10.Power consumption: 9W(Max),1.3W(standby)
11. TFT resolution: 480*272pixels
12. Dimension: 170*116*16mm
Doorbells:-
1. 1/4 High-Definition color camera
2. 800TVL Resolution.
3. With night vision
4. Metal case
5. 100° View angle.
6. Protection Standard: IP66.
7. 4 wires connection
8. Surface / 30° angled mounting
9 Supports lock control
10. Operating temperature: - 30 ºC to + 60ºC
11. Power: 10 - 15V
12.Dimension: 132*46*16mm
Functions:-
Monitors:
1. Lock control / Broadcast / Calendar / Alarm clock
2. Capture& record about 100 images with internal flash
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. Monitor listening to another monitor
6. DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10 Can manual take pictures or record videos from doorbell, even you are talking with visitor.
11.Multimedia manager
12.Photo frame
Max. supports:
1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
Doorbells:-
1). Surface/corner construction
2). Supports lock control
Specification:-
Monitors:
| Screen | Color TFT digital screen with PC face |
| Screen size | 4. 3'' |
| Outdoor panel unlock release | Supports |
| Indoor monitor unlock release | Supports |
| Connection | 4 Wires / Cat-5 |
| Maximum length of line connection | 100m |
| Video channels quantity | 4 |
| Additional monitors quantity | 3 |
| Memory block connection | Built in card-reader for micro SD card |
| Image capture | Supports |
| Video and audio capture | Supports |
| Power | DC15V / 0.8A |
| Dimension | 170*116*16mm |
Doorbells:
| Subscribers quantity | 1 |
| Camera | 1/4'' Color CMOS |
| Angle of view | 100° |
| Protection Standard | IP66 |
| Resolution | 800TVL |
| Construction | Surface / 30° angled mounting |
| Operating temperature | - 30 ºC to + 60ºC |
| Connection | 4 wires |
| Lock control | Supports |
| Power | DC10-15V |
| Dimension | 132*46*16mm |
All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
