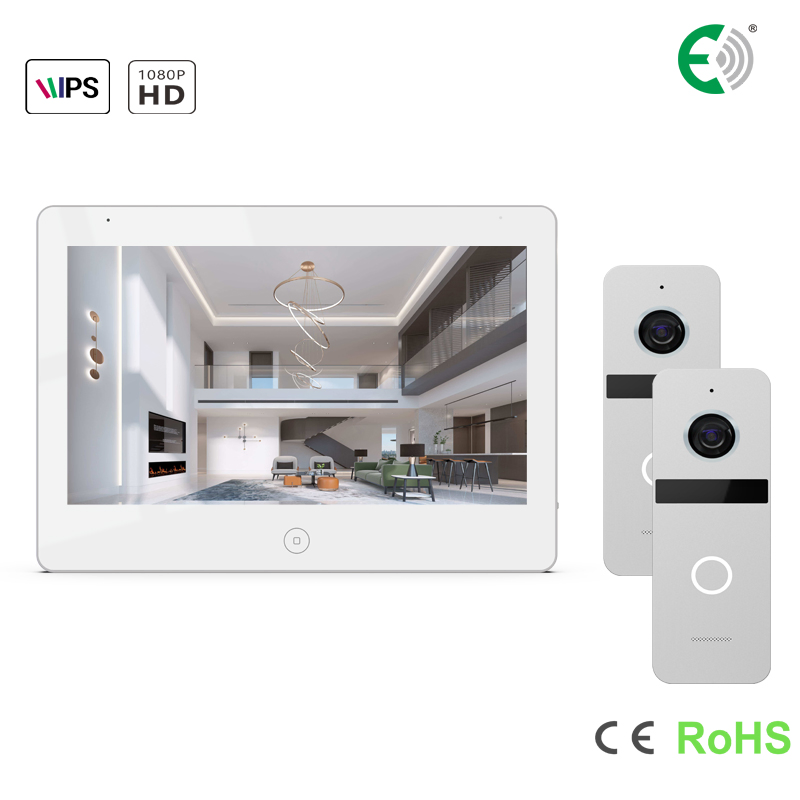

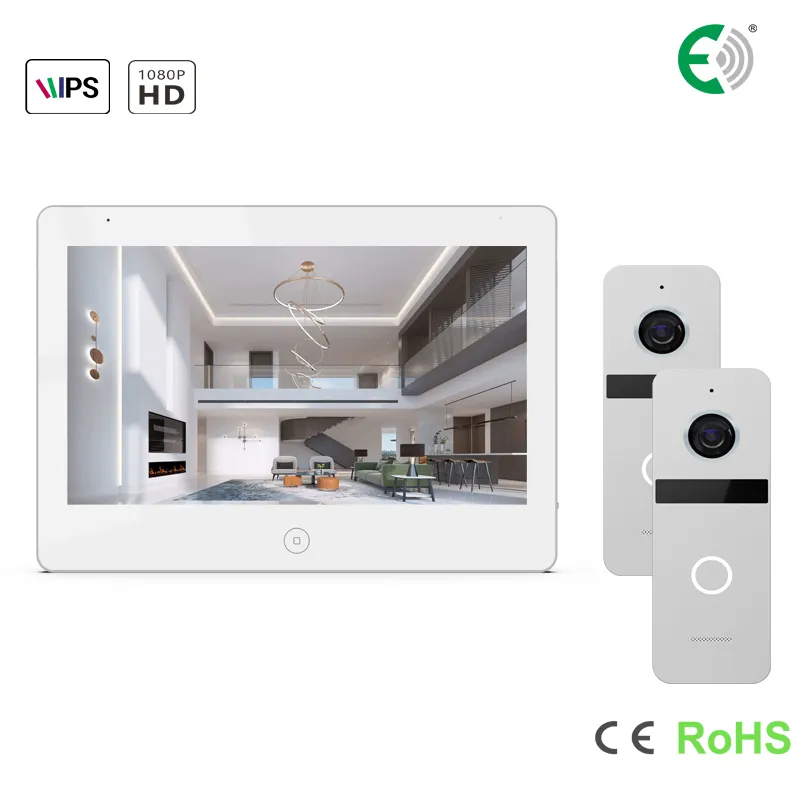

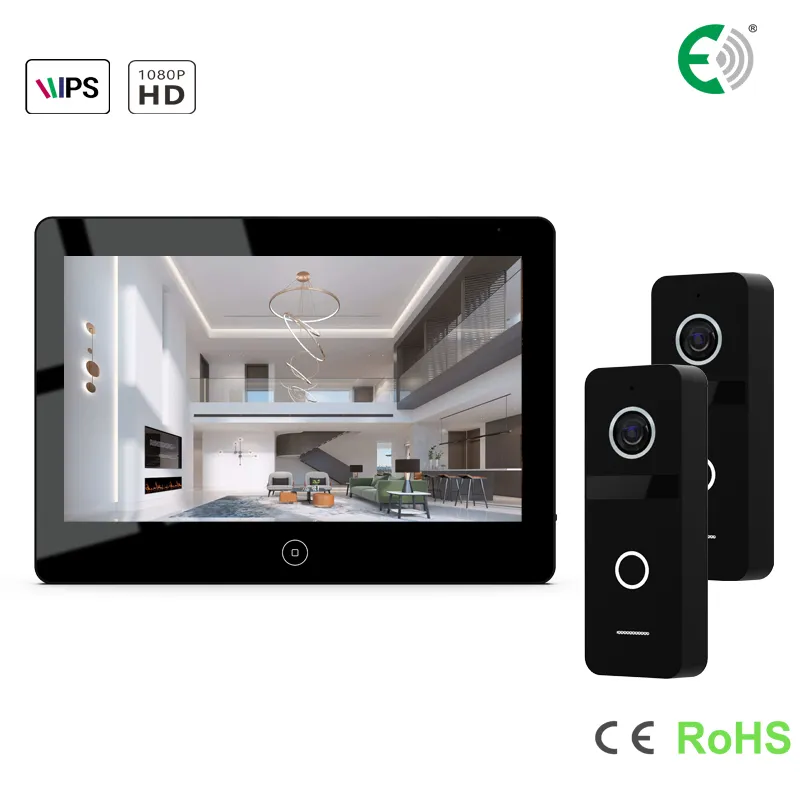

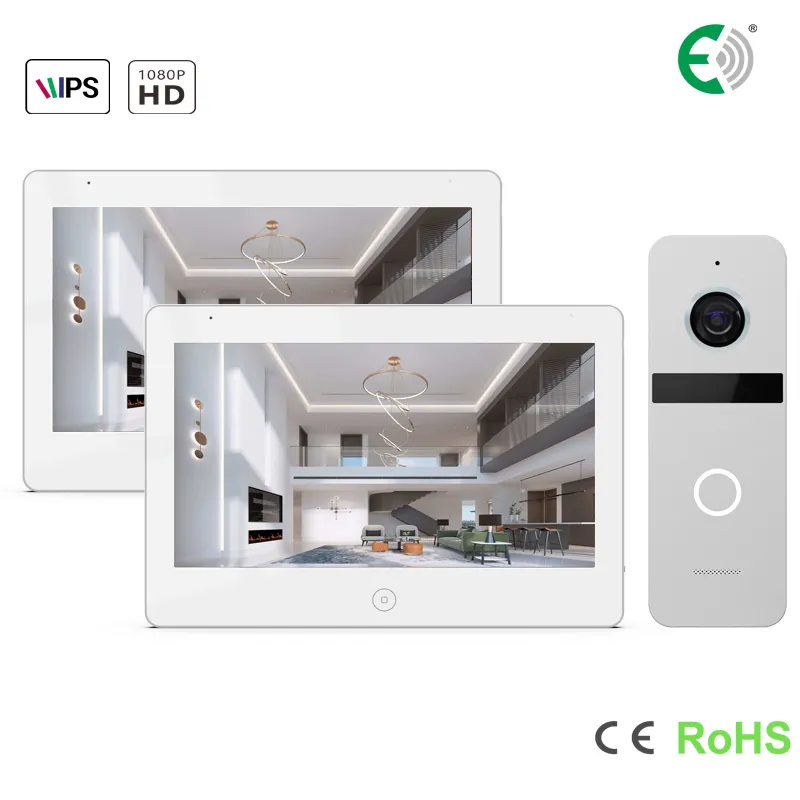

HD 10.1' Touch Screen Intercom Interphone Home Security Video Door Phone

HD 10.1' Touch Screen Intercom Interphone Home Security Video Door Phone





Description:-

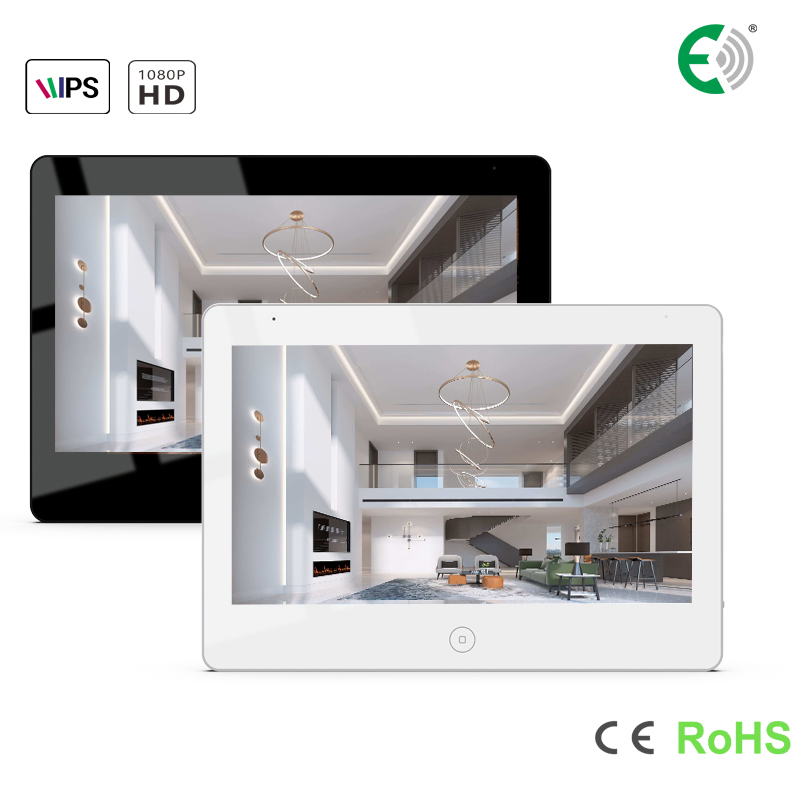

Monitors:
1. 10.1 inch color TFT digital screen
2. Hands free
3. Touch Screen with a touch button
4. Surface-mounted
5. External adapter
6. 4 Wires / Cat-5 or Cat-6 connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply: AC100-240V / DC15V, 0.8A (Optional)
10.Power consumption: 9W(Max),1.3W(standby)
11. TFT resolution: 1024*600
12. Dimension:  255*180*21mm


Doorbells:-
1. 1/3" High-Definition color camera
2. Resolution: 800TVL/ 1080P(Optional)
3. With night vision
4. Metal case
5. 100° / 155° View angle (Optional).
6. Protection Standard: IP66.
7. 4 wires connection
8. Surface / 30° angled mounting
9 Supports lock control
10. Operating temperature:  - 30 ºC to + 60ºC
11. Power: 10 - 15V
12.Dimension: 133*46*20mm


Functions:-
Monitors:
1. Lock control / Broadcast / Calendar / Alarm clock
2. Capture over 100pcs images with internal flash
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. Monitor listening to another monitor
6. DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10 Can take Images or record video from doorbell, even you are talking with visitor
11.Multimedia manager
12.Photo frame
13.Outdoor panel unlock release
14.Indoor monitor unlock release
Type of signal: CVBS/AHD(up to 1080P)

Max. supports:
1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

Doorbells:-
1). Surface/corner construction
2). Supports lock control



Specification:-
Monitors:
Doorbells:

All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality.

website: eeguard.en.made-in-china.com





FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.

Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.

Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.


Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.

Q: What's your warranty for your products?
E: 2 years after the shipment.
