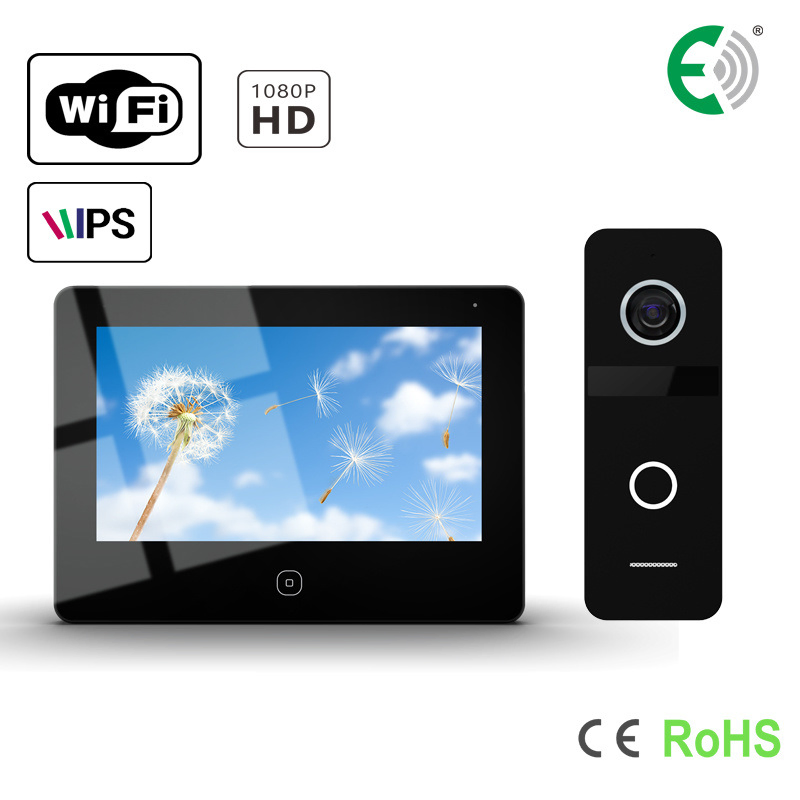

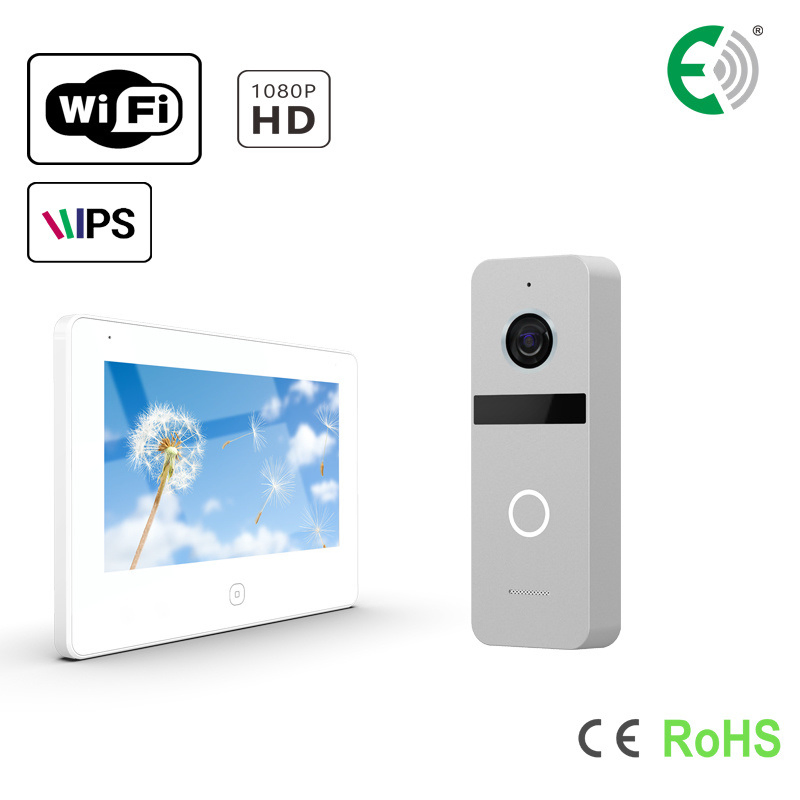

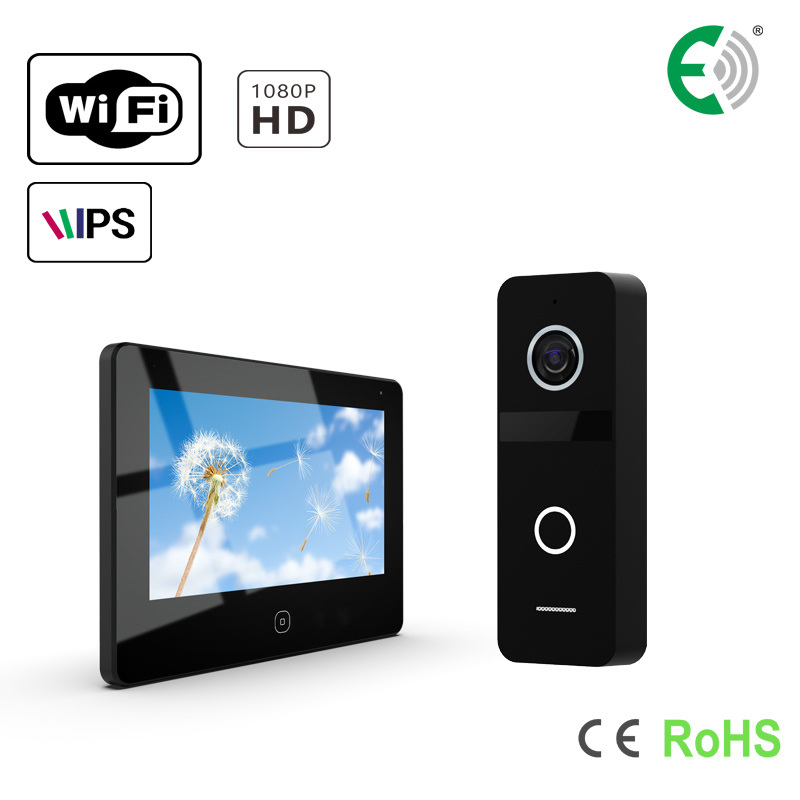

HD 7 Inches Home Security Video Doorphone Interphone Intercom Doorbell
HD Memory 7 Inches Home Security Video Doorphone InterphoneDescription:Features:1.7" Touch Screen HD display 1024x6002.Signal support 800TVL / 720P / 1080P3.Signal formats support CVBS / AHD / TVI / CVI4.13 polyphonic ring-tones switch freely5.With TUYA APP control6.10/100Mbps Ethernet, Wi-Fi 8......
Send Inquiry
Product Description
HD Memory 7 Inches Home Security Video Doorphone Interphone
Description:
2.Signal support 800TVL / 720P / 1080P
3.Signal formats support CVBS / AHD / TVI / CVI
4.13 polyphonic ring-tones switch freely
5.With TUYA APP control
6.10/100Mbps Ethernet, Wi-Fi 802.11b/g/n
Doorbells:-
Specification:-
Monitors:
Doorbells:
All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Description:Features:
1.7" Touch Screen HD display 1024x6002.Signal support 800TVL / 720P / 1080P
3.Signal formats support CVBS / AHD / TVI / CVI
4.13 polyphonic ring-tones switch freely
5.With TUYA APP control
6.10/100Mbps Ethernet, Wi-Fi 802.11b/g/n
7.Two-way talk
8.Easy to operation
9.Connection :4 wires
10.Dimension :188x136x22mm
9.Connection :4 wires
10.Dimension :188x136x22mm
Main function:
1.Hands free intercom, Lock control
2.Don't disturb function
3.Support micro SD card
4.Auto message leave
5.Video & audio recording
6.Simple DVR function with motion detection
7.Image capturing function
8.Multimedia function: Photo Frame, Music Playing
9.Support 2 Doorbells + 2 CCTVs + Monitors(up to 4)
10.Color, Brightness, Contrast, Volume and Display Mode adjustable
11.Real-time monitoring to Doorbells or CCTV camera
12.Intercom Call, Broadcast Function, Monitor Listening
13.Supports Door Panel unlock & Indoor Monitor unlock
Doorbells:-
1.Surface/Corner mounting
2.Zinc alloy housing
3.Resolution: 800 TVL/1080P (Optional)
4.Type of signal: AHD/CVBS/CVI/TVI (Optional)
5.Waterproof IP66
6.Working temperature: -30ºC to +60ºC
7.Dimension: 131x46x20mm
8.Wide viewing angle
9.1Vp-p75Ω video output
10.Power voltage DC 10-15V
11.Power consumption 2.5W
12.Anti-sabotage
Specification:-
Monitors:
NO. | ITEMS | CONTENT |
1 | Screen | 7" touch screen |
2 | TFT resolution | 1024x600 |
3 | Signal support | 800TVL / 720P / 1080P |
4 | Signal formats | CVBS / AHD / TVI / CVI (Optional) |
5 | WIFI frequency | 2.4GHz |
6 | Network Interface | 10M / 100M self-adaption |
7 | IEEE Standards | IEEE 802.11b/g/n |
8 | Power supply | AC100-240V 50/60Hz / DC15V/0.8A |
9 | Power consumption | 12W(Max), 4.5W(Standby) |
10 | Operation temperature | 0ºC to +40ºC |
11 | Operation humidity | 0%-95% |
12 | Connection | 4 wires |
13 | Weight | 466g(AC100-240V) / 376g(DC15V/0.8A) |
14 | Dimension | 188x136x22mm |
Doorbells:
| Subscribers quantity | 1 |
| Camera | 1/3'' Color CMOS |
| Angle of view | 100° / 155° (Optional). |
| Protection Standard | IP66 |
| Type of signal | CVBS / AHD |
| Resolution | 800TVL/1080P(Optional) |
| Construction | Surface / 30° angled mounting |
| Operating temperature | - 30 ºC to + 60ºC |
| Connection | 4 wires |
| Lock control | Supports |
| Power | DC10-15V |
| Dimension | 131x46x20mm |
All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
